Air Door Actuator / Motor: Service and Repair

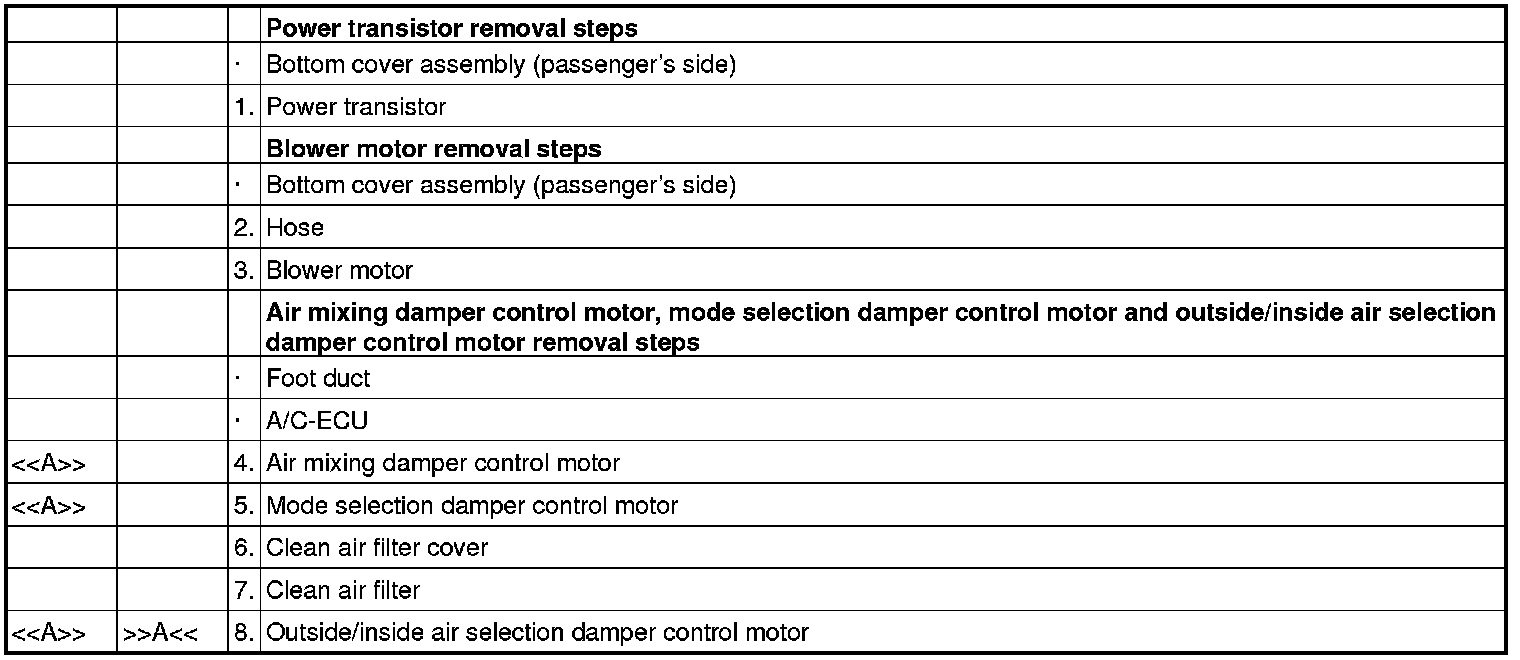

REMOVAL AND INSTALLATION









REMOVAL SERVICE POINT

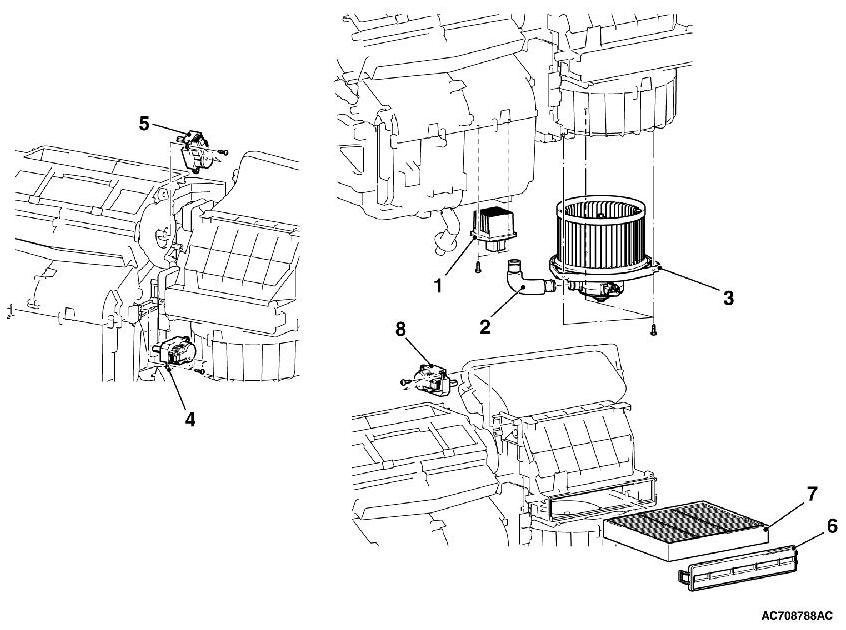

[[A]] AIR MIXING DAMPER CONTROL MOTOR, OUTSIDE/INSIDE AIR SELECTION DAMPER CONTROL MOTOR, MODE SELECTION DAMPER CONTROL MOTOR REMOVAL





NOTE:

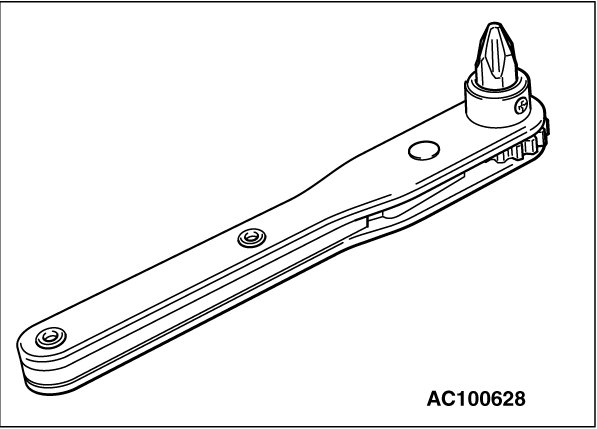

A normal plate-type ratchet driver is recommended.

INSTALLATION SERVICE POINT

]]A[[ OUTSIDE/INSIDE AIR SELECTION DAMPER CONTROL MOTOR INSTALLATION

Install the outside/inside air selection damper control motor while pressing the outside/inside air selection damper from the hole of the blower motor.
