Throttle Body Removal and Installation

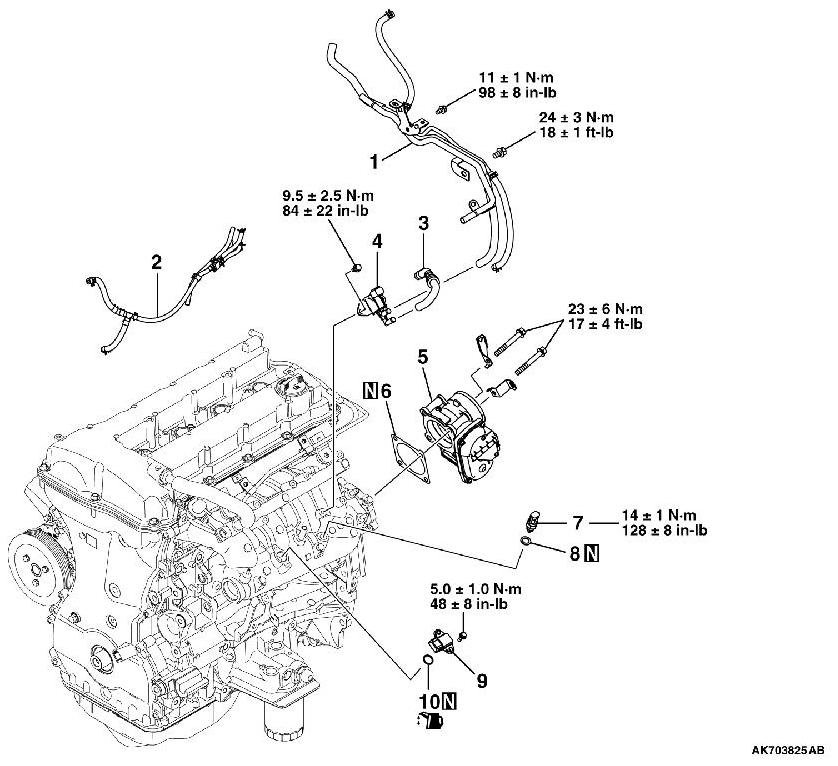

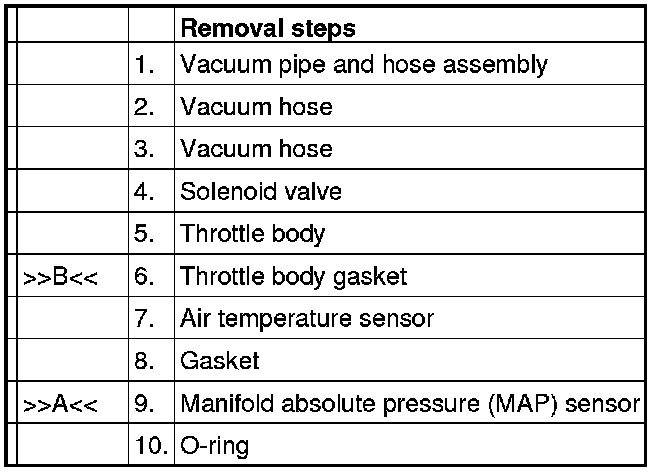

REMOVAL AND INSTALLATION









INSTALLATION SERVICE POINTS

]]A[[
MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSTALLATION

CAUTION:

- Install the manifold absolute pressure (MAP) sensor, taking care not to give a shock to it.

- Do not use a manifold absolute pressure (MAP) sensor that has been dropped.

]]B[[
THROTTLE BODY GASKET INSTALLATION

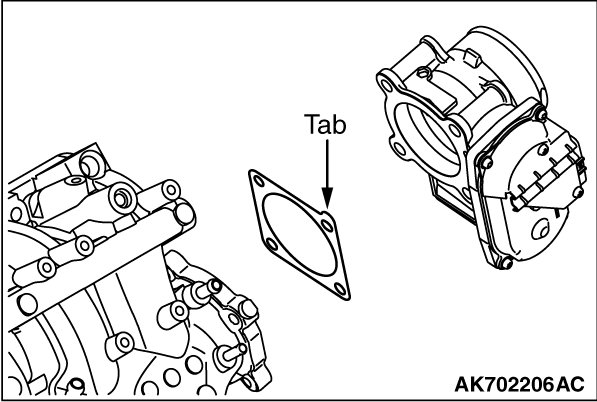

Install a new gasket so that the tab is positioned as shown in the illustration.
