Inspection




INSPECTION

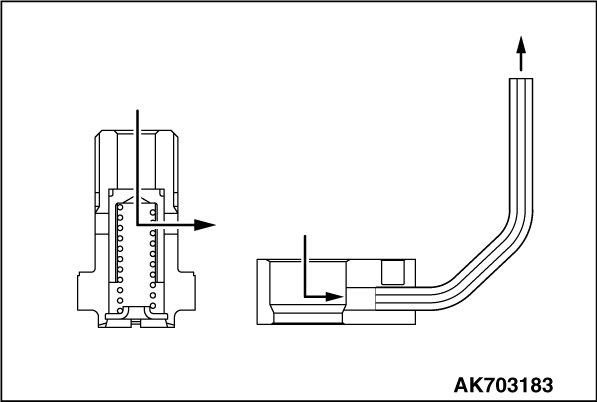

OIL JET





1. Check the oil jet and check valve for clogging
2. Check the oil jet for damage and deformation
