Fan Control Relay Continuity Check




COOLING FAN RELAY CONTINUITY CHECK [2.0L ENGINE TURBO]

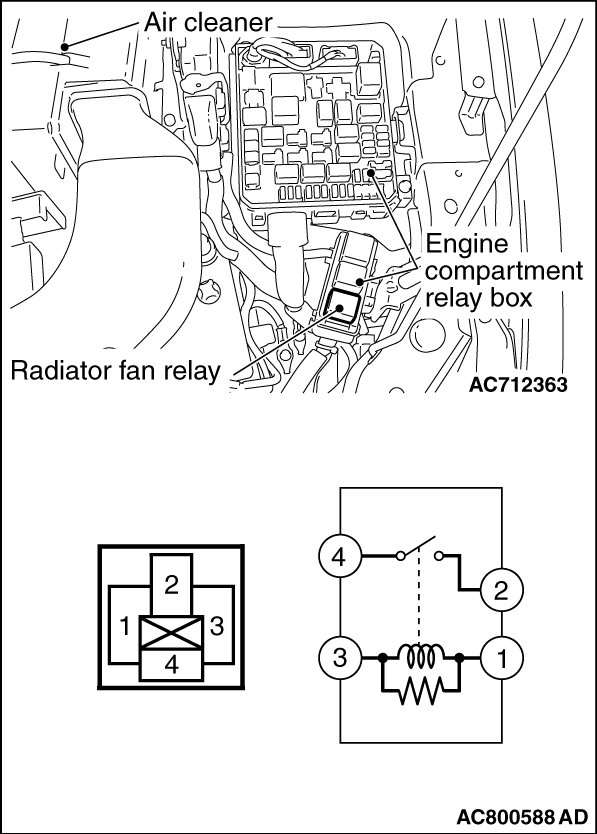

RADIATOR FAN RELAY CHECK

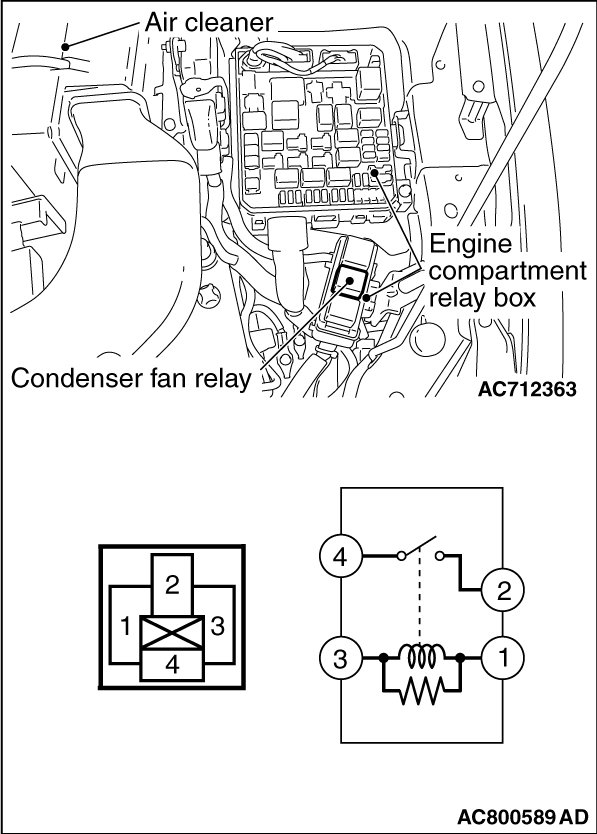

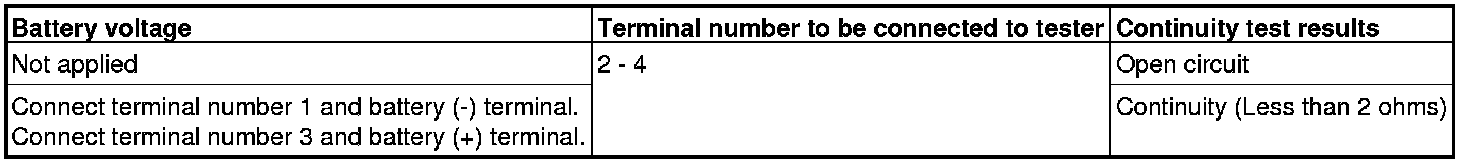

CONDENSER FAN RELAY CHECK

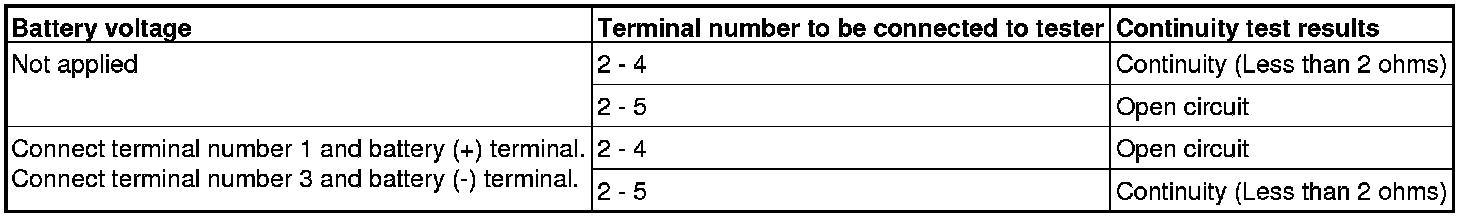

FAN CONTROL RELAY CHECK
