Radiator: Service and Repair

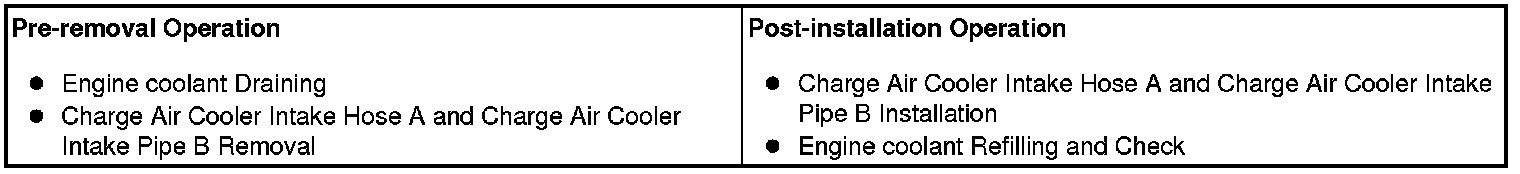

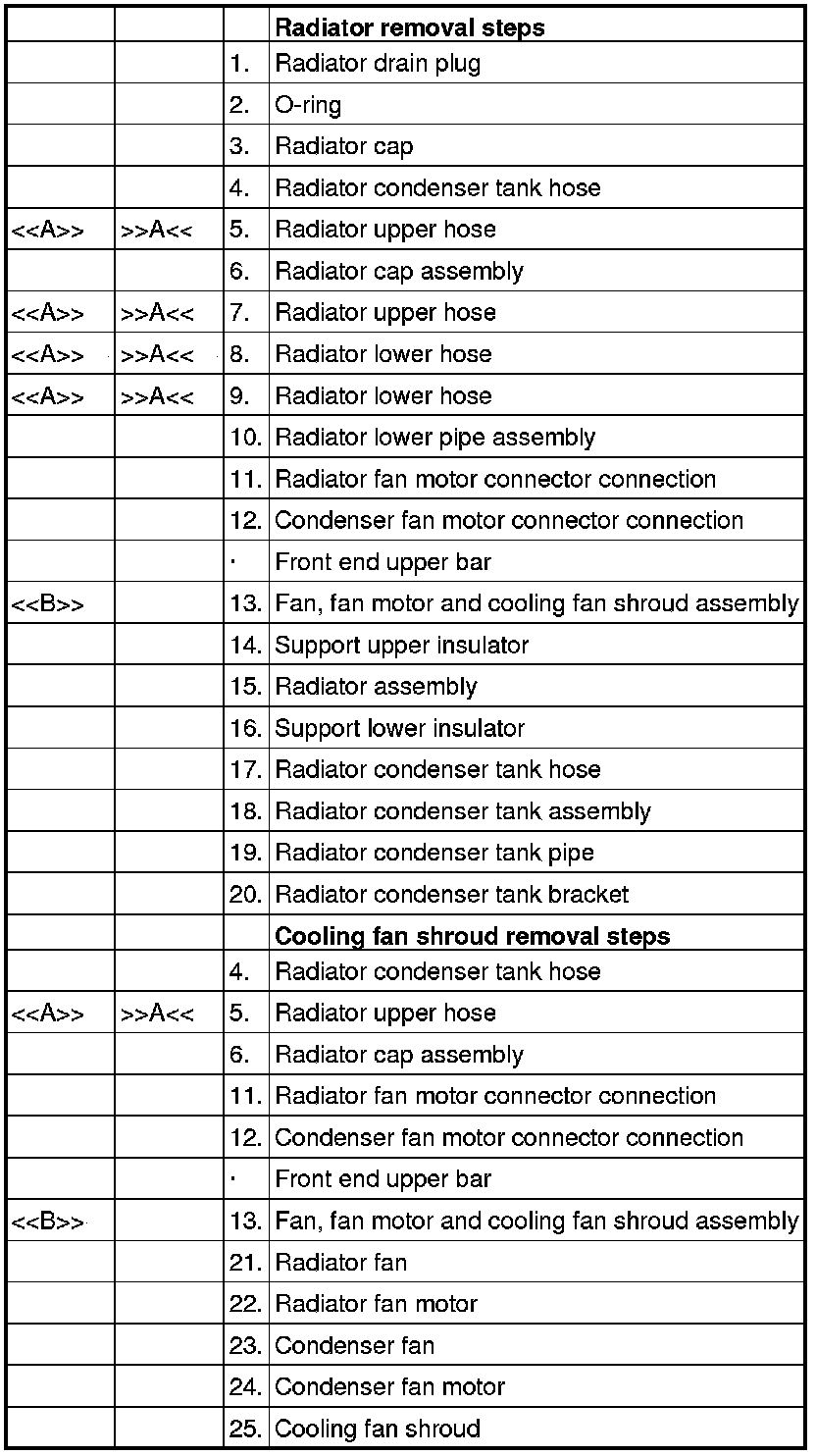

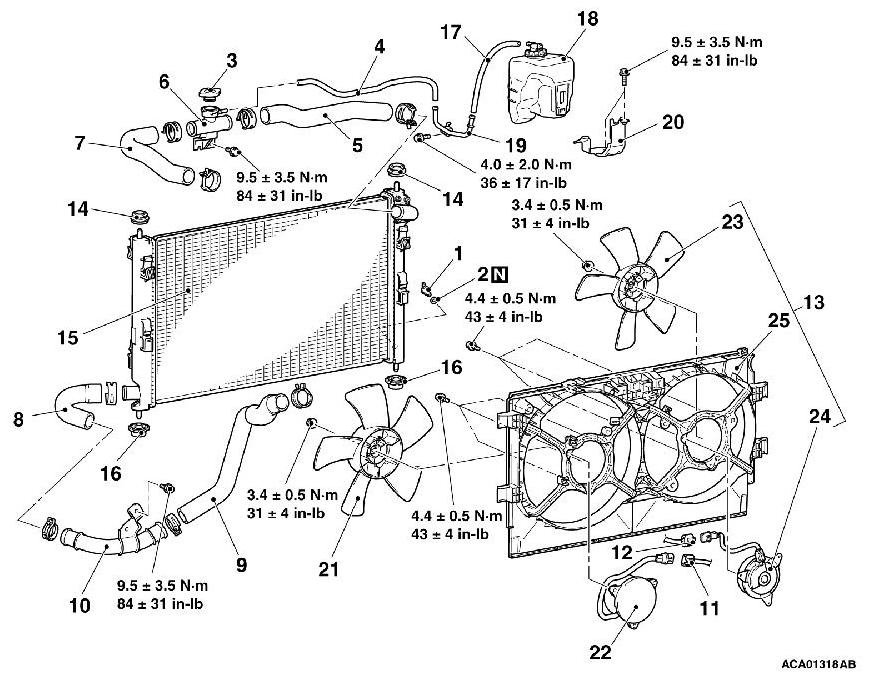

REMOVAL AND INSTALLATION [2.0L ENGINE TURBO]













REMOVAL SERVICE POINTS

[[A]] RADIATOR UPPER HOSE/RADIATOR LOWER HOSE REMOVAL





Make mating marks on the radiator hose and the hose clamp as shown to install them in the original position. Then, remove them.

[[B]] FAN, FAN MOTOR AND COOLING FAN SHROUD ASSEMBLY REMOVAL

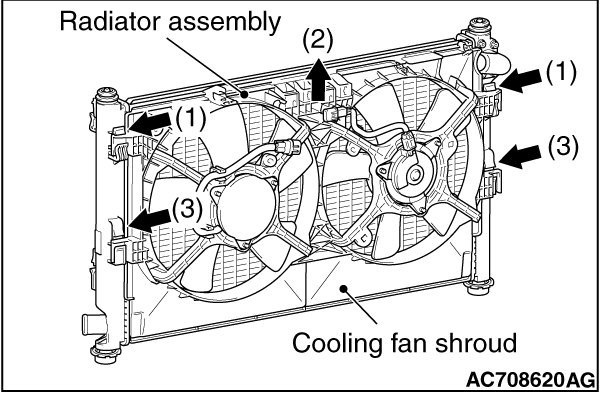

Remove the fan, fan motor and cooling fan shroud assembly from the radiator assembly according to the following procedure.
1. Release the upper locks of the radiator assembly from the fan, fan motor and cooling fan shroud assembly.
2. Slightly raise the fan, fan motor and cooling fan shroud assembly.
3. Release the lower locks of the radiator assembly from the fan, fan motor and cooling fan shroud assembly, and remove the fan, fan motor and cooling fan shroud assembly from the radiator assembly.

INSTALLATION SERVICE POINT

]]A[[ RADIATOR LOWER HOSE/RADIATOR UPPER HOSE INSTALLATION





1. Insert radiator hose as far as the projection of the cooling water inlet hose fitting, cooling water outlet hose fitting or radiator.
2. Align the mating marks on the radiator hose and hose clamp, and then connect the radiator hose.
