Side Structure Reinforcement

Side Body

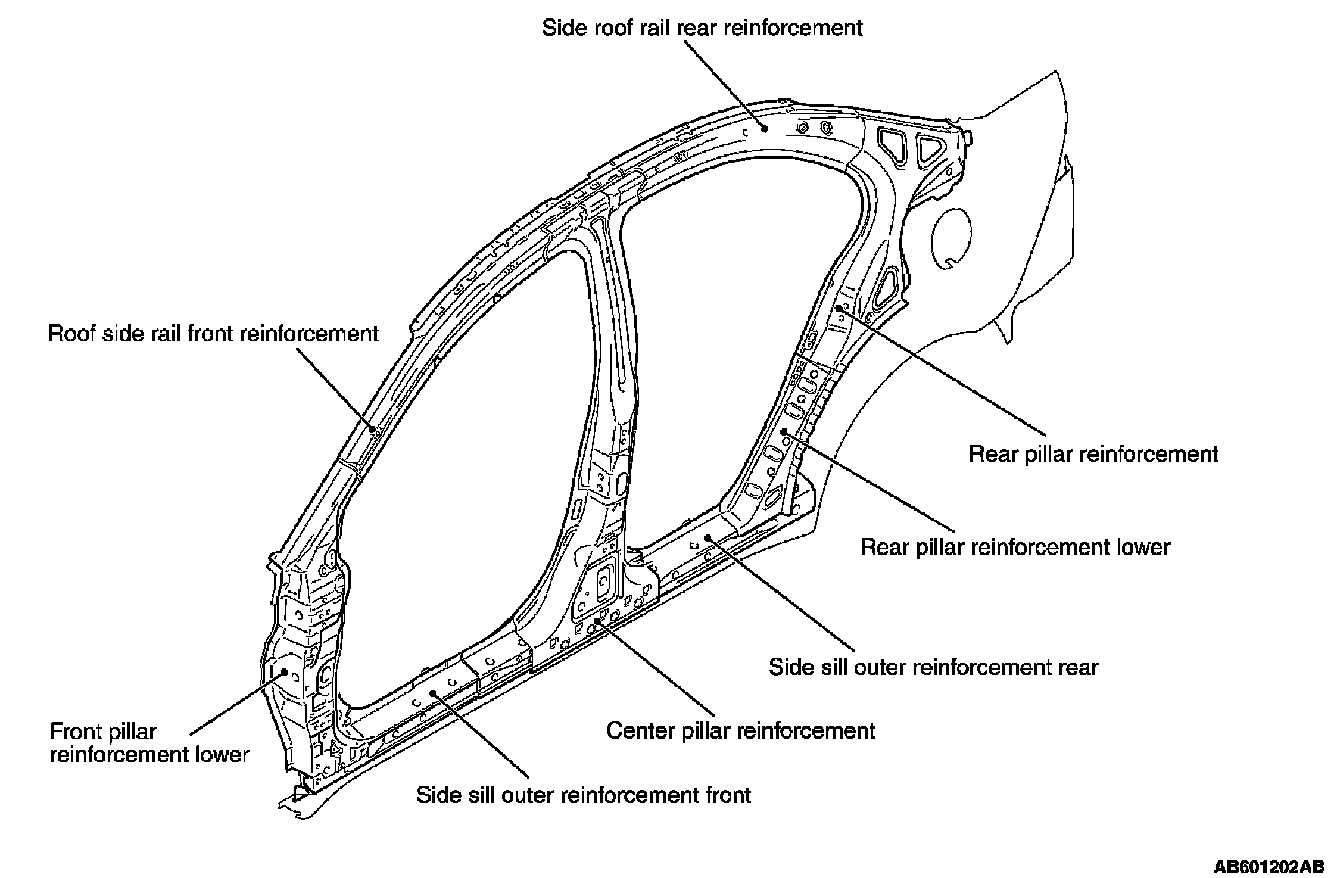

Side Structure Reinforcement

The ring structure of the side structure reinforcement has been adopted to improve the collision characteristics and the rigidity of the whole vehicle.
