Side Structure

Side Body

Side Structure

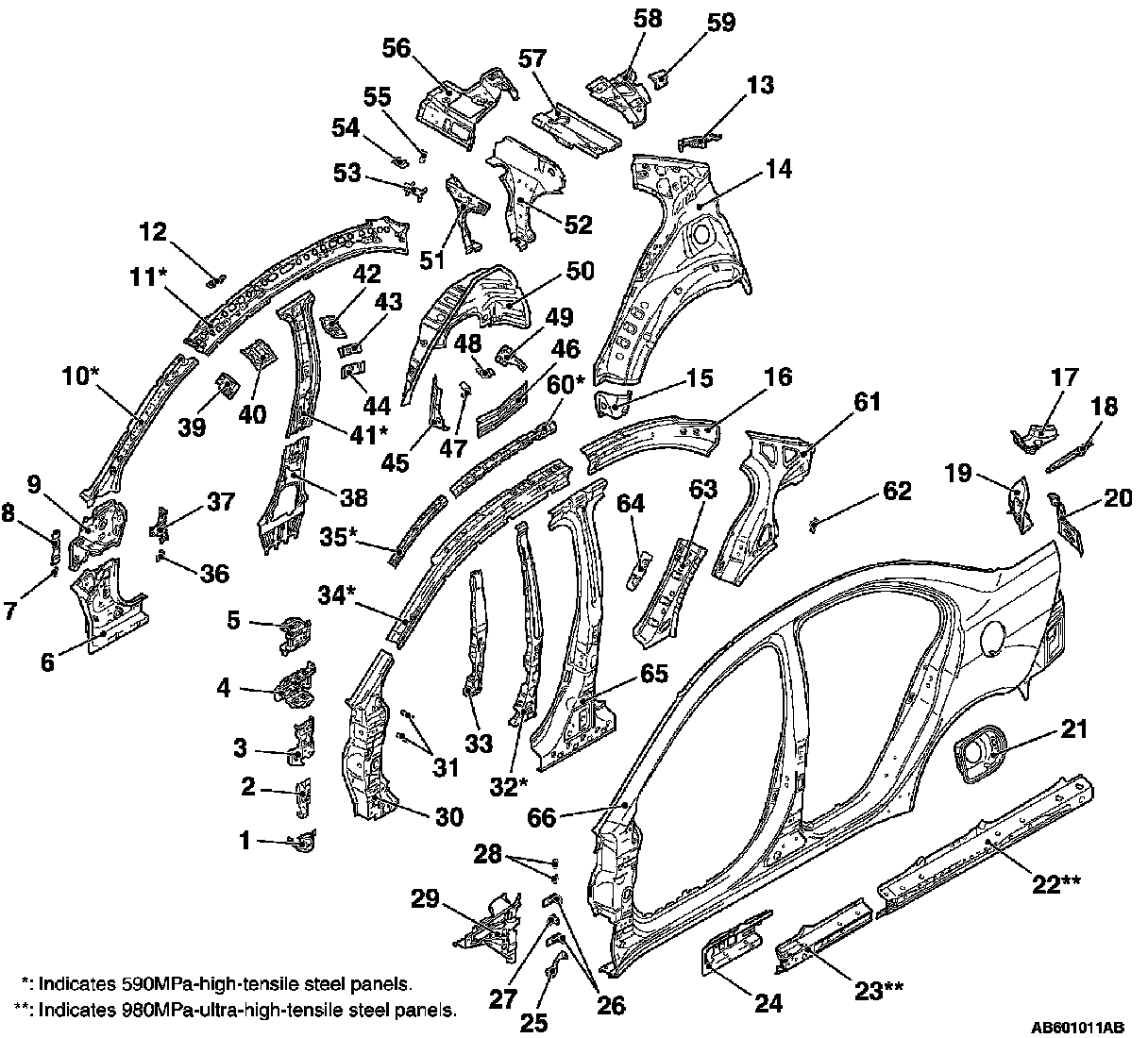

The 590-MPa class high tensile strength steel panels or 980-MPa class ultra high tensile strength steel panels have been adopted for the front pillar, center pillar, side sill, and roof side rail to improve the body rigidity.






1. Front pillar outer extension lower
2. Front pillar outer extension upper
3. Front door hinge reinforcement lower
4. Front pillar reinforcement center bulkhead
5. Front door hinge reinforcement upper
6. Front pillar inner lower
7. Harness bracket
8. Deck crossmember bracket (Right side)
9. Front pillar inner center
10. Front pillar inner upper
11. Roof side rail inner
12. Bracket C
13. Curtain air bag bracket
14. Quarter inner panel
15. Quarter inner extension front
16. Roof side rail reinforcement rear
17. Quarter outer upper extension
18. Quarter outer upper side extension
19. Rear combination light housing
20. Quarter corner panel
21. Fuel filler neck bracket (Left side)
22. Side sill outer reinforcement rear
23. Side sill outer reinforcement front
24. Side sill inner support front
25. Front fender bracket lower
26. Cowl side trim bracket
27. Fender bracket
28. Fender bracket
29. Front upper frame outer rear
30. Front pillar reinforcement lower
31. Deck support pipe (Left side)
32. Rear door hinge reinforcement
33. Rear door hinge reinforcement support
34. Roof side rail reinforcement front
35. Front pillar support
36. Cowl side trim bracket (Right side)
37. Hood opener bracket
38. Center inner pillar lower
39. Roof rail front extension
40. Roof rail center extension
41. Center inner pillar upper
42. Roof rail rear extension
43. Center pillar seat belt reinforcement upper
44. Center pillar seat belt reinforcement lower
45. Rear wheel house shield plate front
46. Rear quarter inner panel lower (Left side)
47. Filler pipe MTG bracket (Left side)
48. Head restraint bracket (Left side)
49. Harness bracket (Right side)
50. Rear wheel house panel inner
51. Rear seat back brace front
52. Rear seat back brace rear
53. Harness bracket (Left side)
54. Plate rear seat back reinforcement
55. Rear seat hook A
56. Rear shelf upper brace
57. Brace rear seat back bulkhead
58. Rear seat belt reinforcement
59. Subwoofer upper bracket [GTS]
60. Roof side rail support
61. Rear pillar reinforcement
62. Nut plate
