Cowl

FRONT BODY


Front Deck

The impact absorbing opening on the cowl top outer reinforcement has been added to efficiently absorb energy upon impact and improve the pedestrian protection capability.

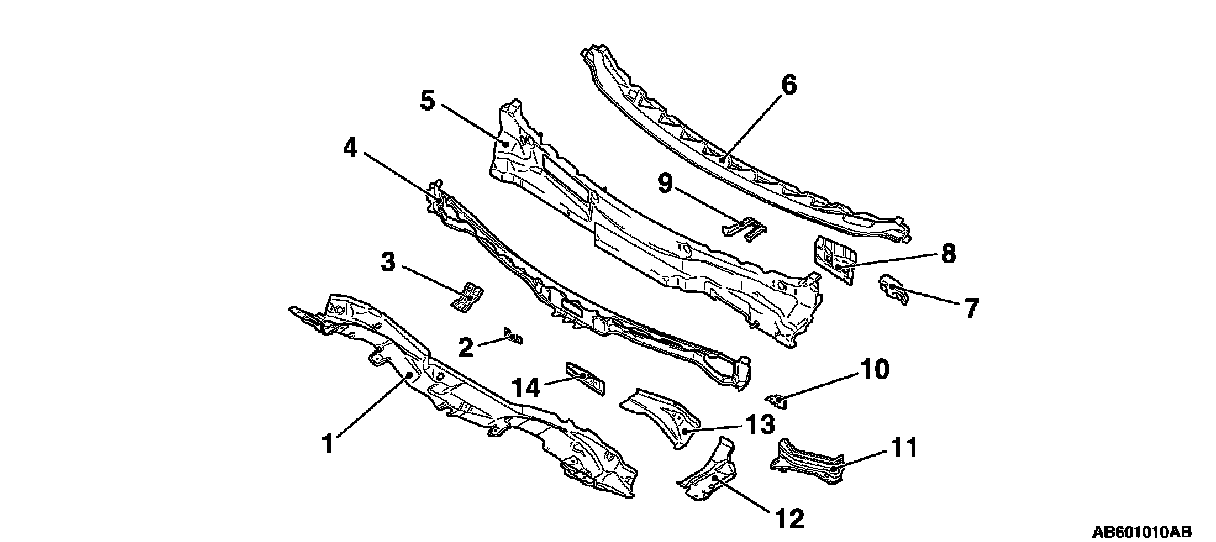

1. Cowl top panel lower
2. Wiper B bracket
3. Cowl top stay bracket rear
4. Cowl top outer reinforcement upper
5. Cowl top panel inner
6. Cowl top panel outer
7. Clutch pedal support bracket [M/T]
8. Brake pedal support bracket
9. Deck crossmember stay bracket
10. Fender bracket upper rear
11. Upper frame to front pillar brace
12. Upper frame extension inner
13. Cowl top outer reinforcement lower
14. Brake pedal support reinforcement
