Central Door Locking System [Lancer (Vehicles Without Keyless Entry System)]
Central Door Locking System [Lancer (Vehicles Without Keyless Entry System)]

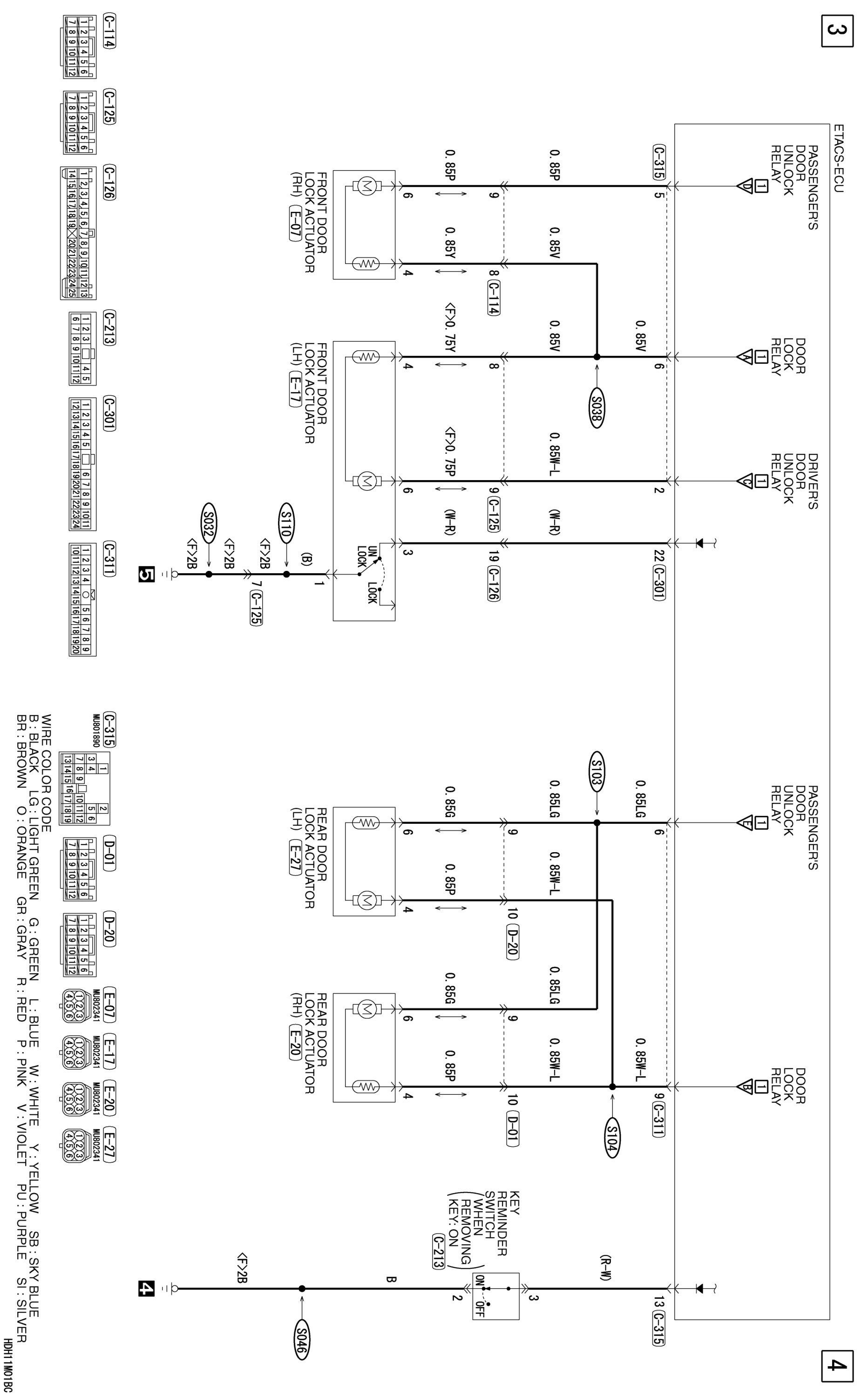

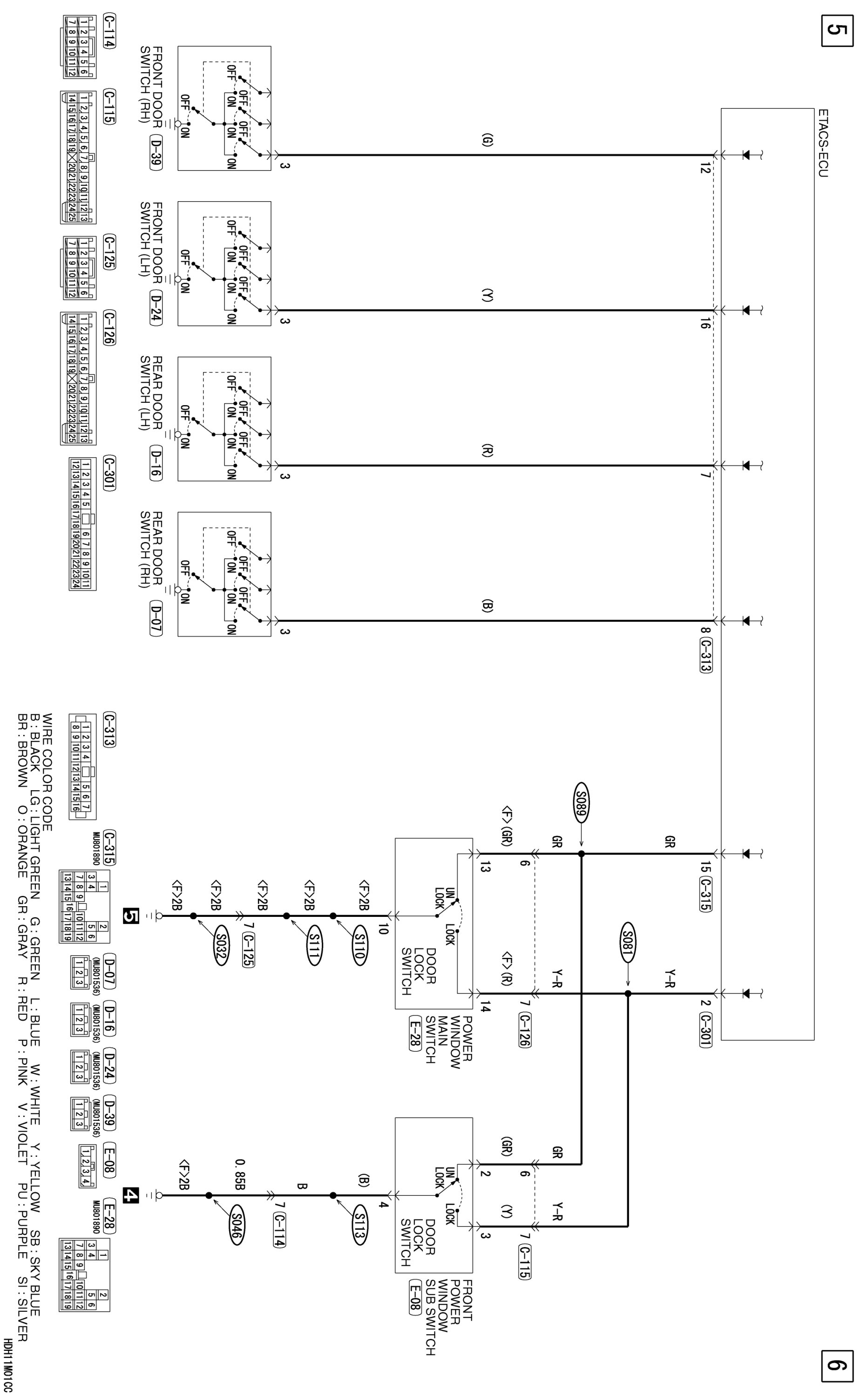

CENTRAL DOOR LOCKING SYSTEM [LANCER (VEHICLES WITHOUT KEYLESS ENTRY SYSTEM)]
