FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2012
>>
Lancer AWD L4-2.0L Turbo (4B11T)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
Central Door Locking System [Lancer (Vehicles With Keyless Entry System)]
Central Door Locking System [Lancer (Vehicles With Keyless Entry System)]

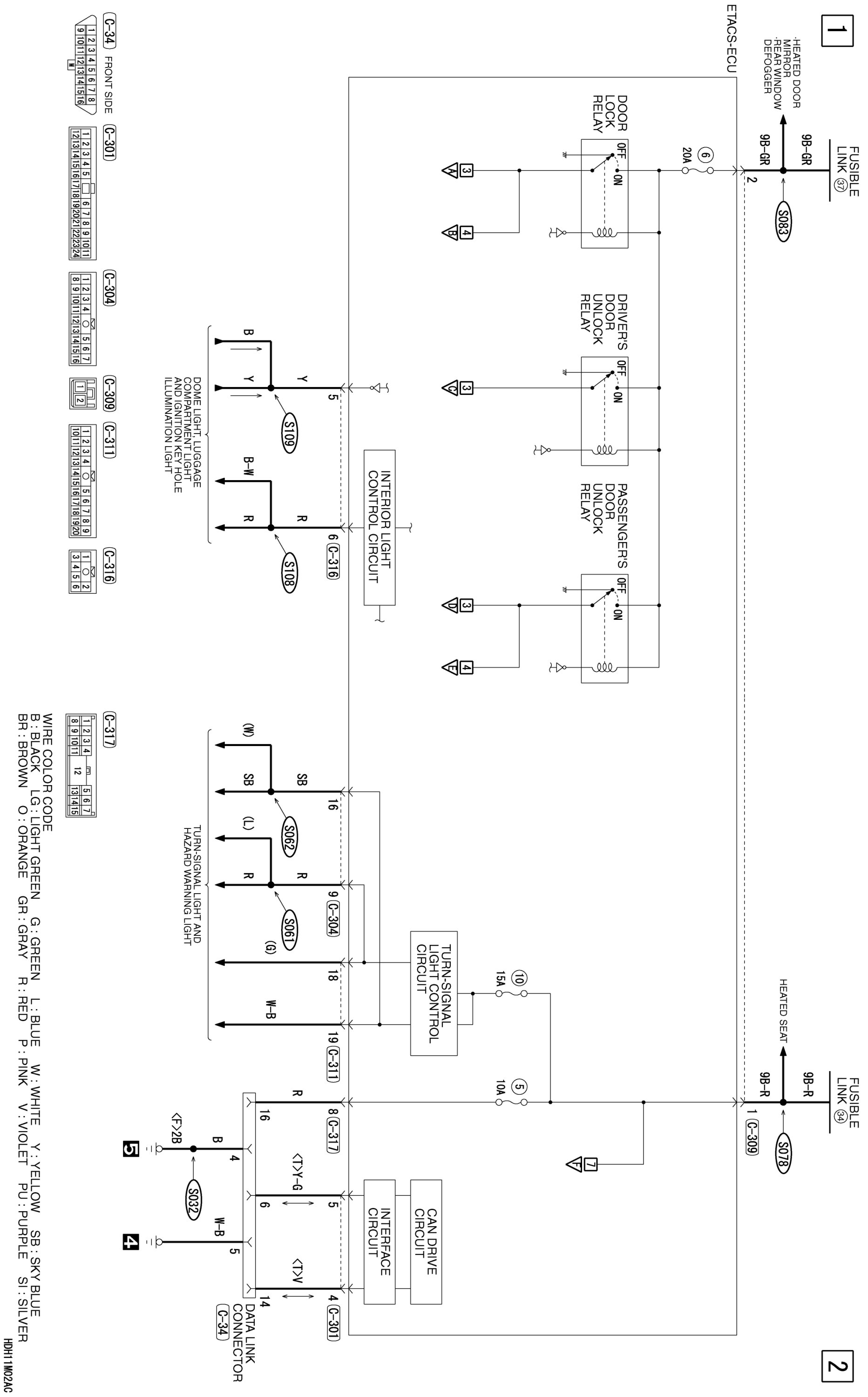

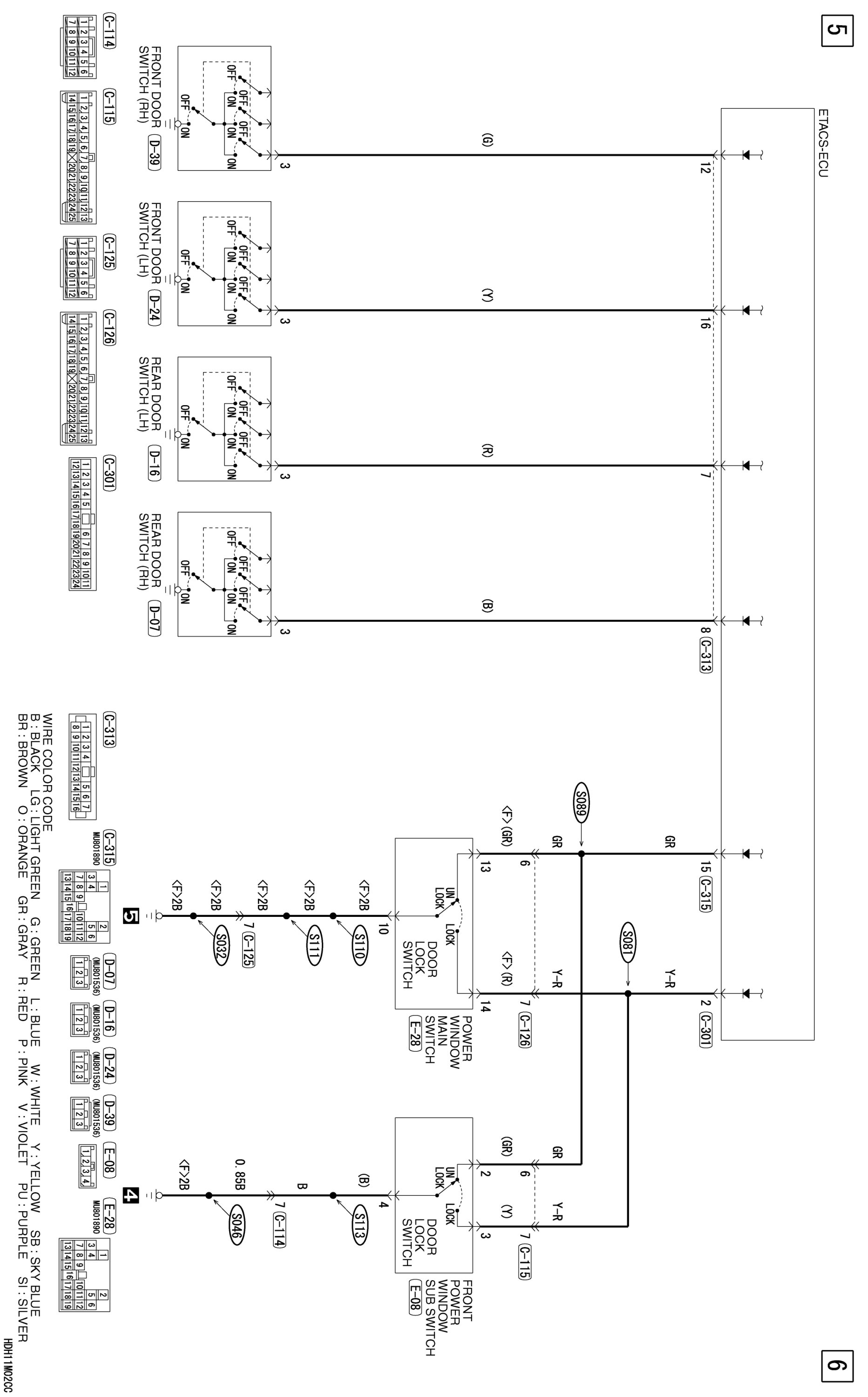

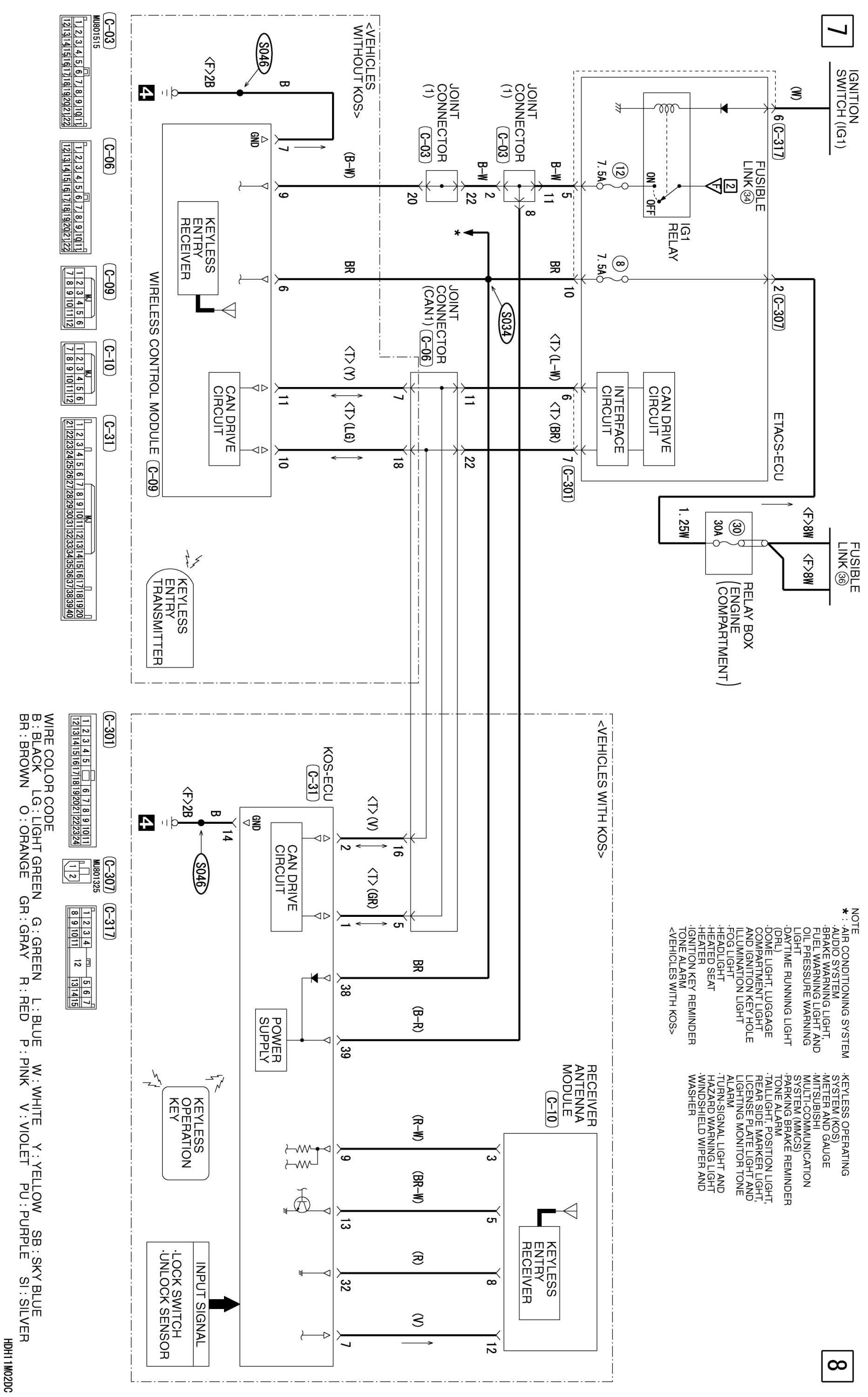

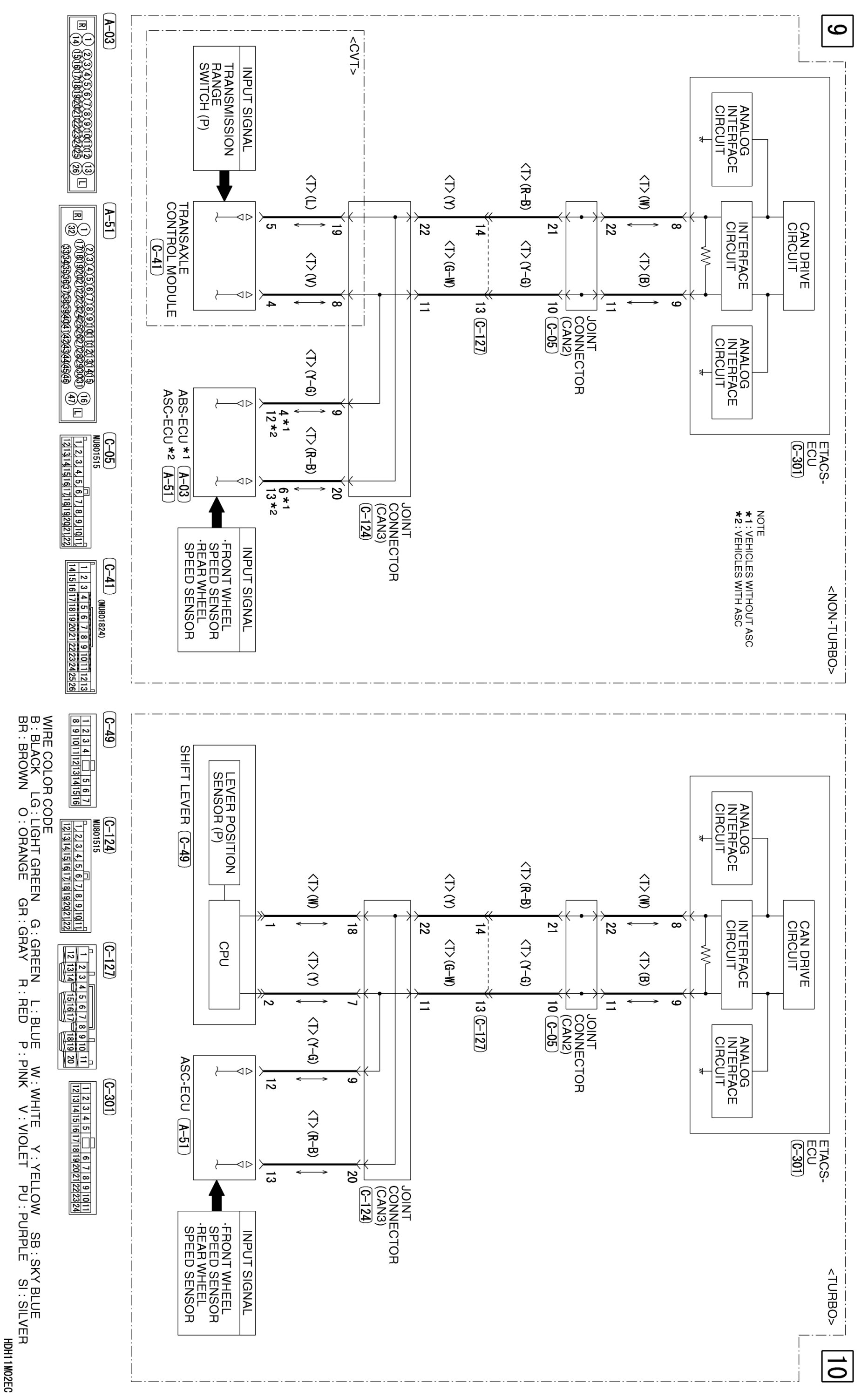

CENTRAL DOOR LOCKING SYSTEM [LANCER (VEHICLES WITH KEYLESS ENTRY SYSTEM)]
