Pinout Values and Diagnostic Parameters

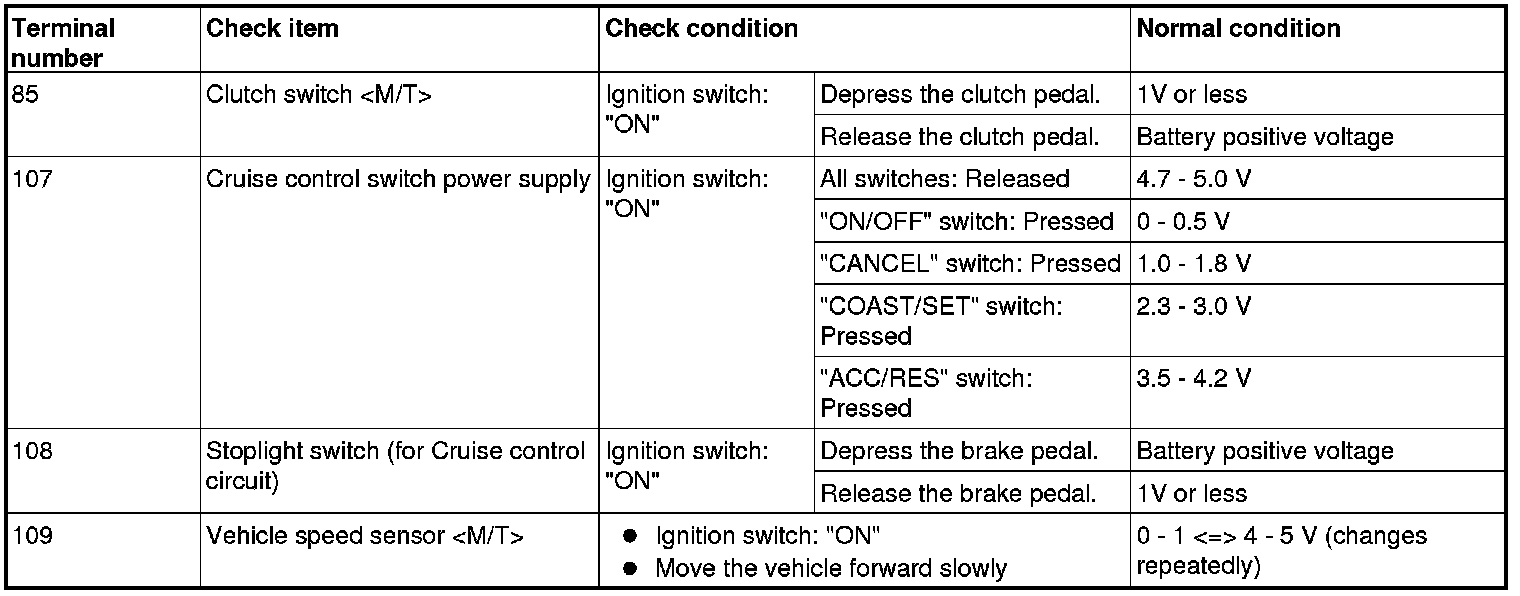

ECM TERMINAL VOLTAGE REFERENCE CHART FOR CRUISE CONTROL SYSTEM OPERATION

Required Special Tool:

- MB992110: Power plant ECU check harness

Use special tool MB992110, check the ECM terminal voltage.

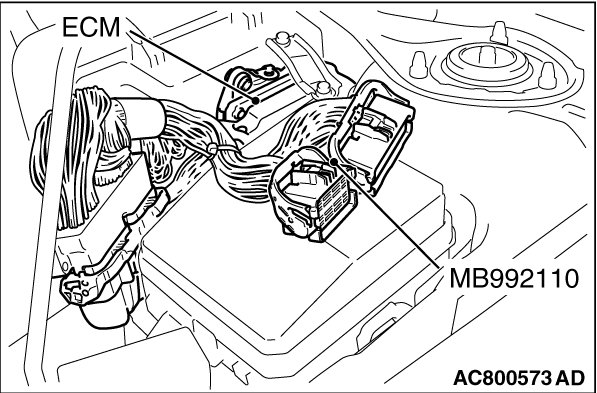

1. Disconnect the all ECM connectors, and connect special tool MB992110 in between [ Removal and Replacement]
[2.0L ENGINE Non-turbo], [ Removal and Replacement]
[2.0L ENGINE Turbo]
or [ Removal and Replacement]
[2.4L ENGINE.]

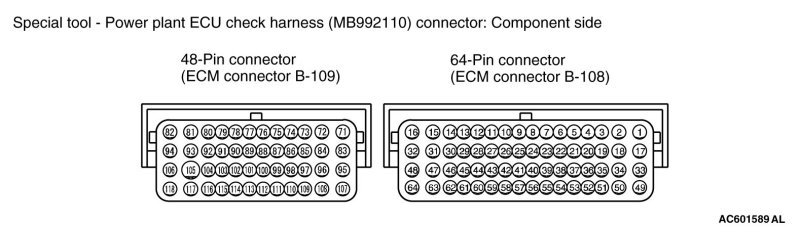

2. Measure the voltages between the check connector terminals of special tool MB992044 and ground terminals (ECM connector B-109 terminal number 81 or 93.)
