Parking Brake Lining and Drum Removal and Installation [Ralliart]

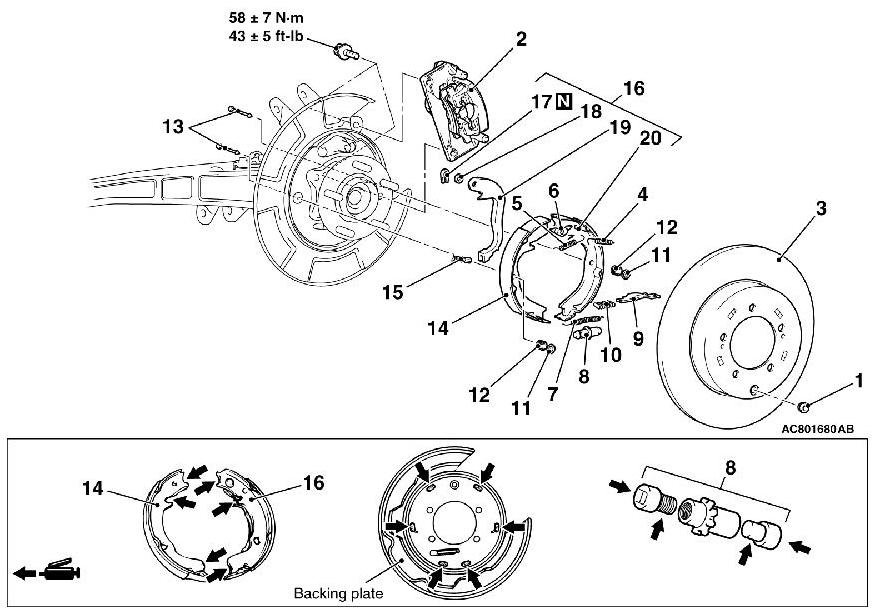

REMOVAL AND INSTALLATION [RALLIART]













REMOVAL SERVICE POINTS

[[A]] REAR BRAKE CALLIPER ASSEMBLY REMOVAL

1. Remove the rear brake caliper assembly with the brake hose.

2. Secure the removed rear brake caliper assembly with a wire or other similar material at a position where it will not interfere with the removal and installation operations.

[[B]] RETAINER REMOVAL





Use a flat-tipped screwdriver or a similar tool to open up the retainer joint. Then remove the retainer.

INSTALLATION SERVICE POINTS

]]A[[ WAVE WASHER INSTALLATION





Install the wave washer in the direction shown in the illustration.

]]B[[ RETAINER INSTALLATION





Use pliers or a similar tool to close the retainer end onto the pin.

]]C[[ ADJUSTER ASSEMBLY INSTALLATION

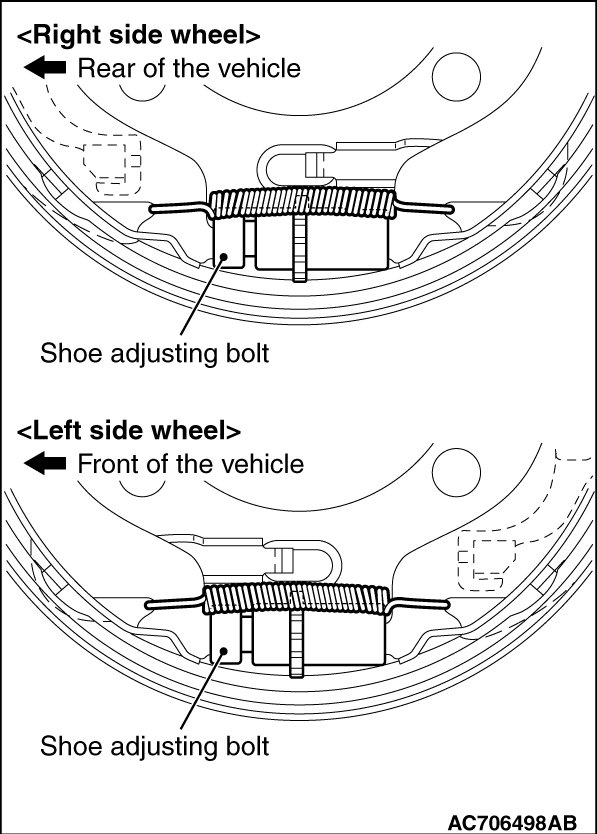

Install the adjuster assemblies. The shoe adjusting bolt should be mounted to the rear of the vehicle for the right wheel, and to the front of the vehicle for the left wheel.

]]D[[ SHOE-TO-ANCHOR SPRING INSTALLATION





The shoe-to-anchor springs are not interchangeable because their spring loads are different.
The one with blue paint mark should be installed to the front of the vehicle, and the other with yellow paint to the rear of the vehicle, respectively.
