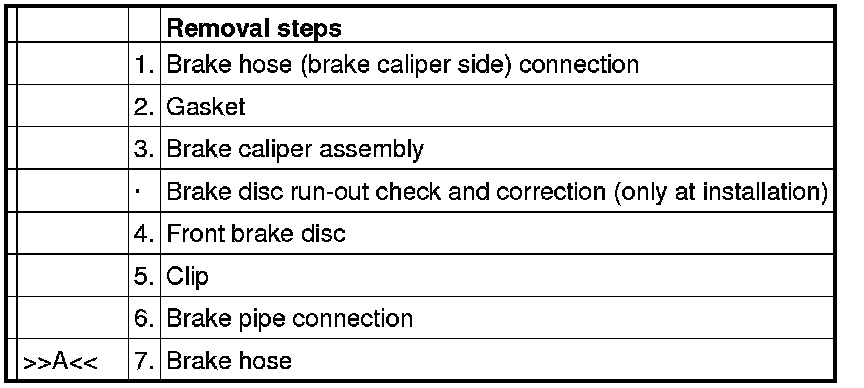

Removal and Installation

REMOVAL AND INSTALLATION













INSTALLATION SERVICE POINTS

]]A[[ BRAKE HOSE INSTALLATION

1. Pass the brake hose through the hole in the body-side bracket.

2. Install the brake hose to the brake caliper.

3. Install the brake hose at the two fixing points.

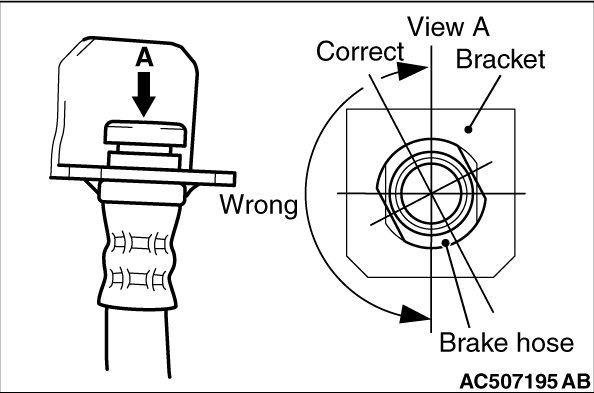

4. Twist the brake hose toward the lesser torsion between the brake hose and body-side bracket as shown in the figure, and fix it to the body-side bracket with a clip.
