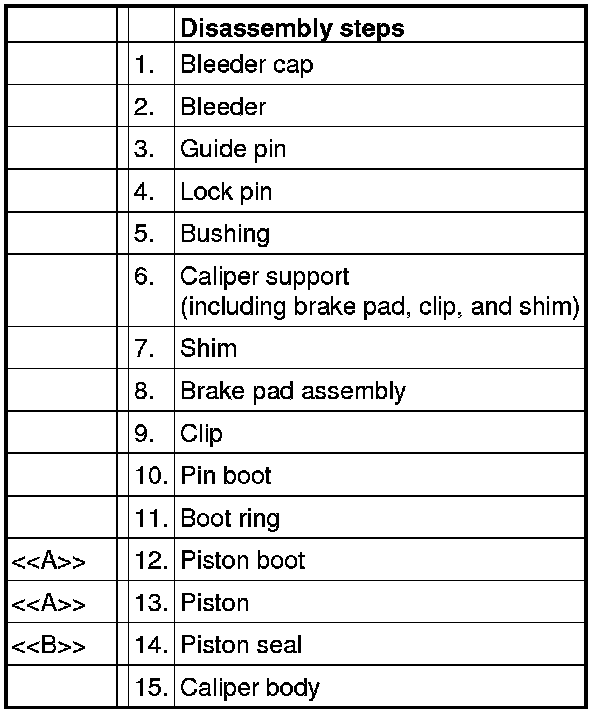

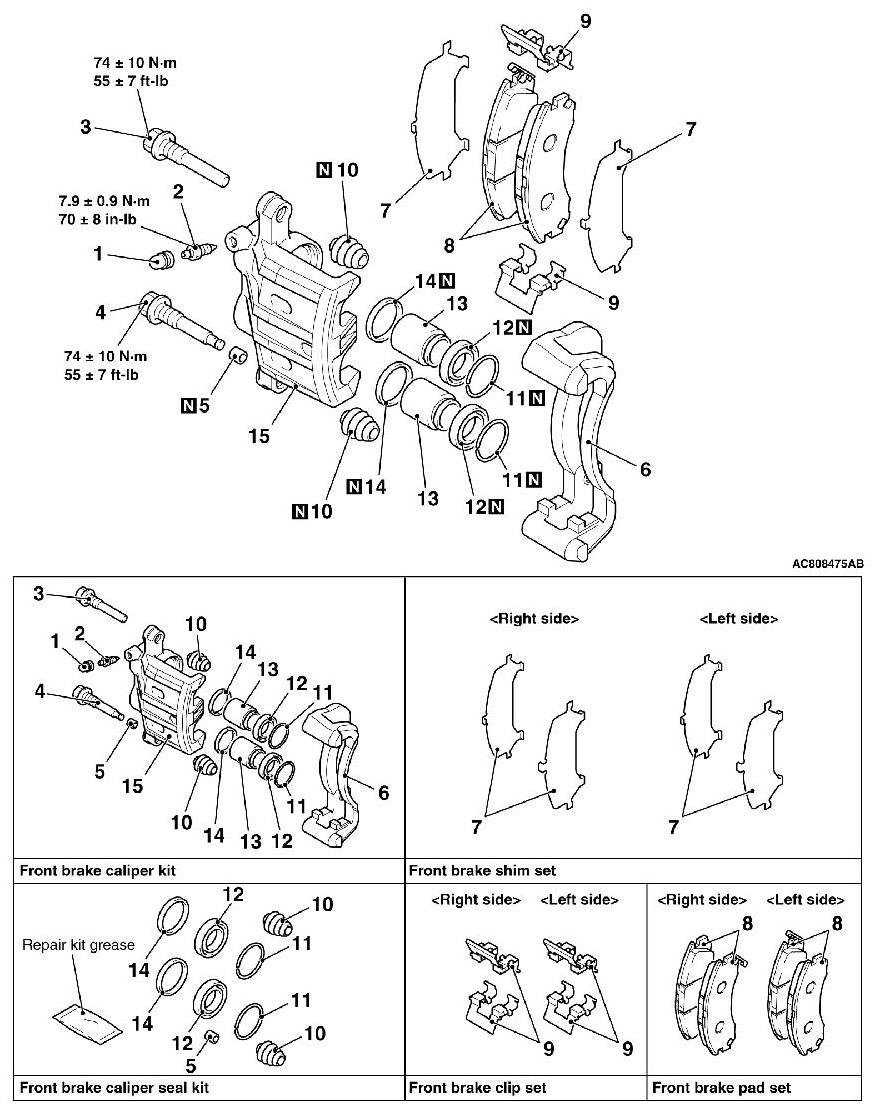

Disassembly and Assembly [16-Inch Front Disc Brake (Ralliart)]

DISASSEMBLY AND ASSEMBLY [16-INCH FRONT DISC BRAKE (RALLIART)]









NOTE:
Install the brake pad assembly (with wear indicator) to the inner side of the brake disc, making sure that the wear indicator is located on the top.

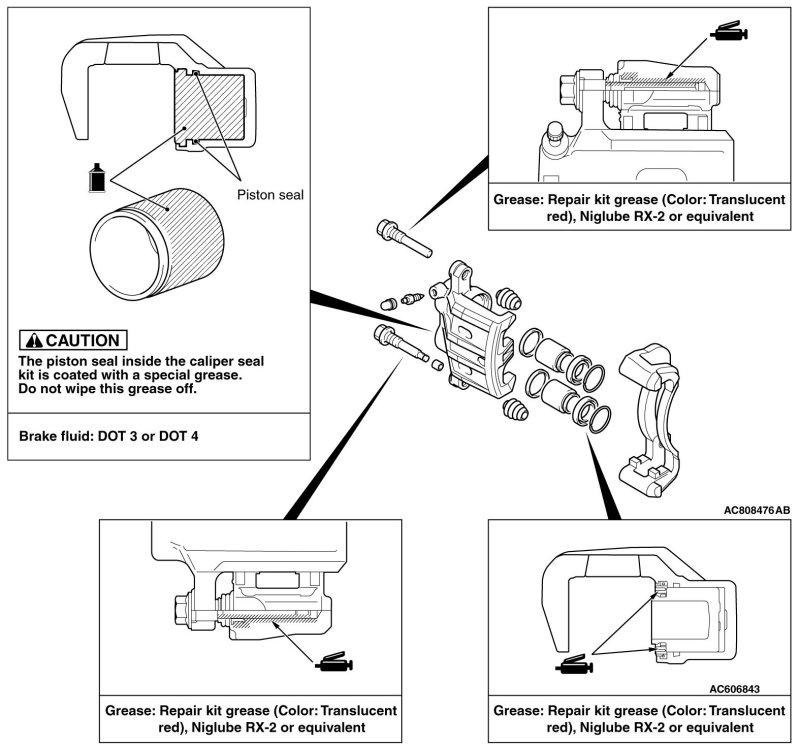

LUBRICATION POINTS





DISASSEMBLY SERVICE POINT

[[A]] PISTON BOOT/PISTON REMOVAL

CAUTION:

- Blow air little by little to remove the pistons.
The pistons will rush out if a force of air is applied suddenly.

- If one piston has been removed completely, it will become impossible to remove the second piston.

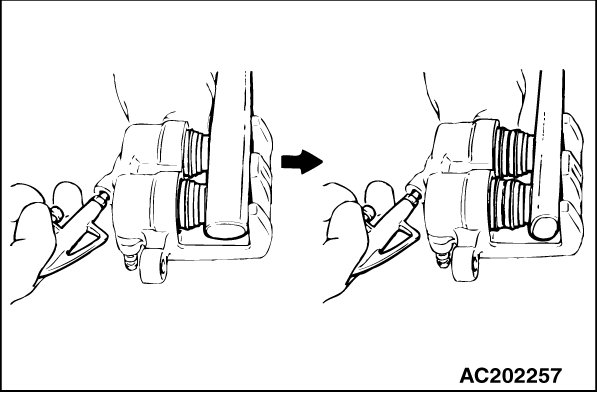

Remove the pistons and the piston boots by pumping in air from the brake hose connection.
Be sure to use the handle of a plastic hammer and adjust the height of the two pistons so that the pistons protrude evenly.

[[B]] PISTON SEAL REMOVAL





1.
CAUTION:
Do not use a flat-tipped screwdriver or similar tool to remove the piston seal. These may damage the inner side of the cylinder.

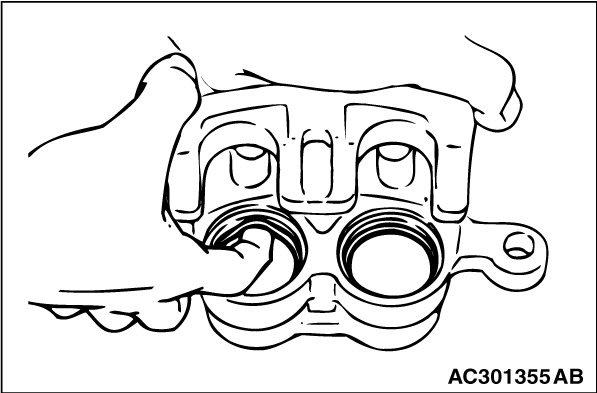

Remove the piston seal with your finger tip.
2. Clean the piston surface and cylinder inner face with alcohol or specified brake fluid.
Brake fluid: DOT 3 or DOT 4
