Brake Pad Check

BRAKE PAD CHECK













1.
CAUTION:
If there is a significant difference in thickness between the brake pads at right and left, check the sliding area and the run-out of the brake disc (Refer to Brake Disc Check).

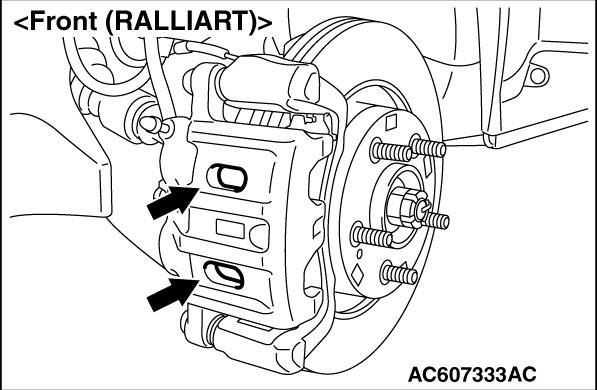

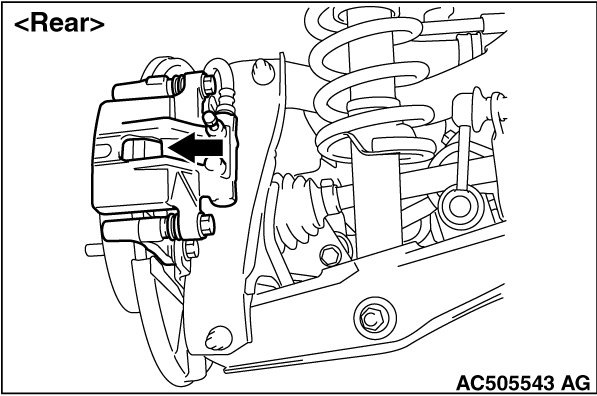

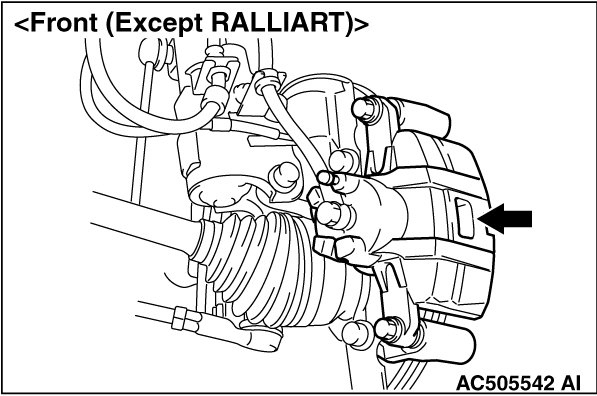

Visually check the thickness of brake pad from the inspection hole of the caliper body.
Standard value: 10.0 mm (0.39 inch)
Limit: 2.0 mm (0.08 inch)
2. If the brake pad thickness is less than the limit value, replace the brake pad (Refer to Brake Pad Replacement[Except Ralliart] [Except RALLIART] or Brake Pad Replacement[Ralliart] [RALLIART]).
