Silencer Application Locations

SILENCER APPLICATION LOCATIONS

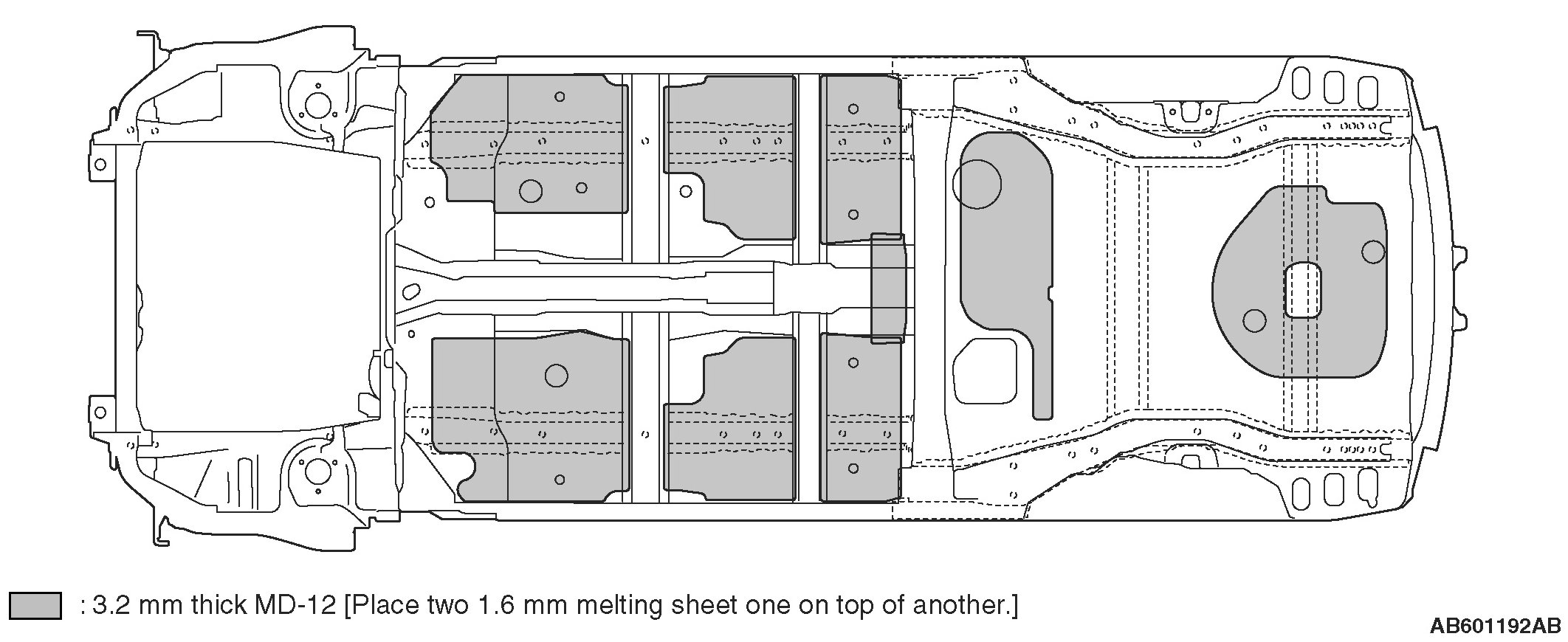

A silencer (MD-12) has been affixed on the upper surface of the floor for vibration damping.






NOTE: MD-12 is a high-performance sheet made of asphalt, to which mica, heat cured resin, and so on are added to improve damping performance.

NOTE: indicates the number of melting sheets that are used for repair.
