Rear Seat Assembly Disassembly and Reassembly

DISASSEMBLY AND ASSEMBLY

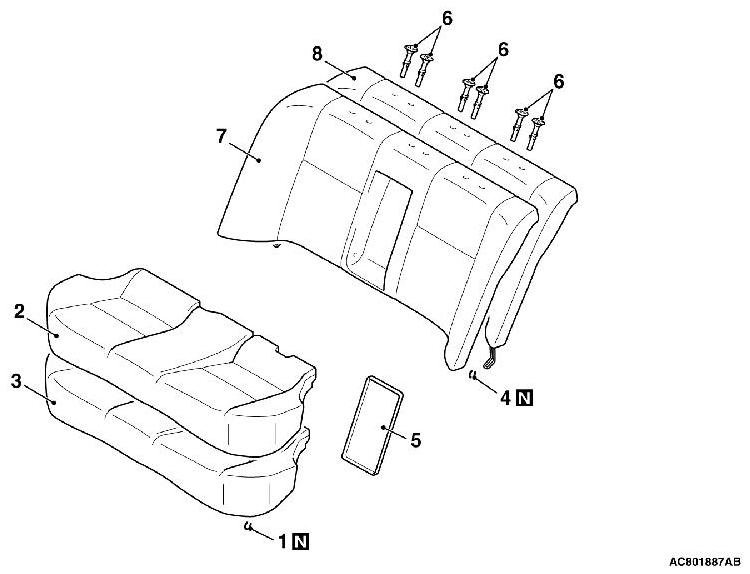

[LANCER:BENCH SEAT]

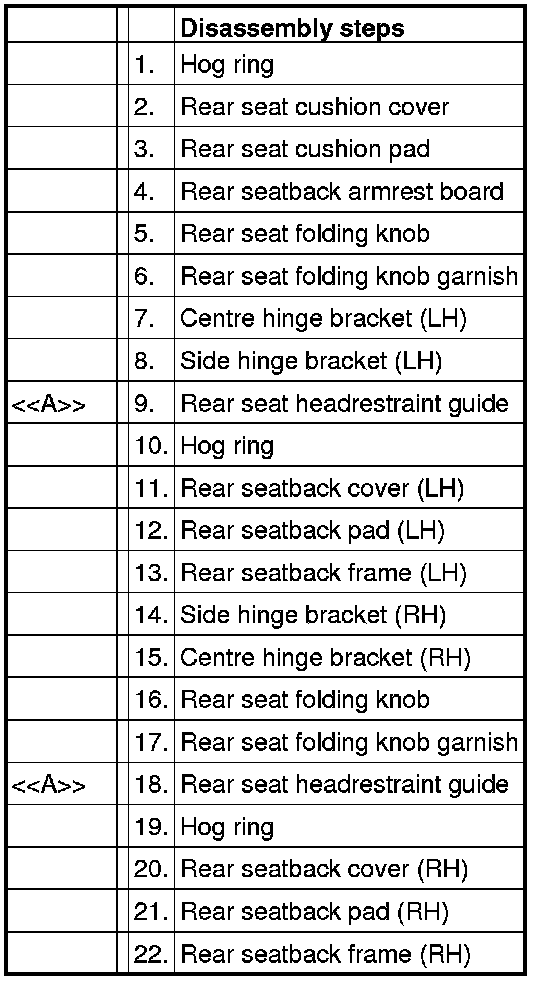

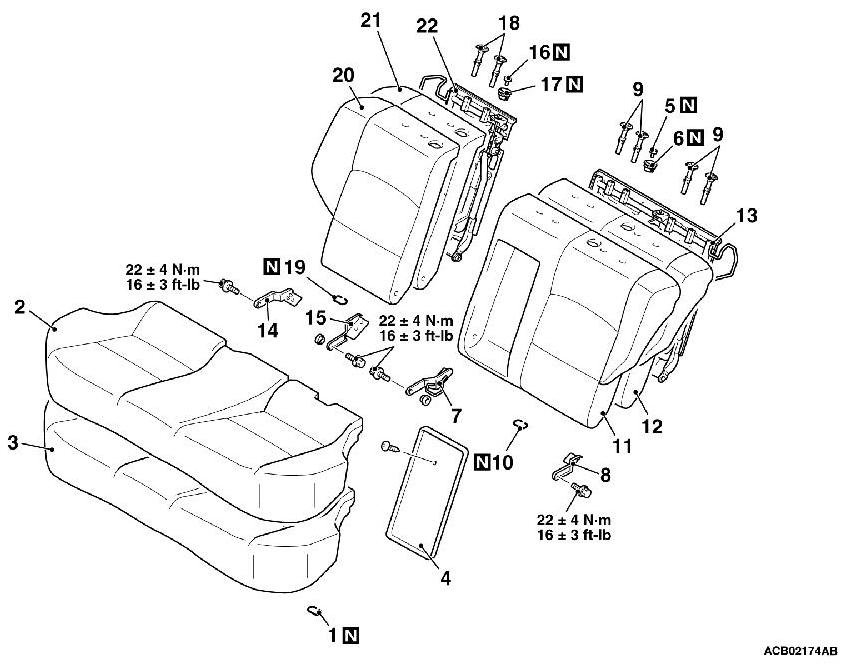

[LANCER:SPLIT SEAT]

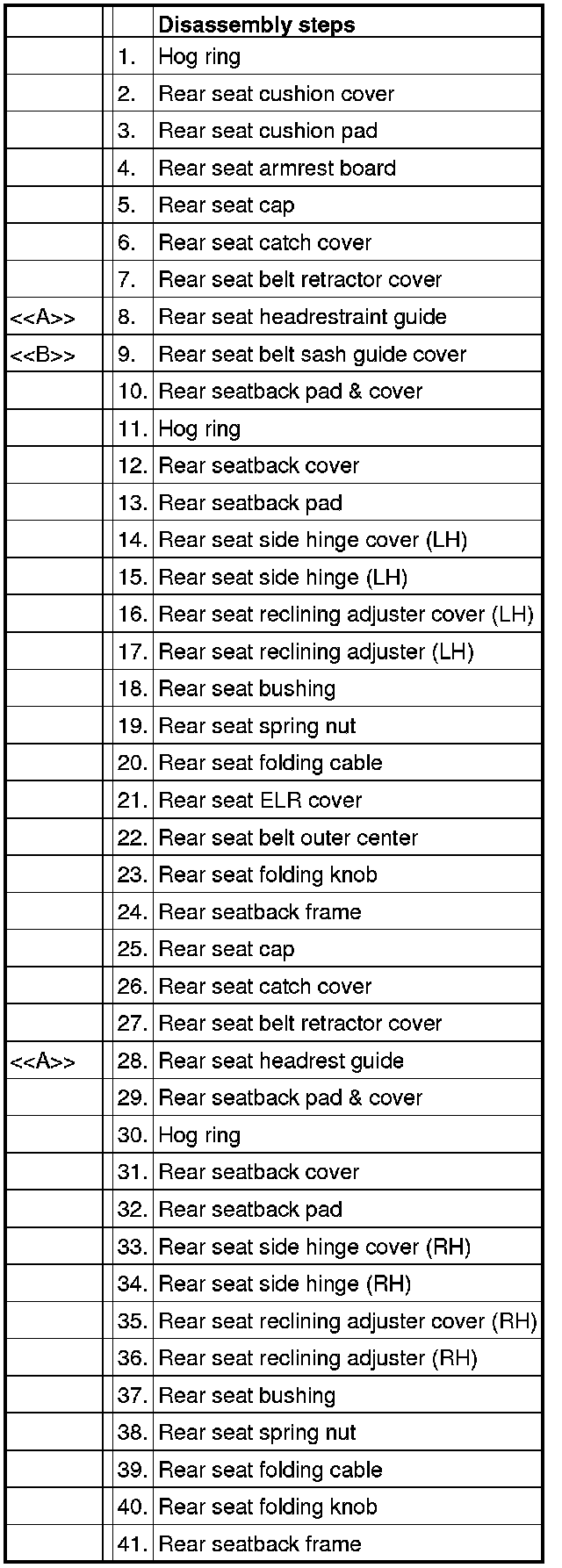

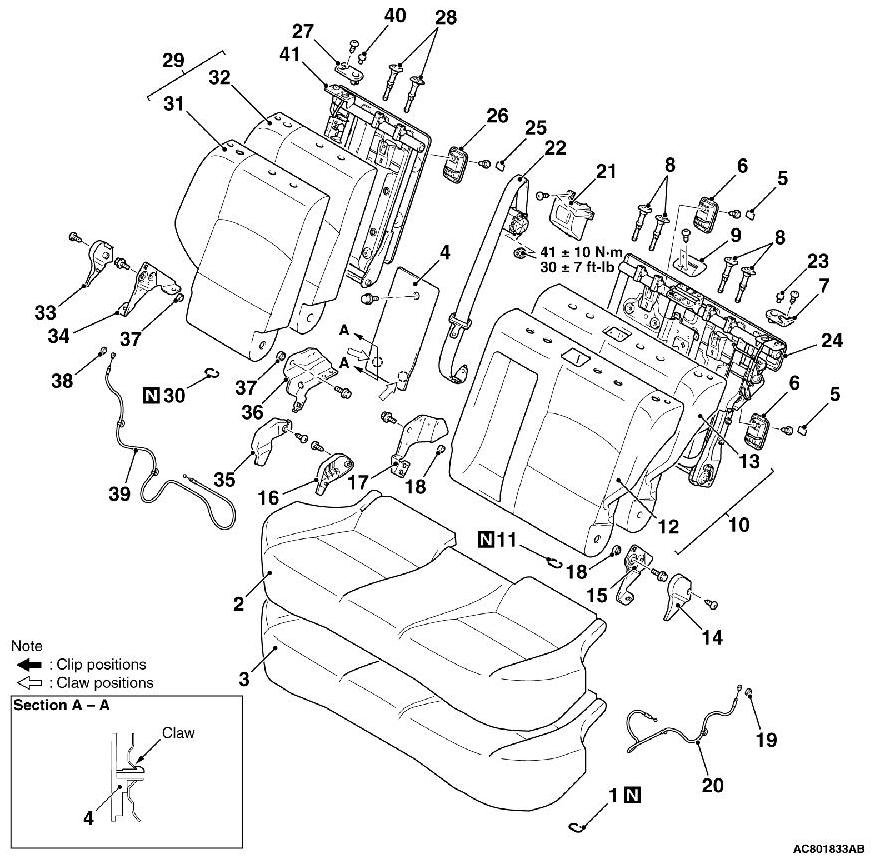

[LANCER SPORTBACK]






DISASSEMBLY SERVICE POINT

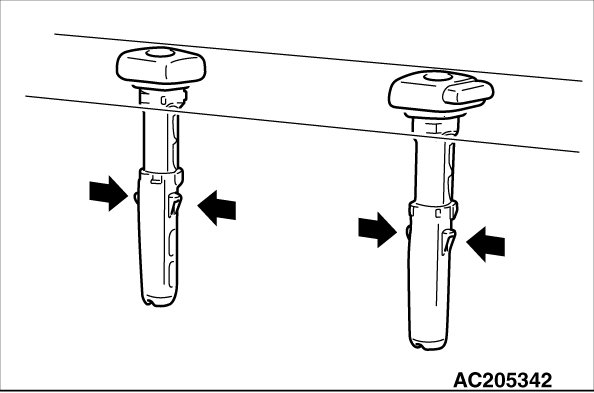

[[A]] HEAD RESTRAINT GUIDE REMOVAL





Peel off the rear seatback cover and pad to access the head restraint guides. Pull off the guides upwards while pushing the tabs (arrows) as shown.

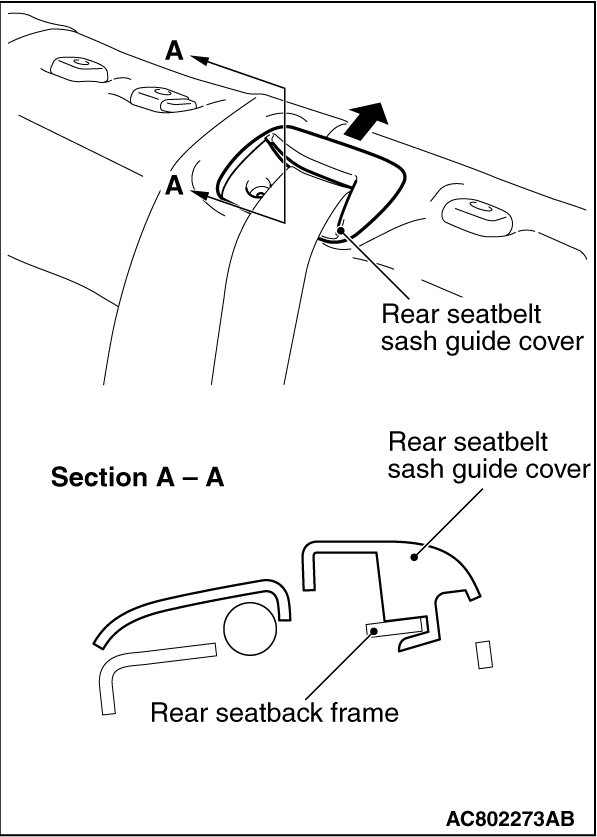

[[B]] REAR SEAT BELT SASH GUIDE COVER REMOVAL





Remove the rear seat belt sash guide cover by pulling it toward the rear side of the rear seatback.
