Front Seat Assembly Disassembly and Assembly

DISASSEMBLY AND ASSEMBLY

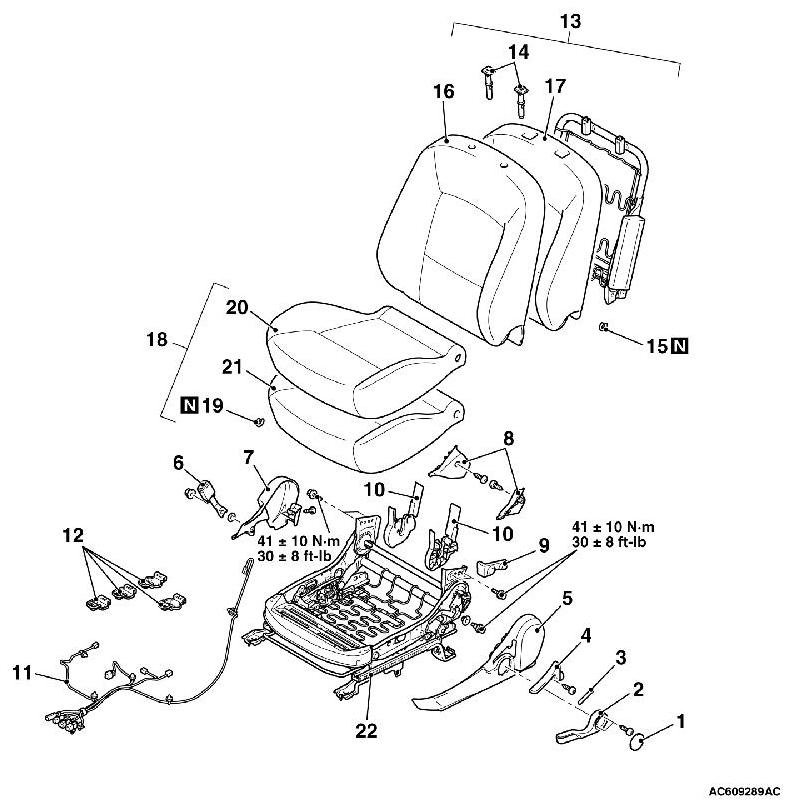

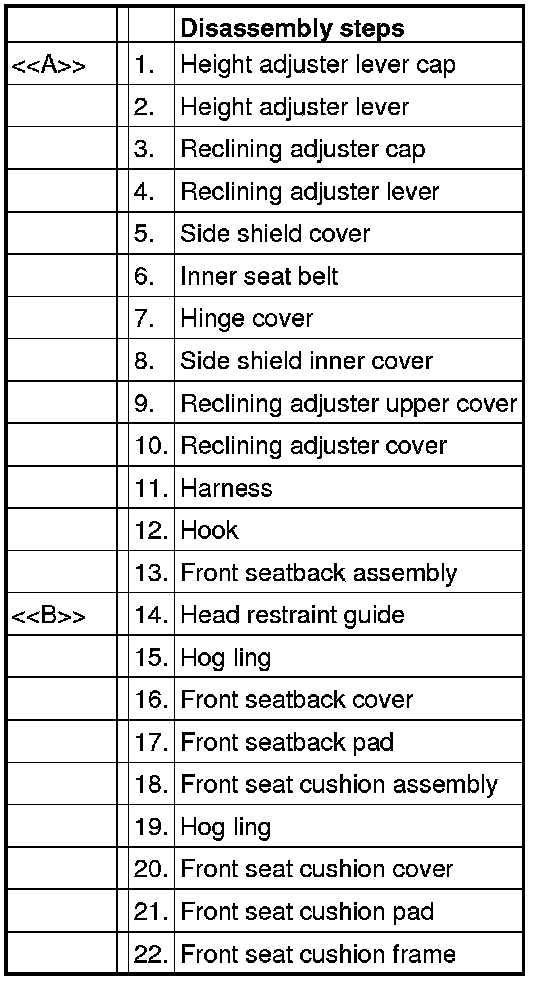

[STANDARD SEAT, SPORT SEAT]









Required Special Tool:

- MB990784: Ornament Remover

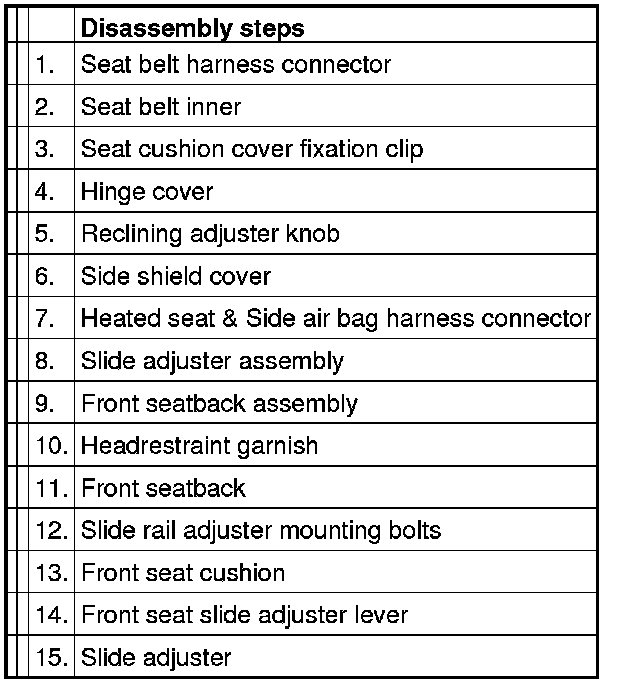

[RECARO SEAT]









Required Special Tool:

- MB990784: Ornament Remover

DISASSEMBLY SERVICE POINTS

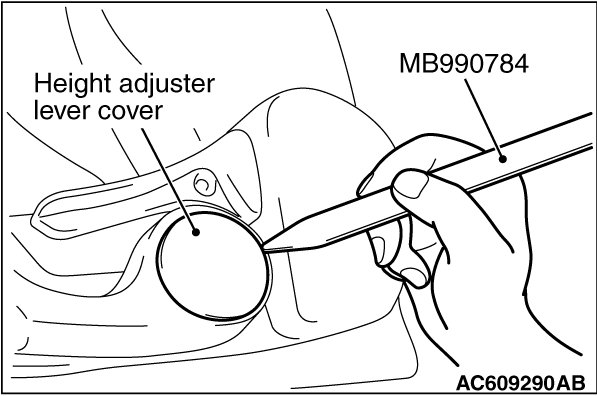

[[A]] HEIGHT ADJUSTER CAP REMOVAL





Use special tool MB990784 as shown to remove the height adjuster lever cover.

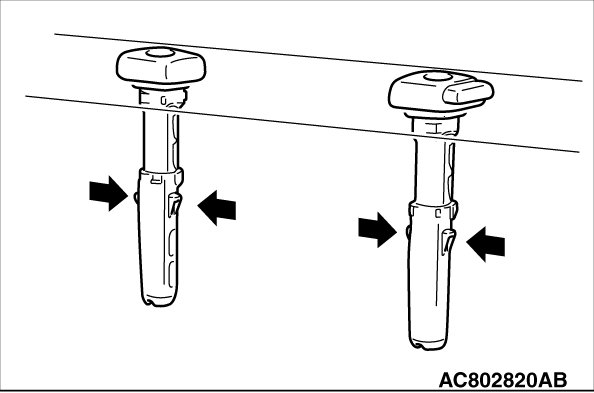

[[B]] HEAD RESTRAINT GUIDE REMOVAL





Peel of the front seatback cover and pad to access the head restraint guides. Pull off the guides upwards while pushing the tabs (arrows) as shown.
