Symptom Chart

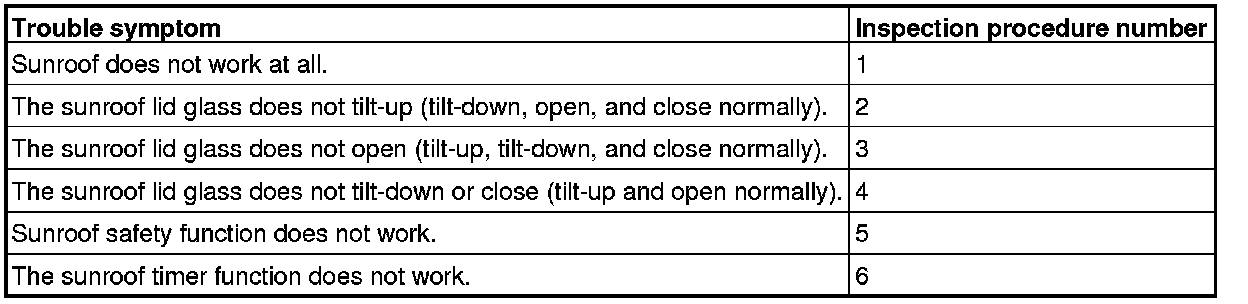

TROUBLE SYMPTOM CHART

CAUTION:
During diagnosis, a diagnosis code associated with other system may be set when the ignition switch is turned on with connector(s) disconnected. On completion, check all systems for diagnosis code(s). If diagnosis code(s) are set, erase them all.
