Removal and Replacement

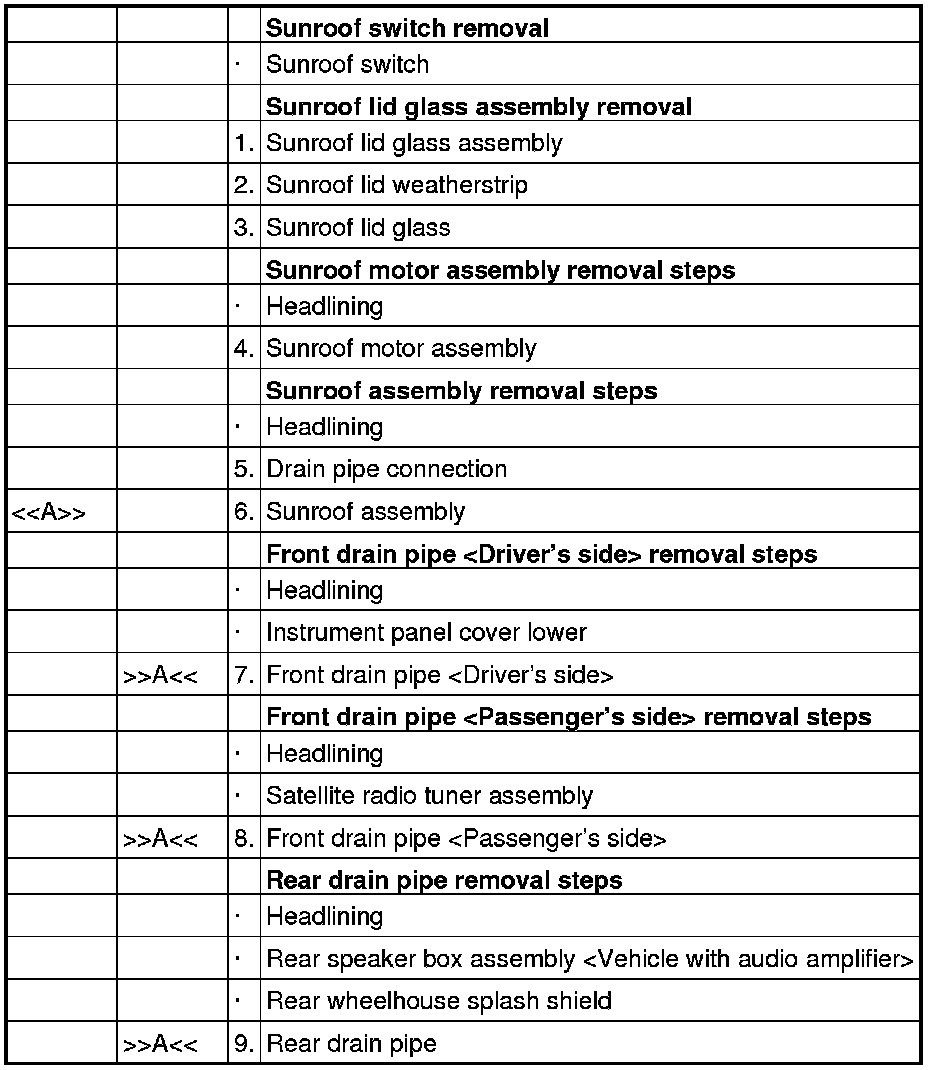

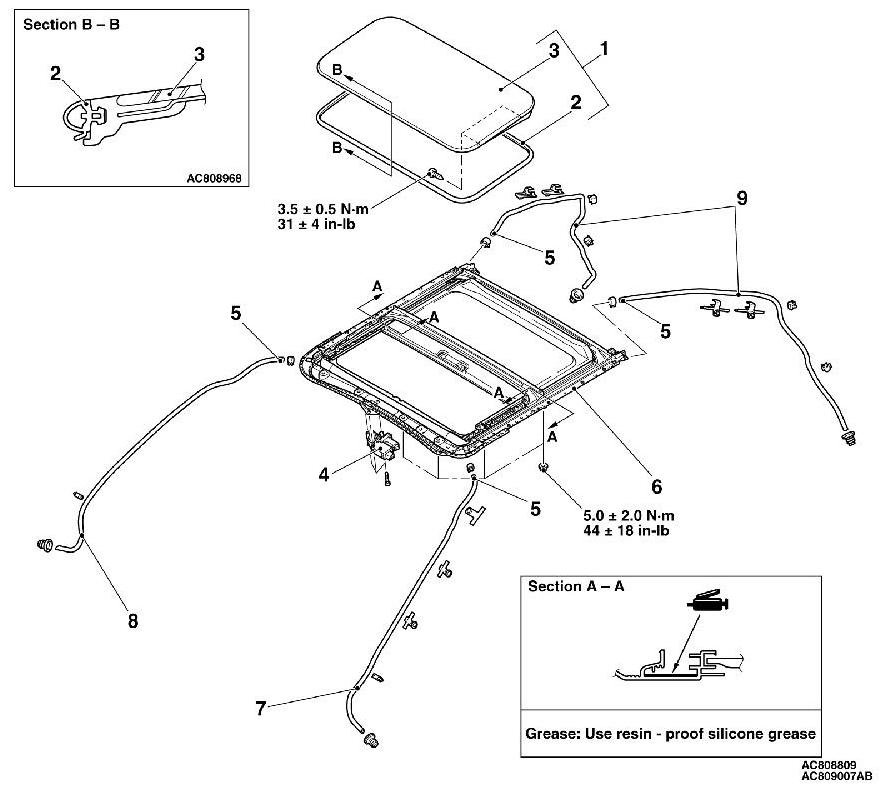

REMOVAL AND INSTALLATION

[LANCER]













[LANCER SPORTBACK]













REMOVAL SERVICE POINT

[[A]] SUNROOF ASSEMBLY REMOVAL

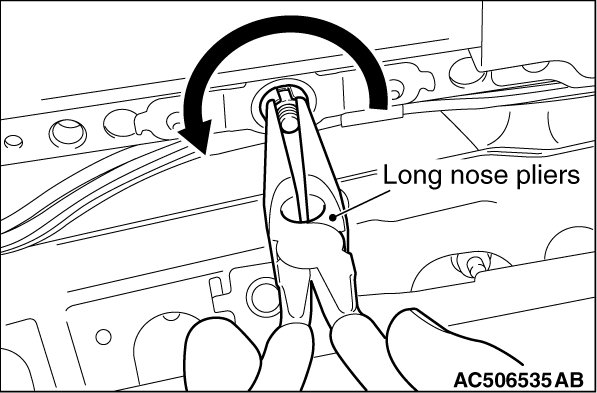

Use a pair of long nose pliers or the like to remove the sunroof assembly while turning it in the direction shown in the figure.

INSTALLATION SERVICE POINT

]]A[[ FRONT DRAIN PIPE/REAR DRAIN PIPE INSTALLATION [LANCER]

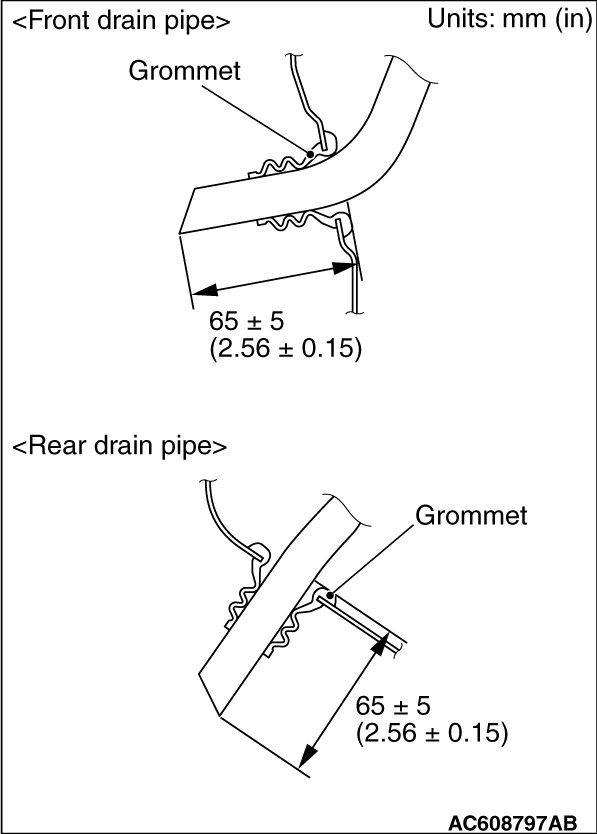

Install the grommet, and adjust the drain pipe projection as shown.

]]A[[ FRONT DRAIN PIPE/REAR DRAIN PIPE INSTALLATION [LANCER SPORTBACK]





Install the grommet, and adjust the drain pipe projection as shown in the figure.
