Adjustment of Clearance Around Hood [Ralliart]

ADJUSTMENT OF CLEARANCE AROUND HOOD [RALLIART]

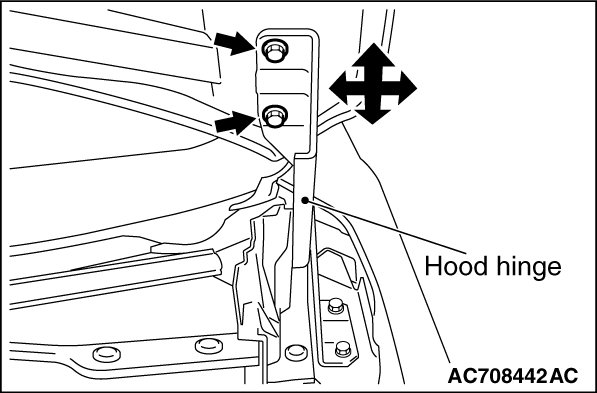

1. Loosen the hood hinge mounting bolts but do not remove them. Move the hood hinge back/forth and left/right to align the hood level.
2. After the adjustment, tighten the hood hinge mounting bolts to 12 ± 2 Nm
(106 ± 17 in-lb).
