Door Outside Handle Play Check

DOOR OUTSIDE HANDLE PLAY CHECK

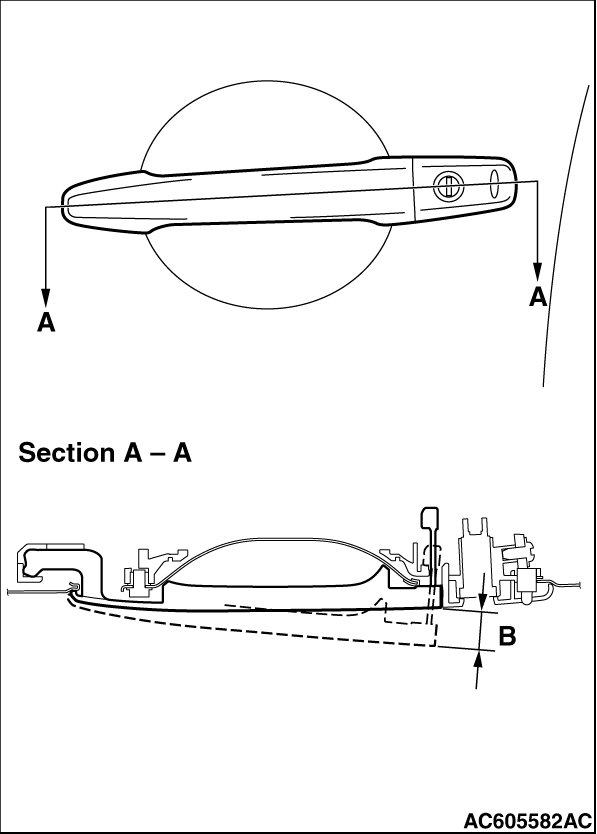

1. Check that the door outside handle assembly play meets the standard value.
Standard value (B): 0.3 - 5.0 mm (0.01 - 0.2 inch) [Target value: 2.4 mm (0.09 inch)]
2. Check the door outside handle assembly and door latch assembly, and replace them if they are out of the standard value.
