Electronic Time and Alarm Control System (ETACS)

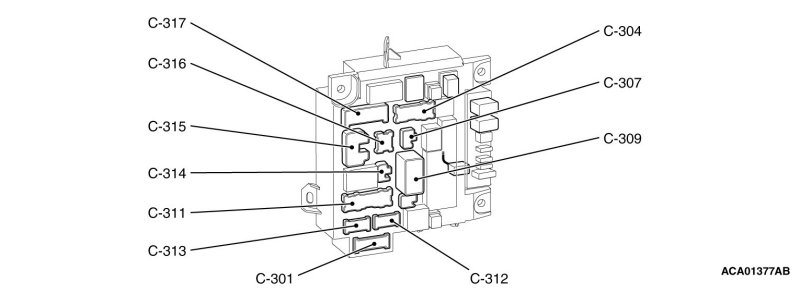

CHECK WITH TERMINAL VOLTAGE

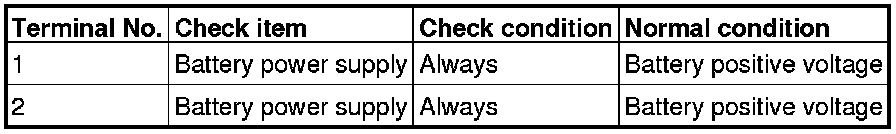

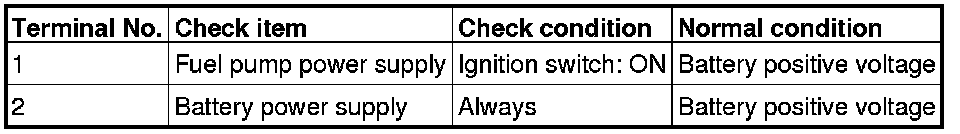

CONNECTOR: C-301

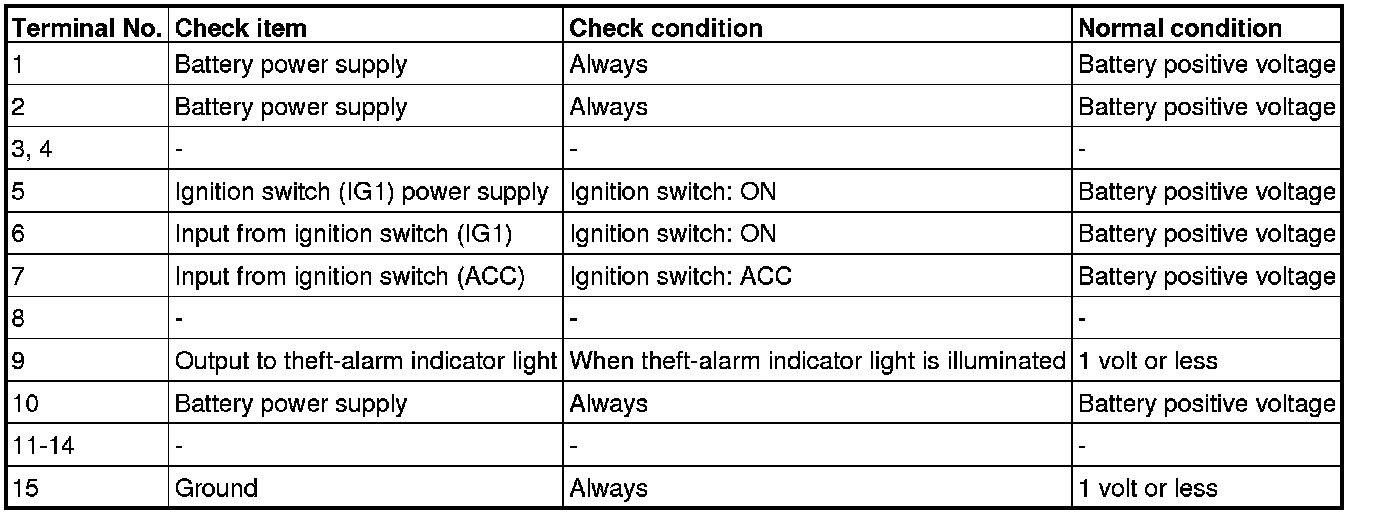

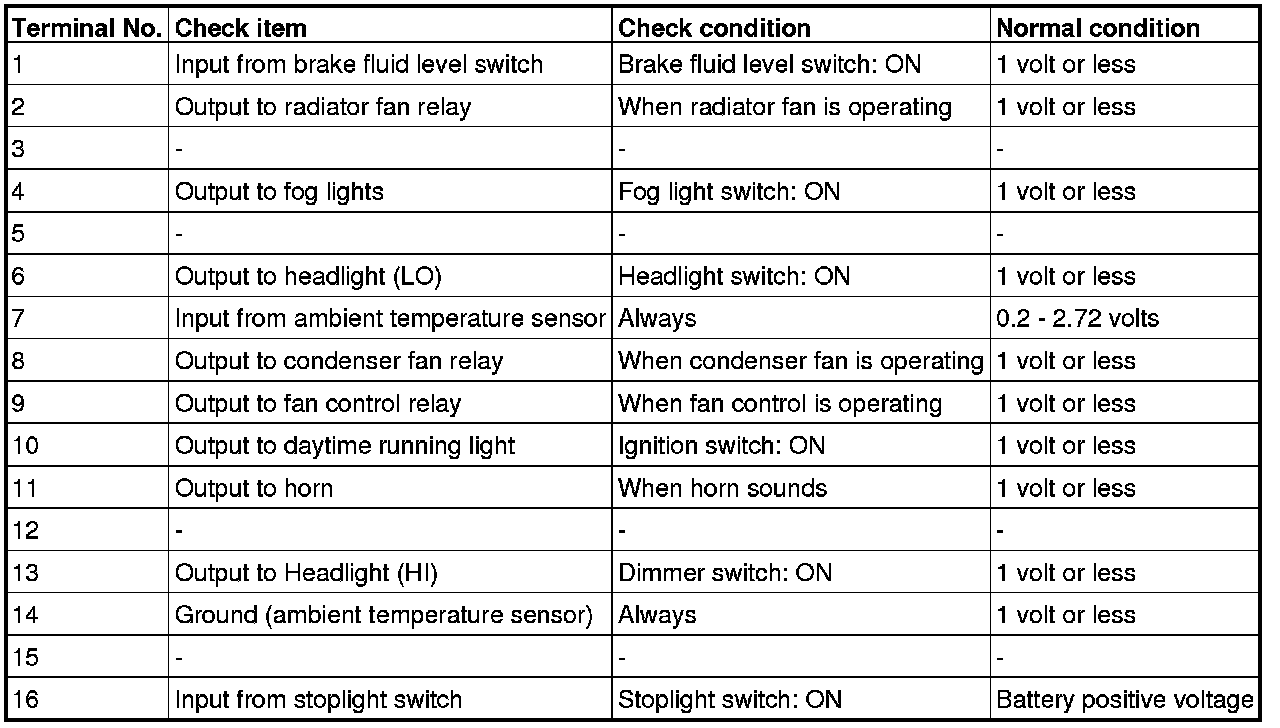

CONNECTOR: C-304

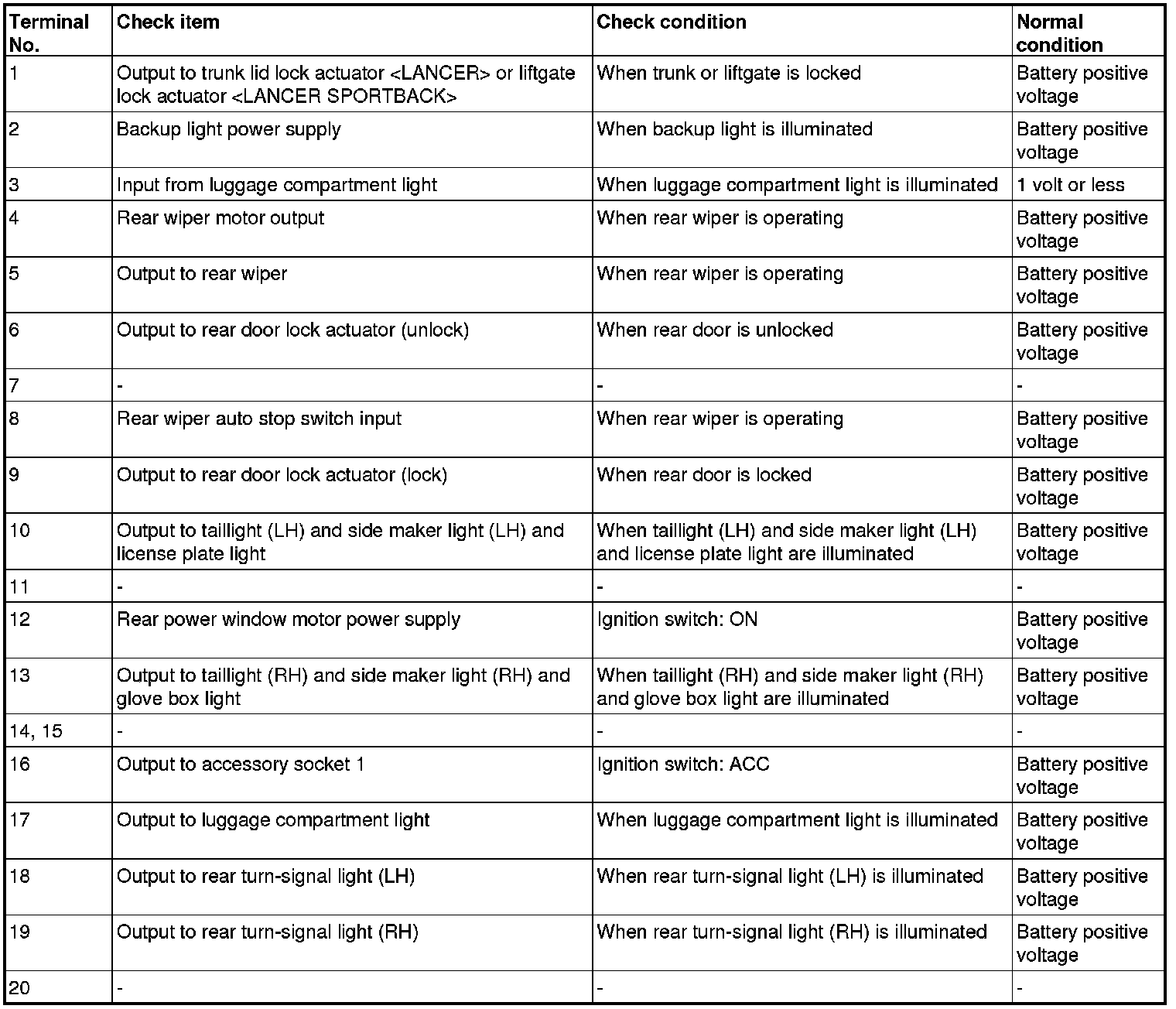

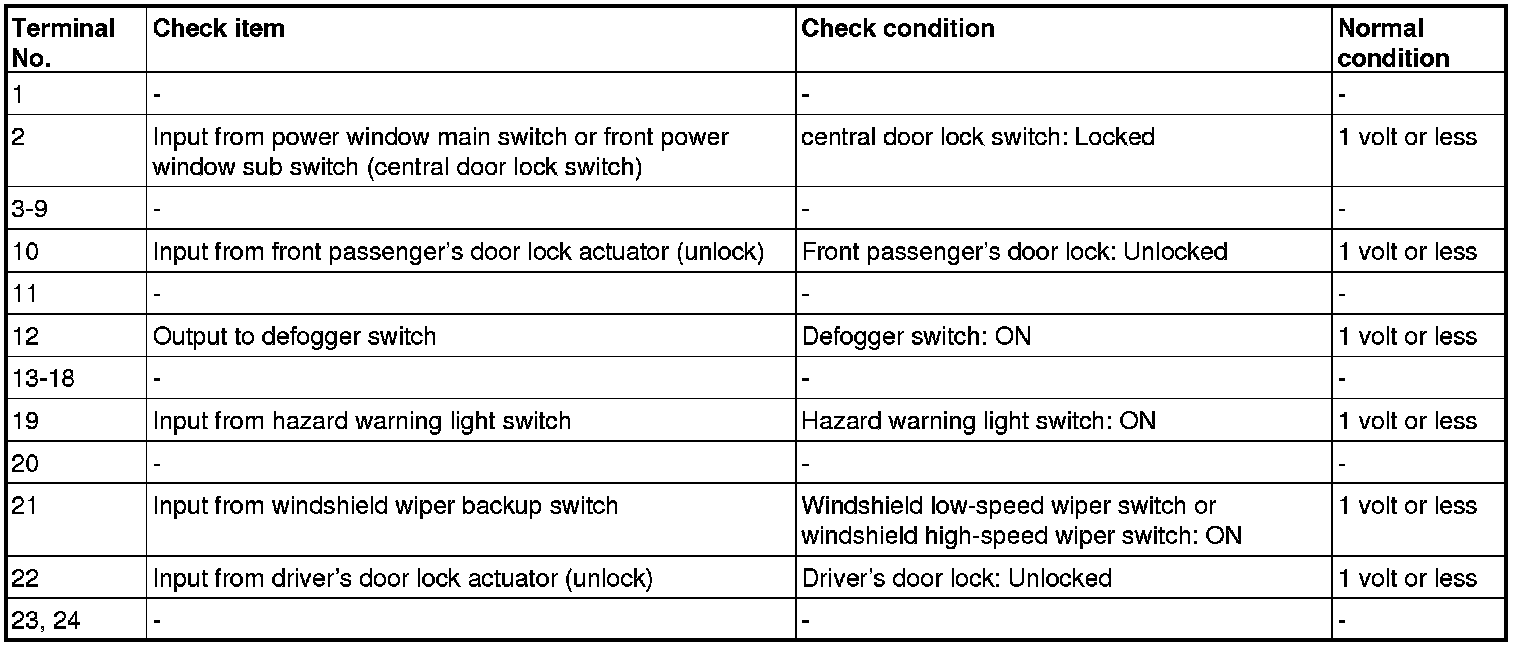

CONNECTOR: C-307

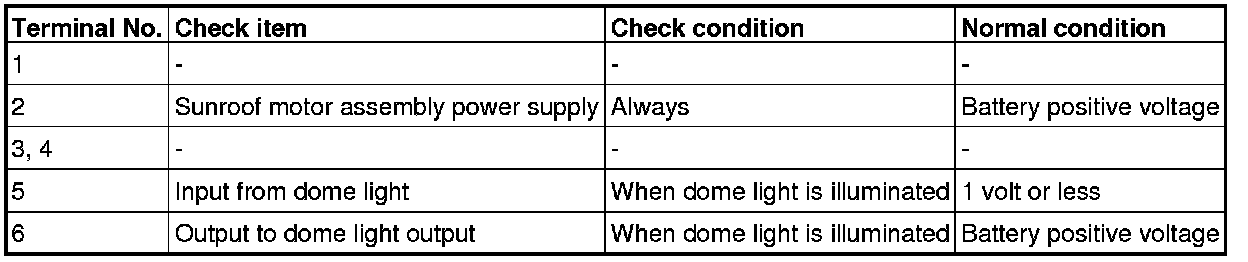

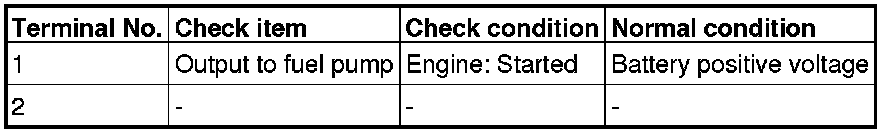

CONNECTOR: C-309

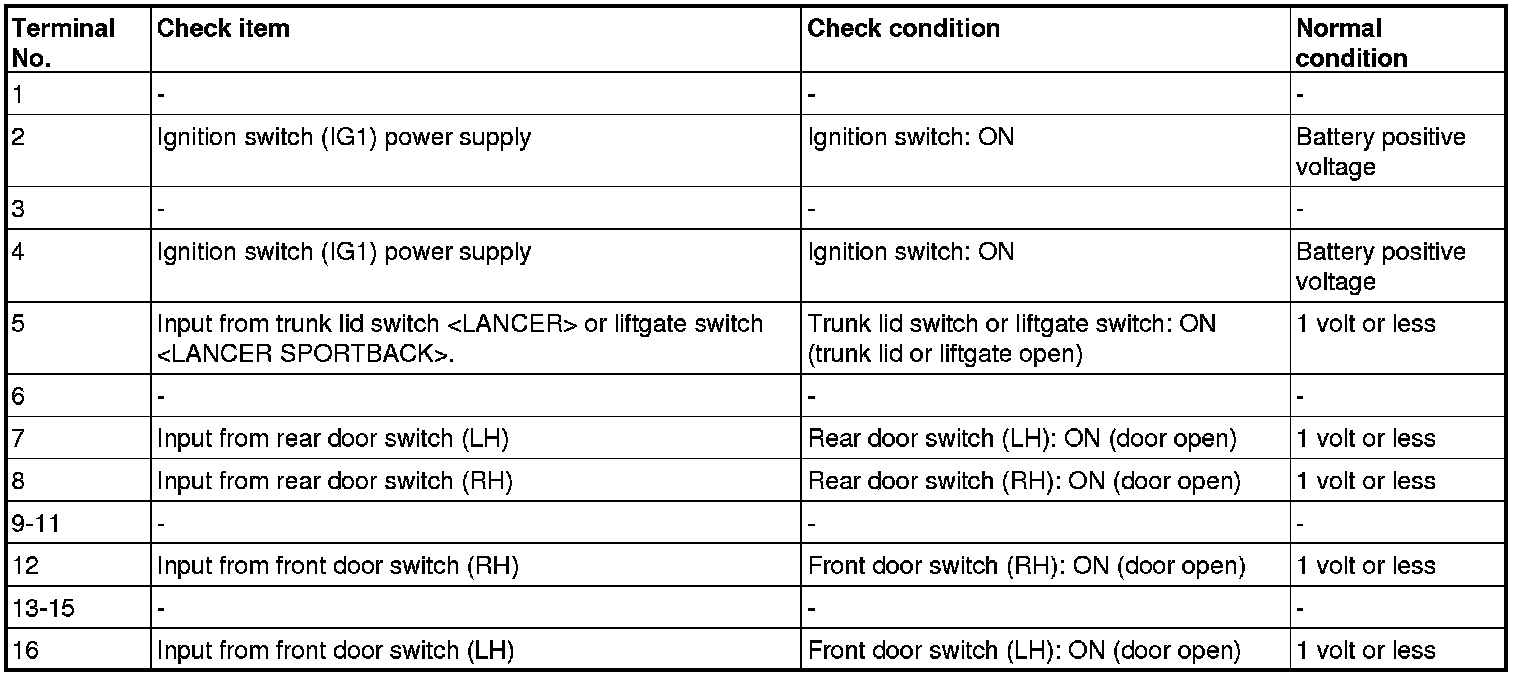

CONNECTOR: C-311

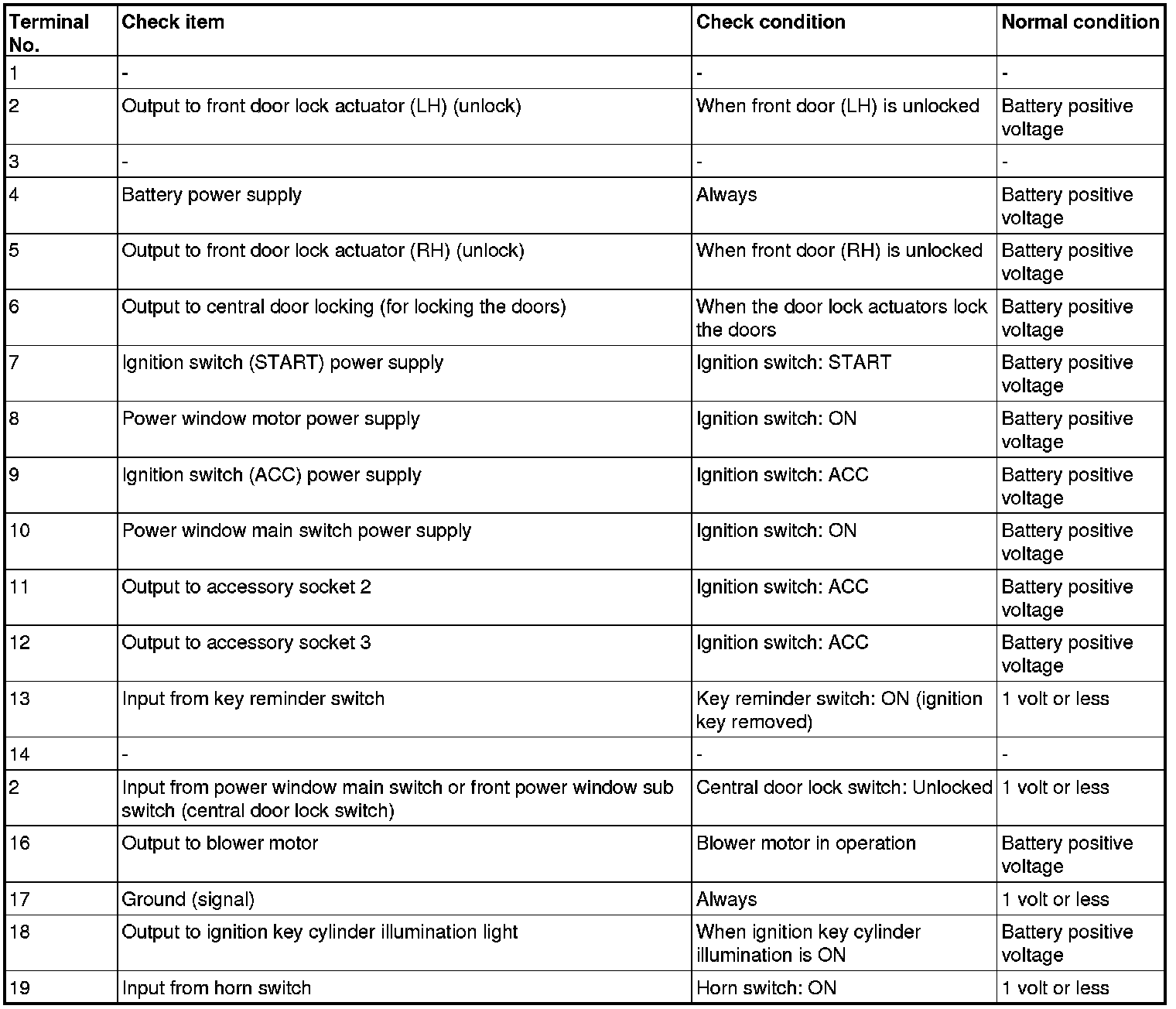

CONNECTOR: C-312

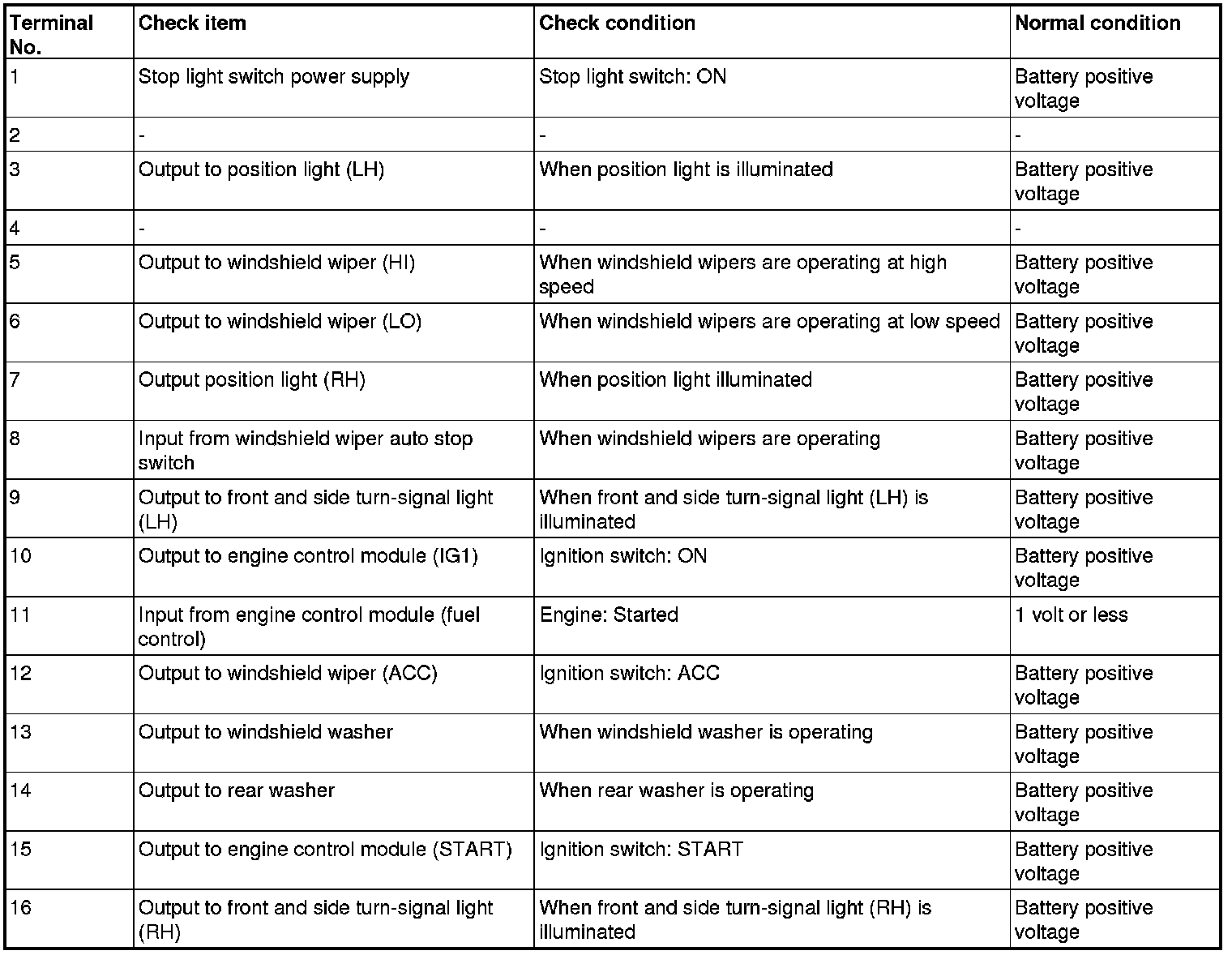

CONNECTOR: C-313









CONNECTOR: C-314









CONNECTOR: C-315









CONNECTOR: C-316









CONNECTOR: C-317
