Pinout Values and Diagnostic Parameters




MAIN UNIT TERMINAL VOLTAGE

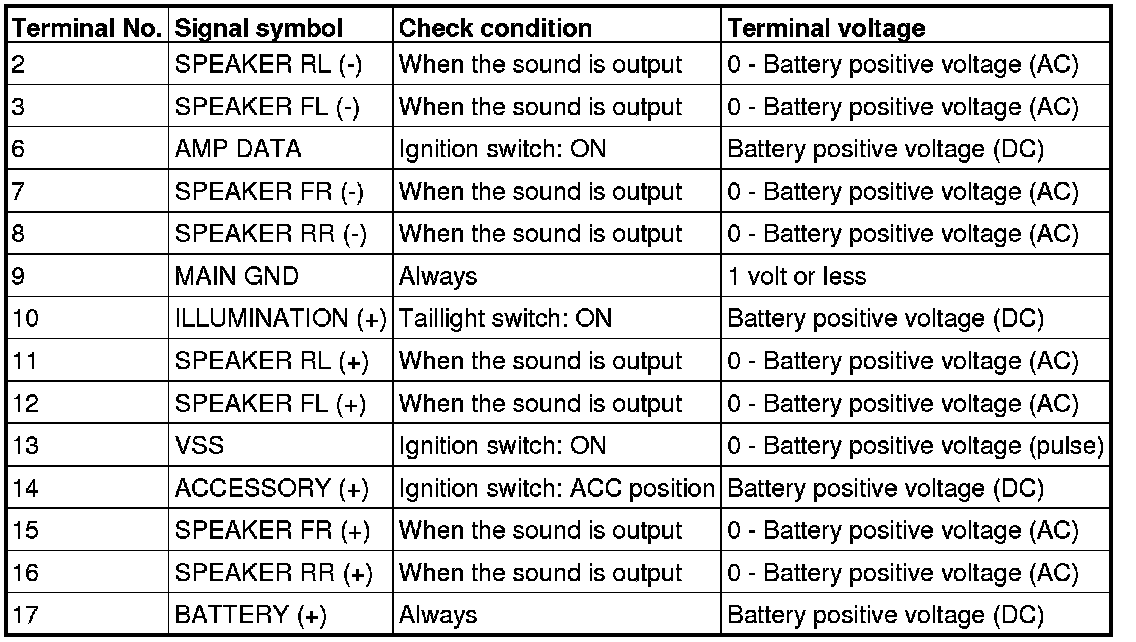

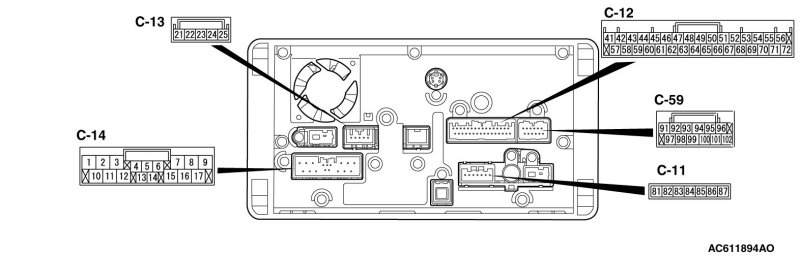

MULTIVISION DISPLAY

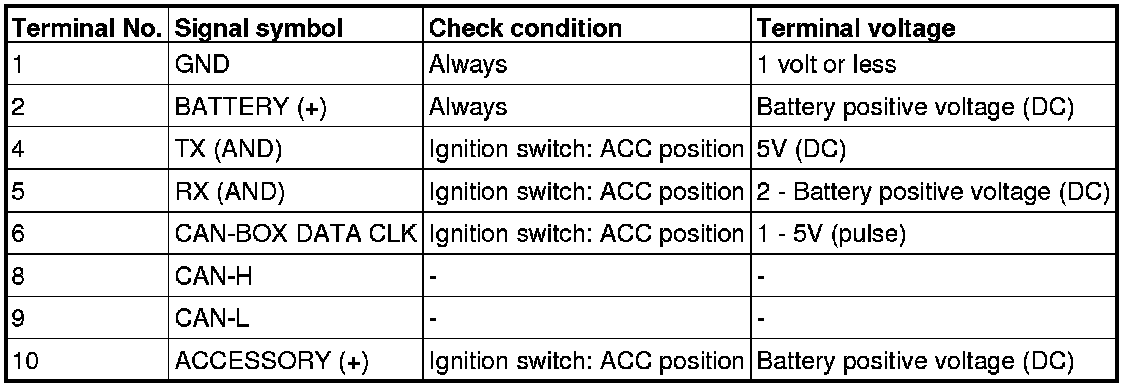

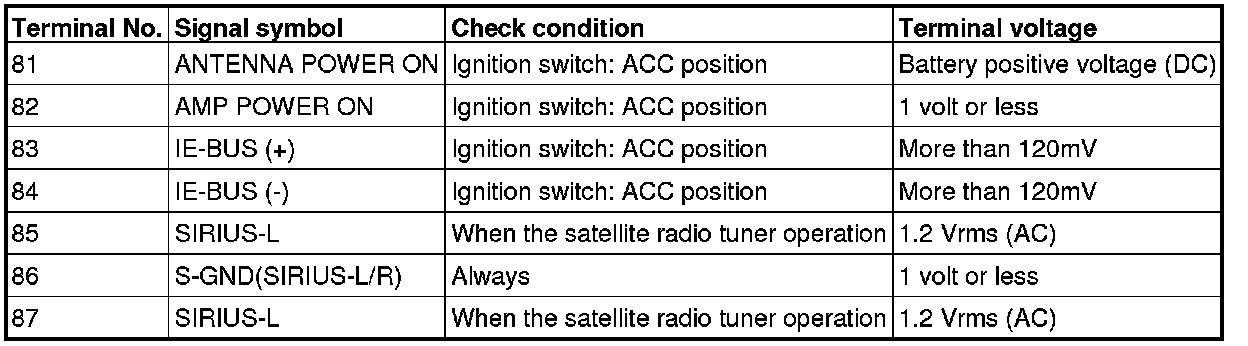

C-11

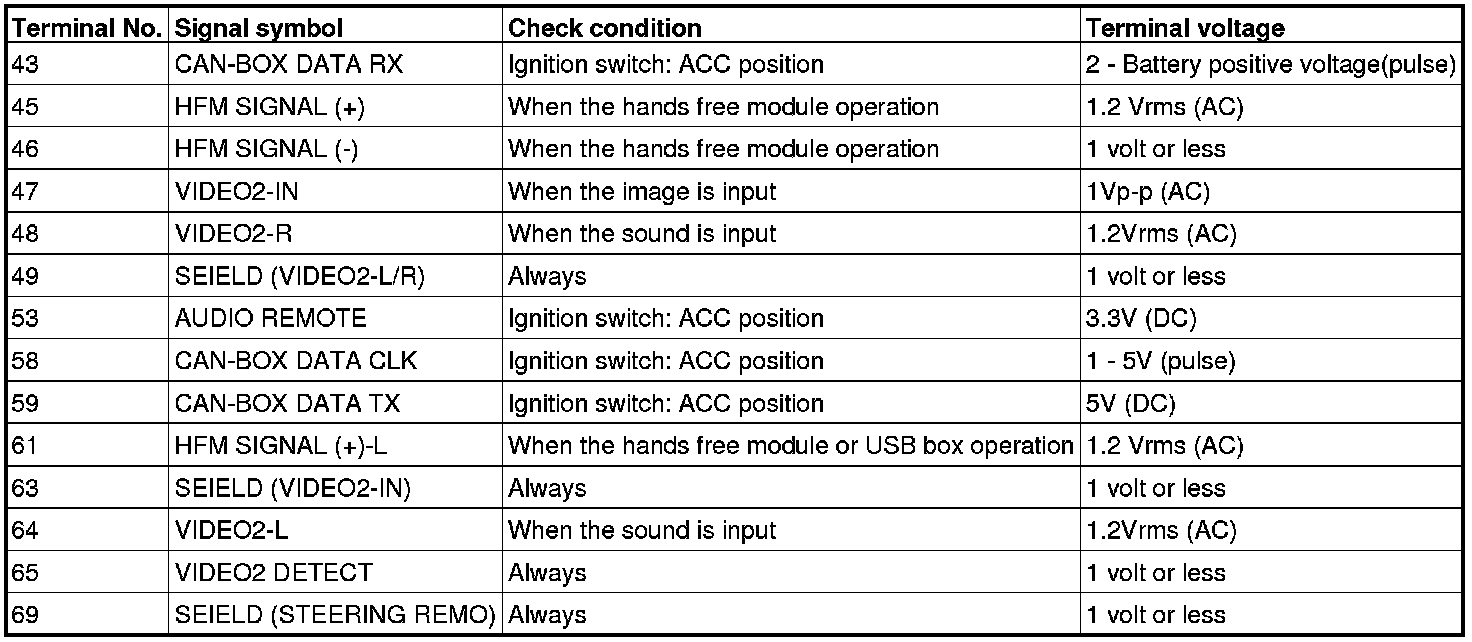

C-12

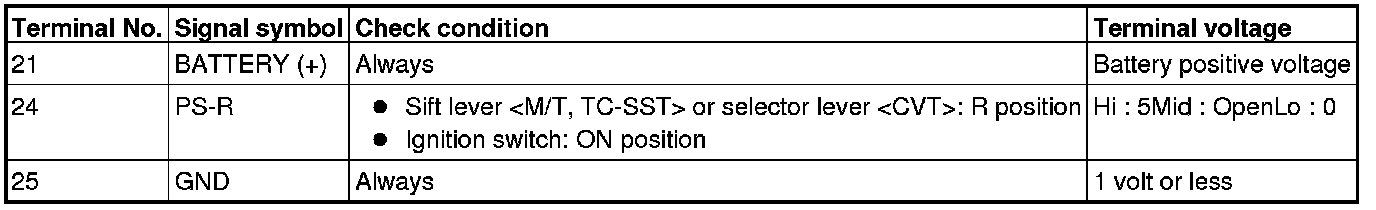

C-13





C-14

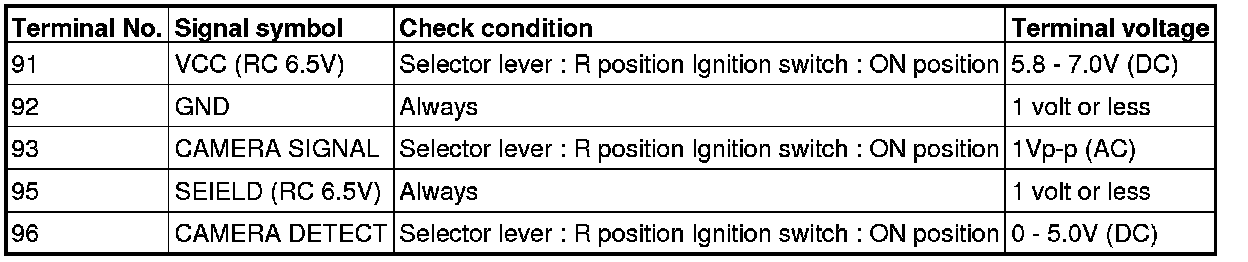

C-59





CAN BOX UNIT





C-108
