Accessories and Optional Equipment: Service and Repair

REMOVAL AND INSTALLATION

Multivision display

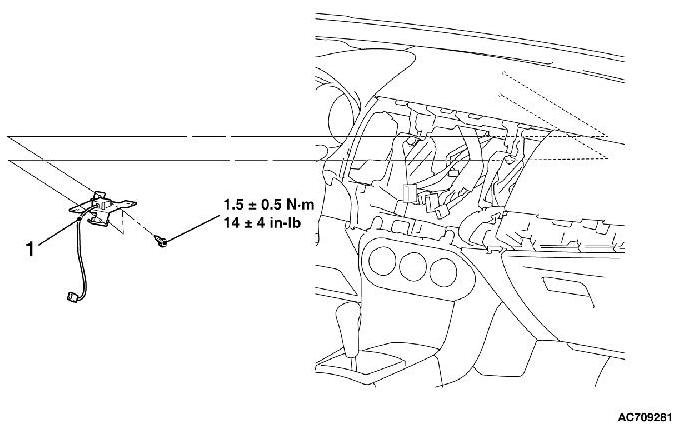

GPS antenna

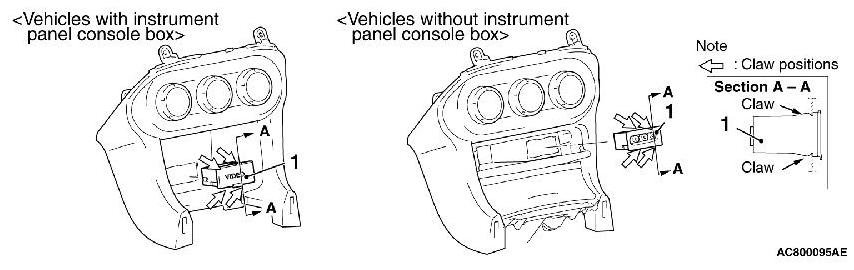

Audio and video adaptor













INSTALLATION SERVICE POINT

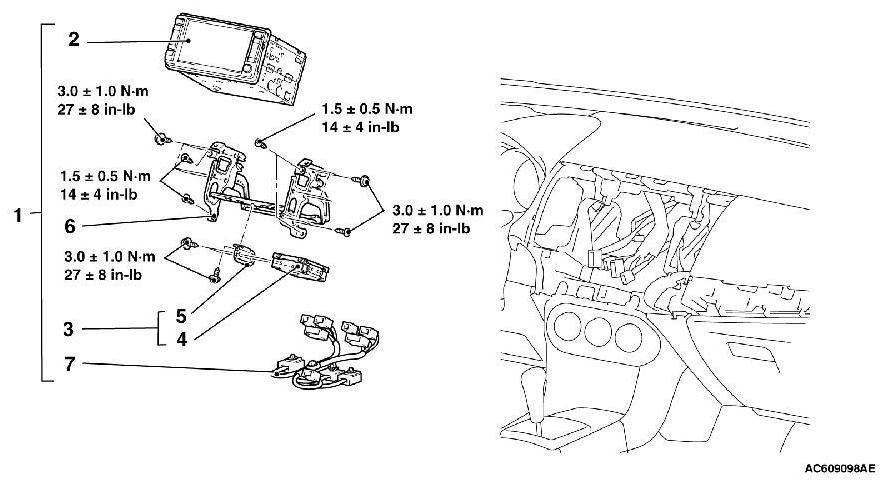

]]A[[ MULTIVISION DISPLAY

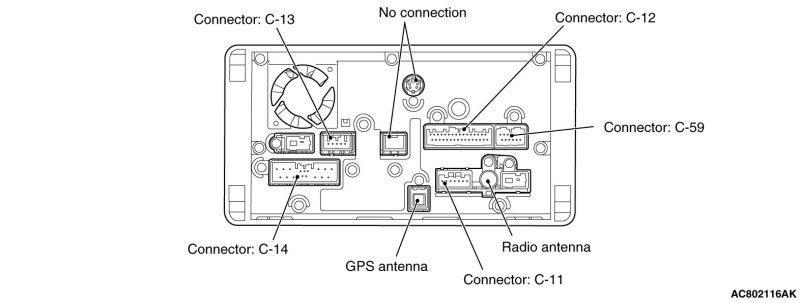

The connectors, antenna and cables connected to the multivision display are shown in the figure.
