Speaker: Service and Repair

REMOVAL AND INSTALLATION

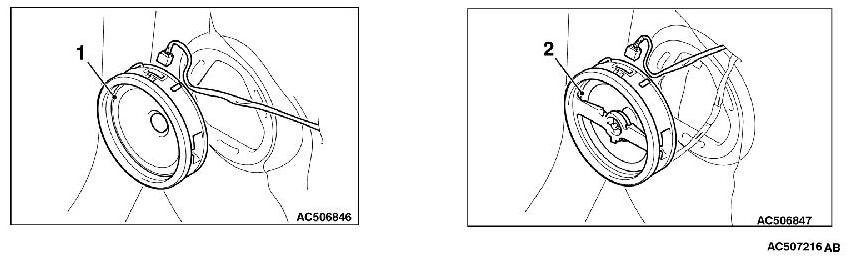

DOOR SPEAKER

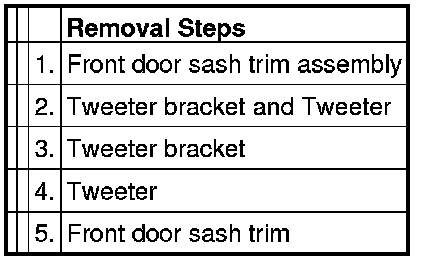

TWEETER

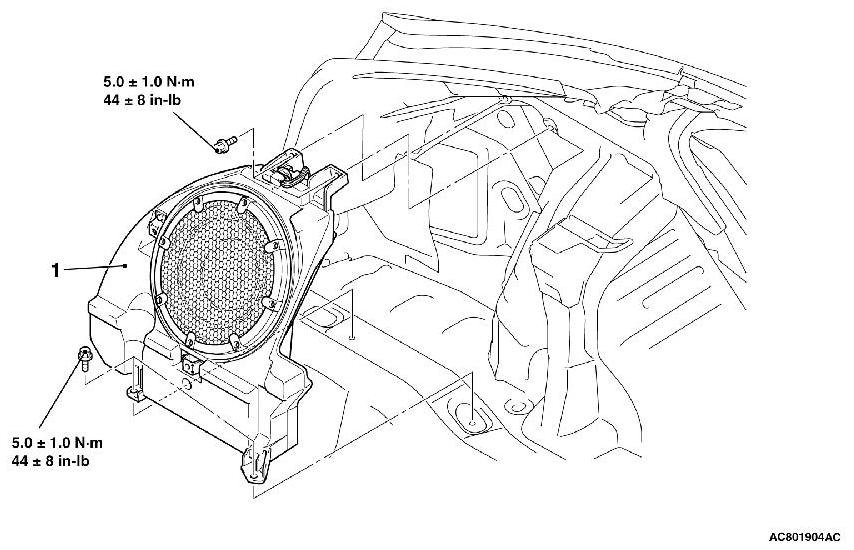

SUBWOOFER [LANCER]

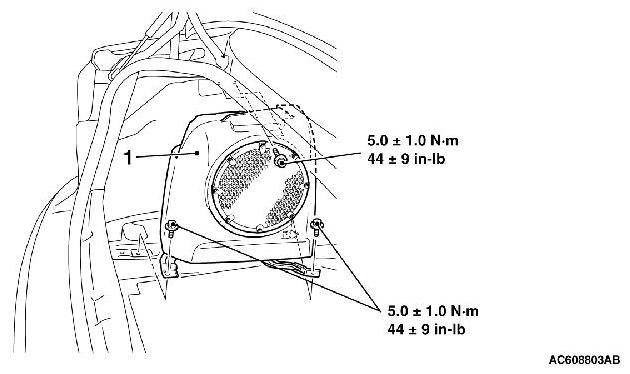

SUBWOOFER [LANCER SPORTBACK]













REMOVAL SERVICE POINT

[[A]]

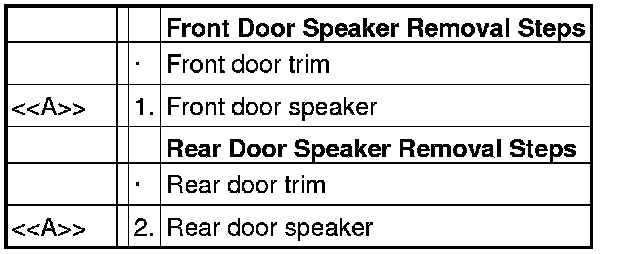

REMOVAL OF FRONT DOOR SPEAKER/REAR DOOR SPEAKER

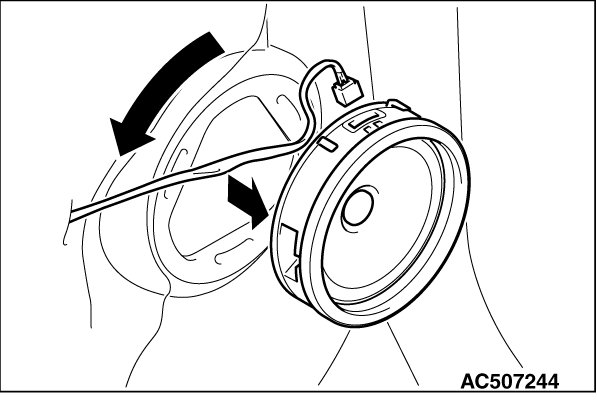

Disconnect the connector, and remove by twisting as shown in the figure.

INSTALLATION SERVICE POINT

]]A[[
REAR SPEAKER BOX ASSEMBLY INSTALLATION

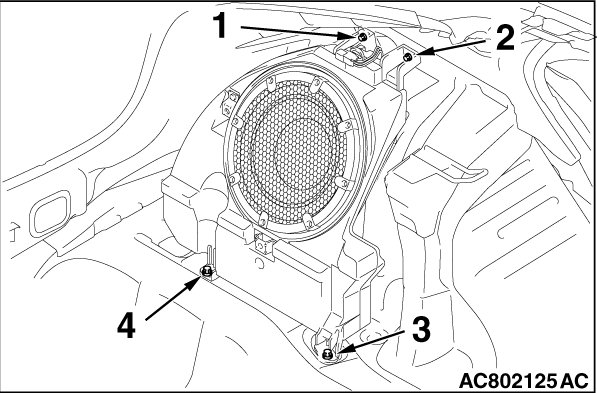

Tighten the bolts in the order of 1, 2, 3, 4 shown in the figure.
