Rear Vision Camera: Description and Operation

GENERAL INFORMATION

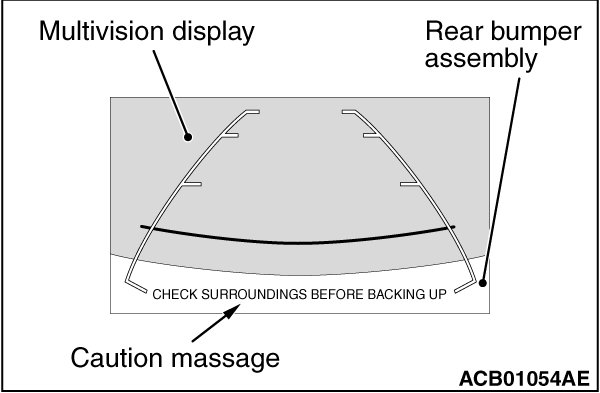

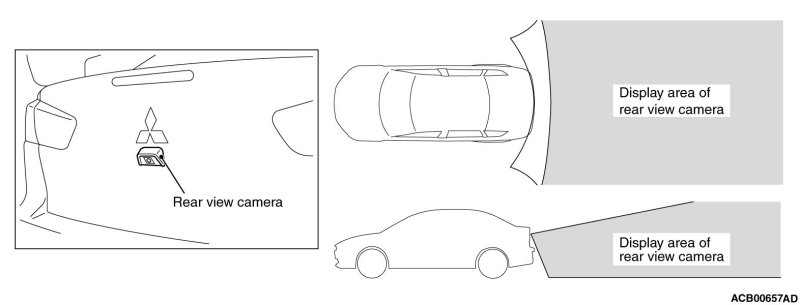

A rear view camera has been installed to the trunk lid panel assembly. The rear view camera displays the rear view image of the vehicle on the multivision display or the interior mirror (with monitor) for easy confirmation of safety when driving backward.
















OPERATION

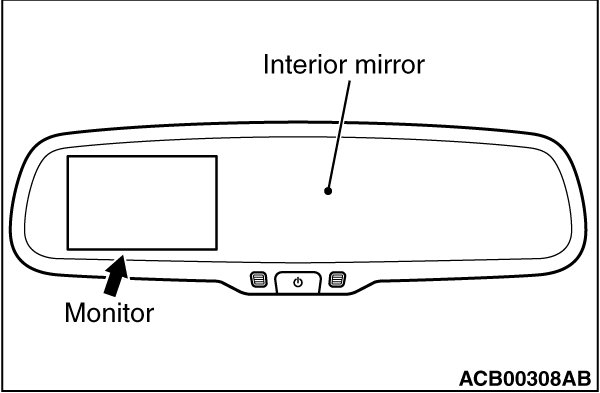

- When the shift lever [M/T, TC-SST] or selector lever [CVT] is moved to the "R" (Reverse) position with the ignition switch "ON", the rear view monitor (integrated in interior mirror) displays the rear view via the rear view camera automatically.

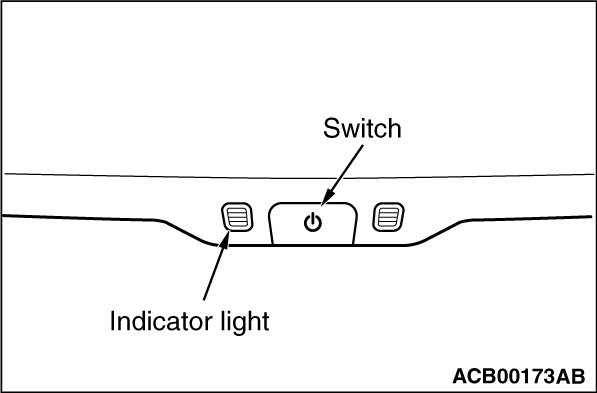

- The indicator illuminates green when the rear view monitor (integrated in interior mirror) displays the rear view.

- Functions can be changed over each time the switch is pressed.

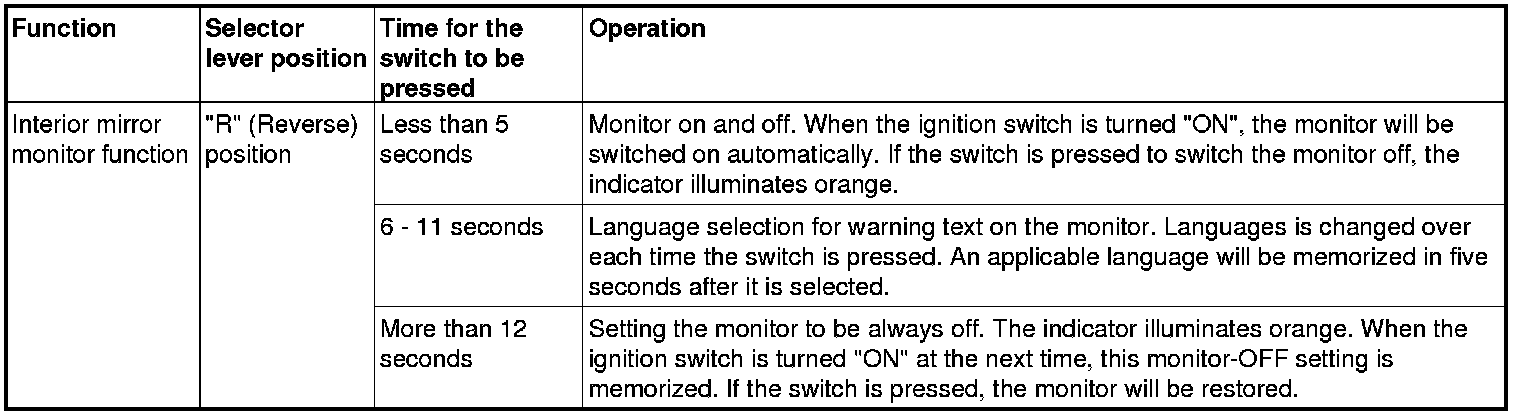

Switch operation and system operation
