General Specification(s)

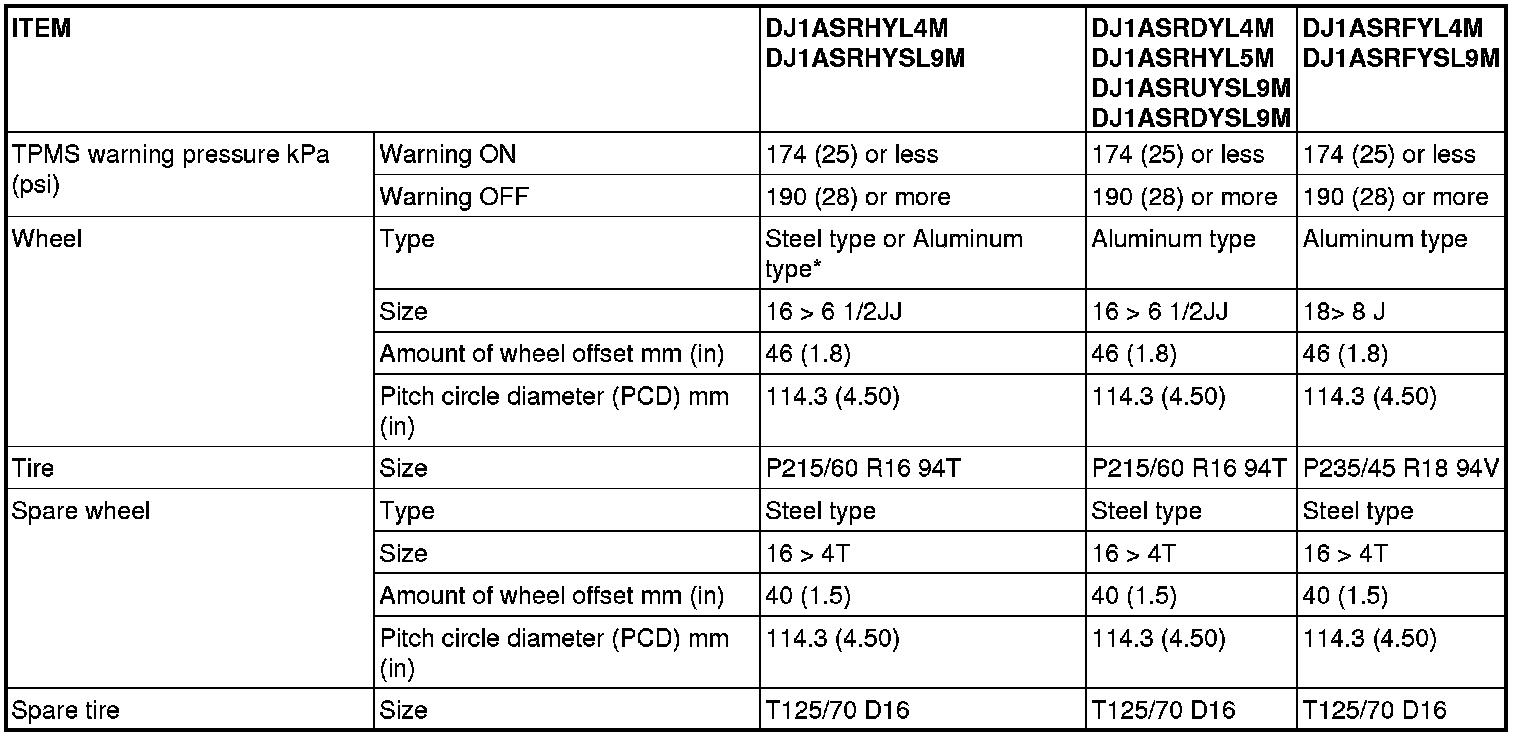

GENERAL SPECIFICATIONS

[2.4L ENGINE]





NOTE:

- The * mark indicates optional item.
- PCD (Pitch Circle Diameter) indicates the pitch circle diameter of the wheel installation holes.
