Home >> Mitsubishi >> 2012 >> Galant L4-2.4L (4G69) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Engine Mount

Engine Mount

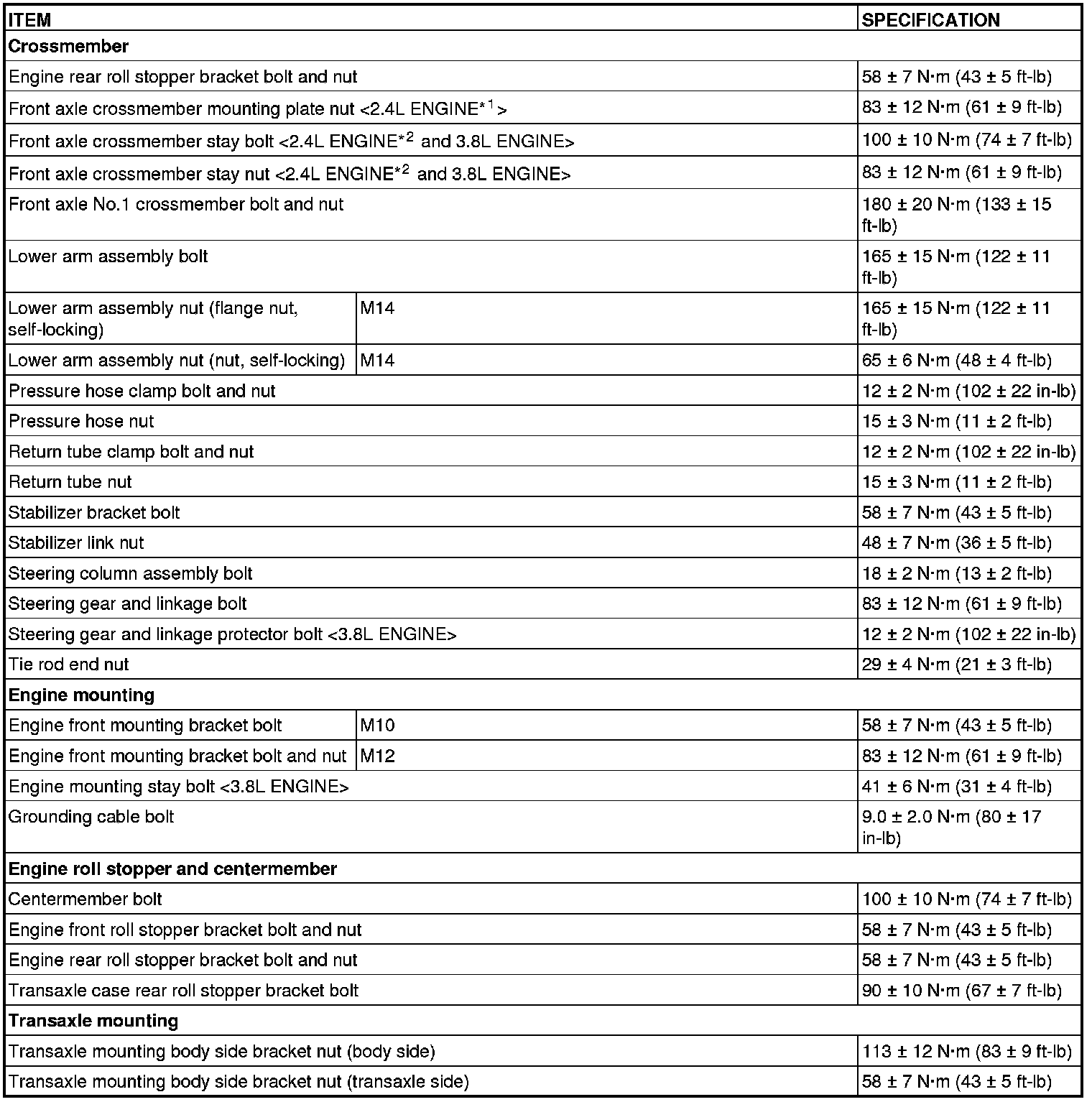

FASTENER TIGHTENING SPECIFICATIONS





NOTE:

- *1: Vehicles without 18 inch wheel
- *2: Vehicles with 18 inch wheel
