Replacement of Replaceable Bulb

BULB REPLACEMENT

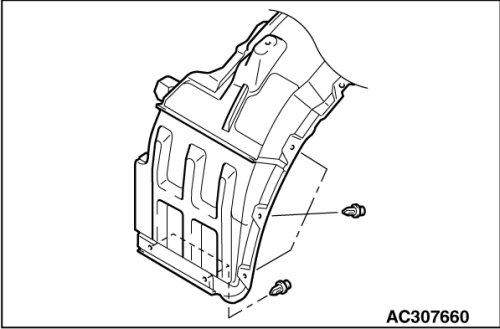

1. Remove the splash shield mounting clips, then remove the splash shield.

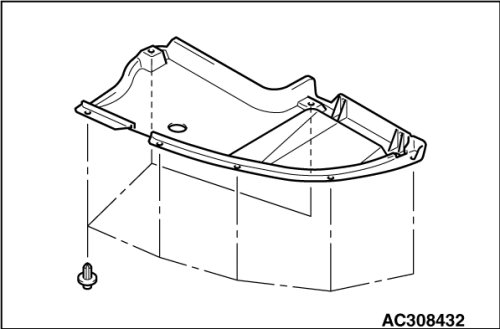

2. Remove the front bumper under cover mounting clips, then remove the front bumper under cover.

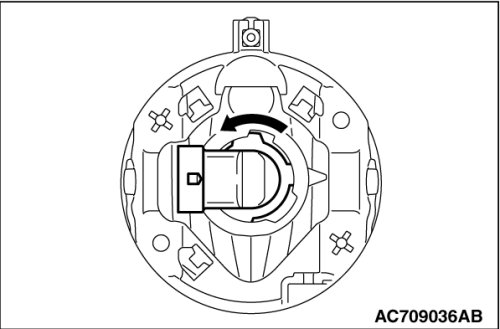

3. Remove the socket and bulb assembly by twisting it counterclockwise.
4. Remove the fog light bulb from the connector.
5. Replace the bulb, and then install the socket and bulb assembly by twisting it clockwise.
