Home >> Mitsubishi >> 2012 >> Galant L4-2.4L (4G69) >> Repair and Diagnosis >> Heating and Air Conditioning >> Sensors and Switches - HVAC >> Ambient Temperature Sensor / Switch HVAC >> Service and Repair >> Ambient Air Temperature Sensor Removal and Installation

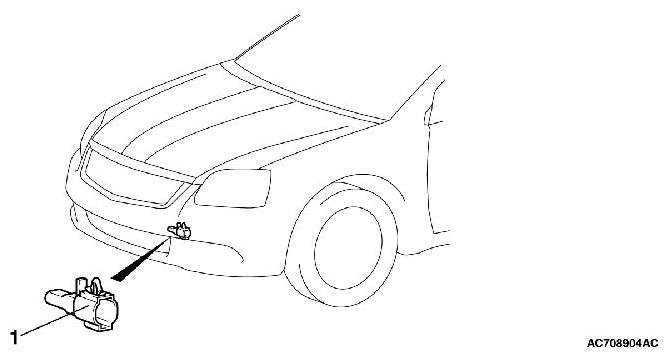

Ambient Air Temperature Sensor Removal and Installation




REMOVAL AND INSTALLATION

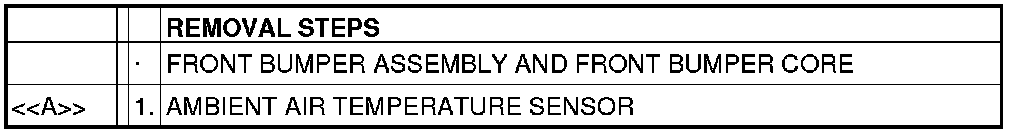

REMOVAL SERVICE POINT

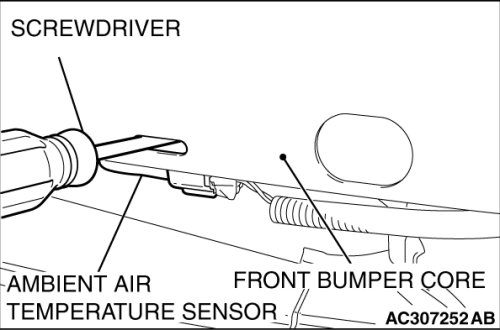

[[A]] AMBIENT AIR TEMPERATURE SENSOR REMOVAL





Insert a screwdriver into the mounting hole of the front bumper core to release the clip, and remove the ambient air temperature sensor.
