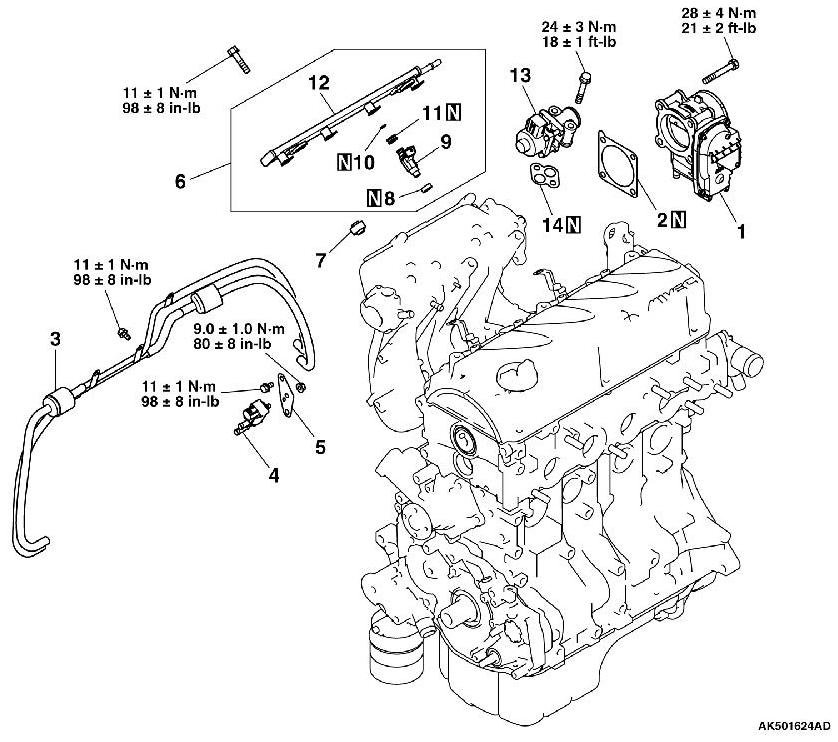

Throttle Body and EGR System Removal and Installation

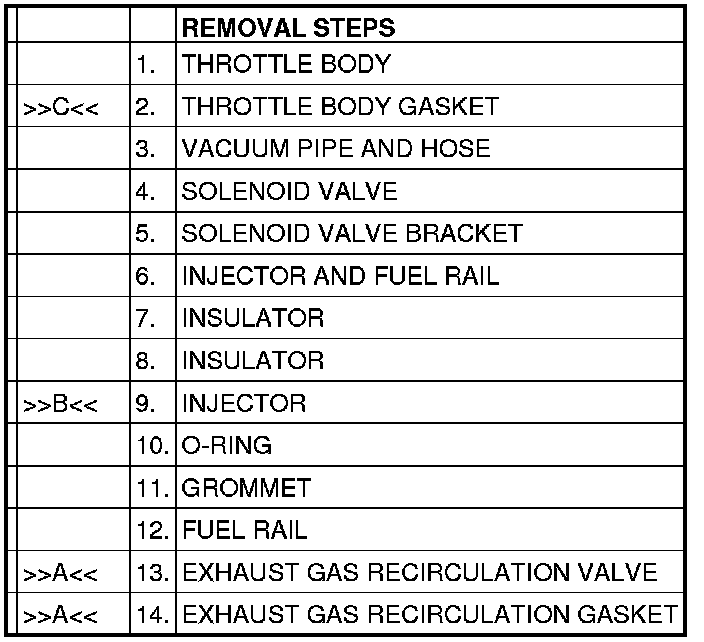

REMOVAL AND INSTALLATION









INSTALLATION SERVICE POINTS

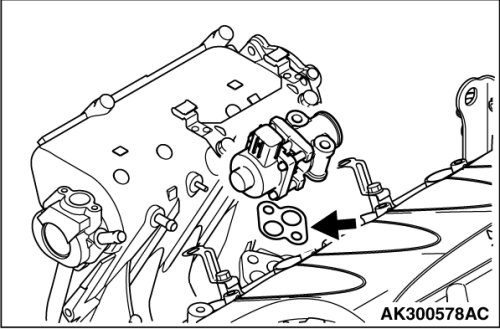

]]A[[ EXHAUST GAS RECIRCULATION VALVE / GASKET INSTALLATION





Install a new gasket in the position shown in the illustration.

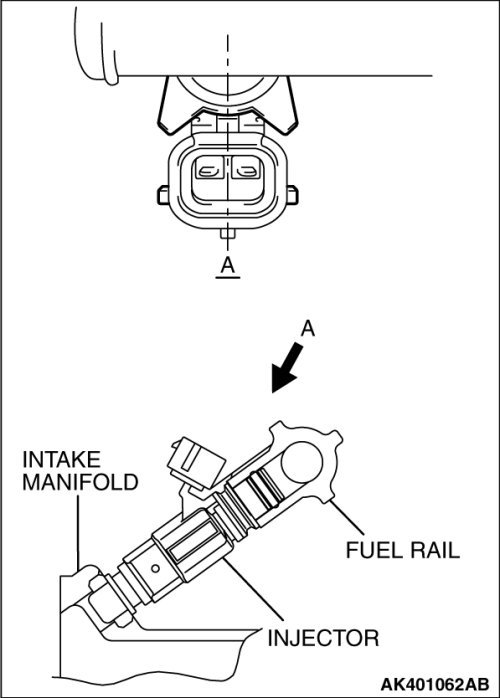

]]B[[ INJECTORS INSTALLATION





1. Apply clean gasoline to the O-ring.
2. Insert the injector into the fuel rail.
3. Make sure the injector rotates smoothly.
If not, remove the injector to check the O-ring for damage, and replace the O-ring if necessary. Then, reinstall the injector and check that it rotates smoothly.

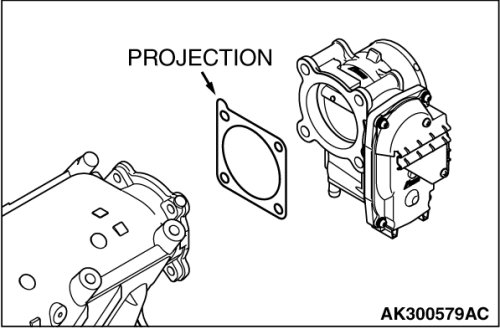

]]C[[ THROTTLE BODY GASKET INSTALLATION





Install a new gasket so that the projection is positioned as shown in the illustration.
