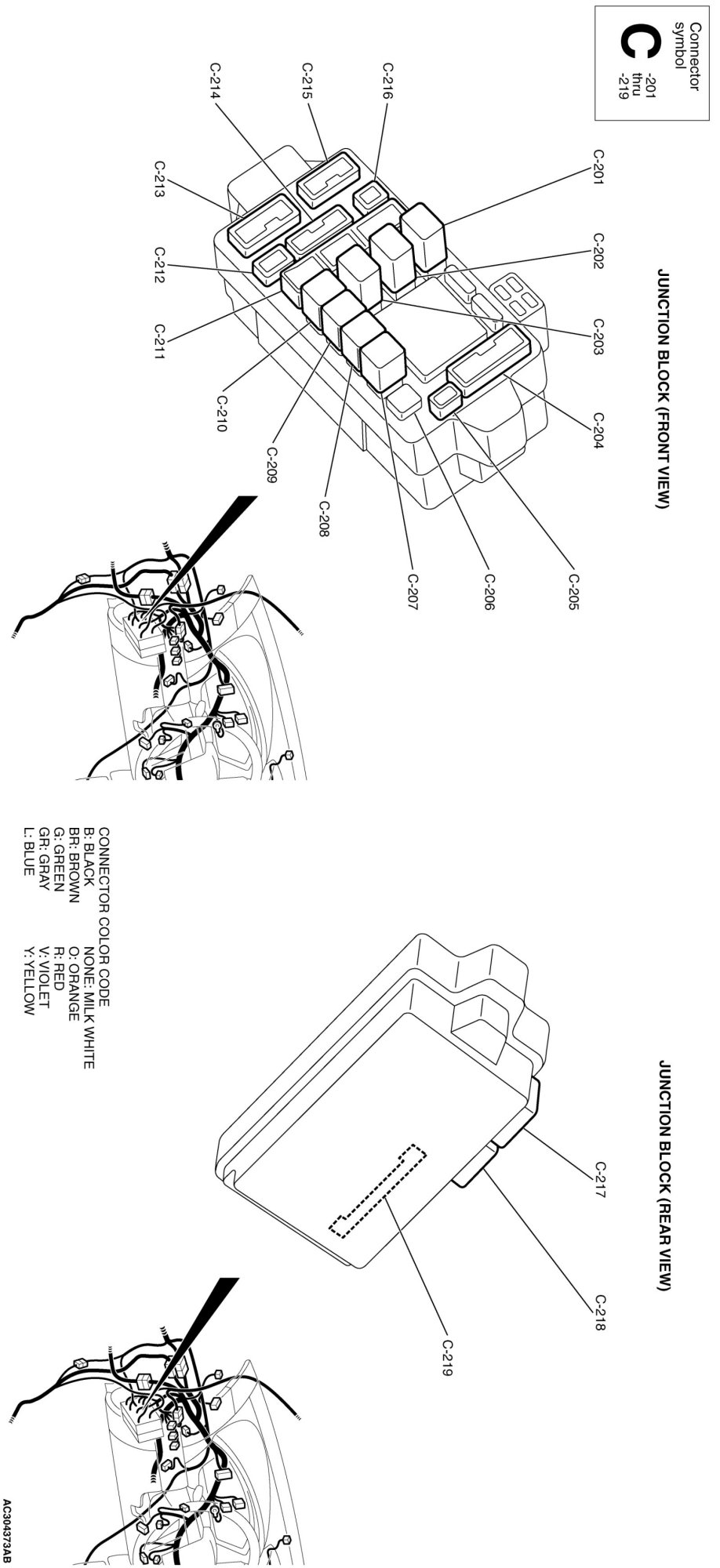

C-201 to C-219

DASH PANEL





C-201 (5) REAR WINDOW DEFOGGER RELAY
C-202 (5) BLOWER RELAY
C-203 (5) POWER WINDOW RELAY
C-204 (15) FLOOR WIRING HARNESS AND JUNCTION BLOCK COMBINATION
C-205 (3) ROOF WIRING HARNESS AND JUNCTION BLOCK COMBINATION
C-206 (4) NOCONNECTION
C-207 (4) HEATED SEAT RELAY
C-208 (4) FUEL PUMP RELAY (2)
C-209 (4) ACCESSORY SOCKET RELAY
C-210 (4) FUEL PUMP RELAY (1)
C-211 (28) INSTRUMENT PANEL WIRING HARNESS AND JUNCTION BLOCK COMBINATION
C-212 (2) FRONT WIRING HARNESS AND JUNCTIONBLOCK COMBINATION
C-213 (13) INSTRUMENT PANEL WIRING HARNESS AND JUNCTION BLOCK COMBINATION
C-214 (14) FRONT WIRING HARNESS AND JUNCTION BLOCK COMBINATION
C-215 (6) INSTRUMENT PANEL WIRING HARNESS AND JUNCTION BLOCK COMBINATION
C-216 (1-B) INSTRUMENT PANEL WIRING HARNESS AND JUNCTION BLOCK COMBINATION
C-217 (24) ETACS-ECU
C-218 (24-GR) ETACS-ECU
C-219 (20) ETACS-ECU
