Front Seat Assembly Disassembly and Assembly

DISASSEMBLY AND ASSEMBLY

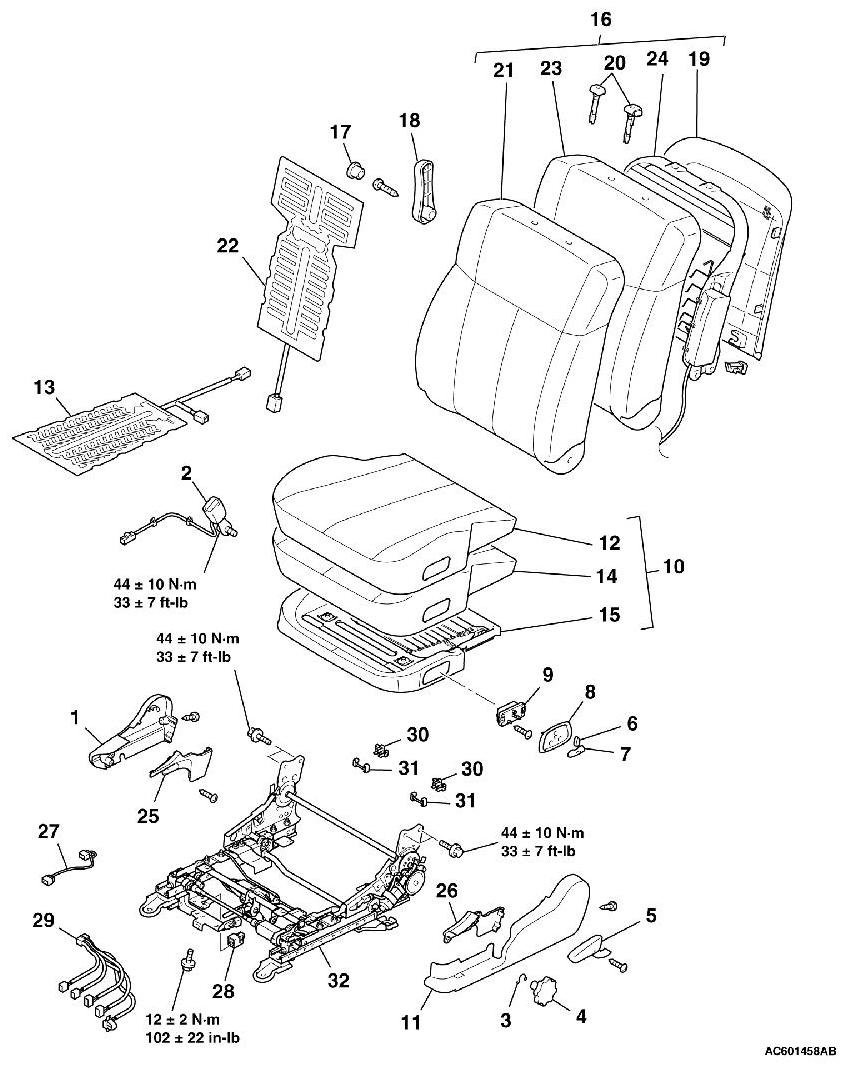

[LH SIDE]

WARNING:
Never attempt to disassemble or repair the seat slide sensor. If faulty, replace it.

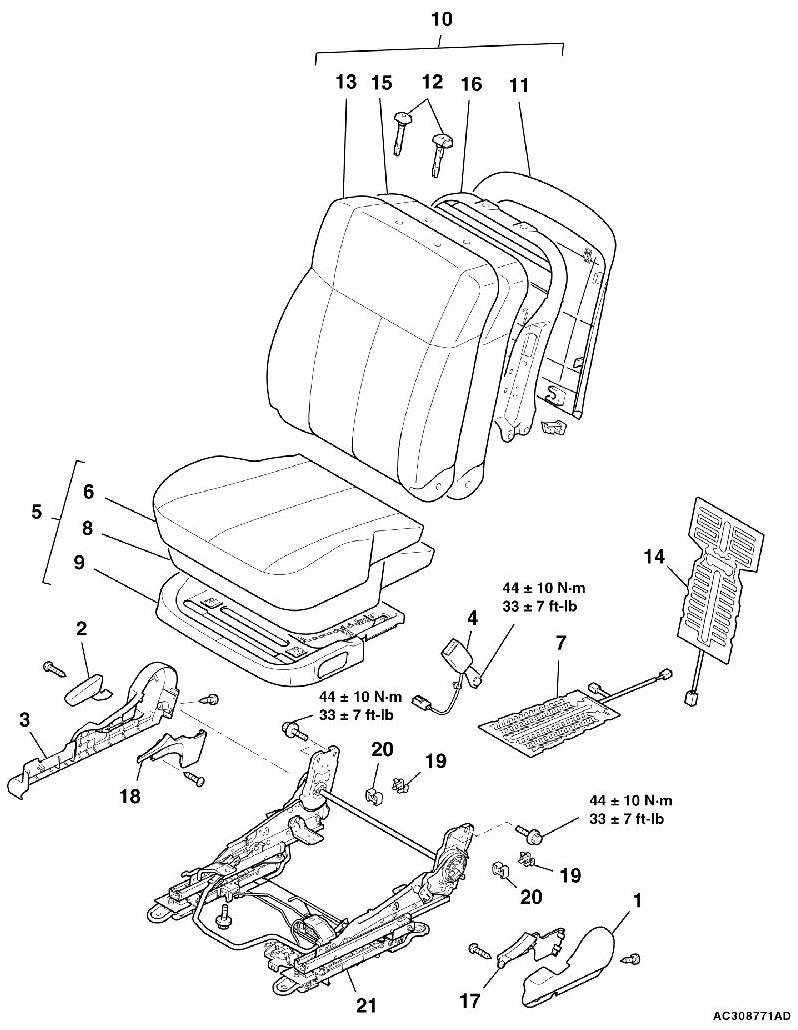

[RH SIDE]

WARNING:

- Never attempt to disassemble or repair the occupant classification-ECU or the occupant classification sensor. If faulty, replace it.
- Do not drop or subject the occupant classification-ECU and occupant classification sensor to impact or vibration. If denting, cracking, deformation, or rust are discovered in the occupant classification-ECU or the occupant classification sensor, replace it with a new occupant classification-ECU or the occupant classification sensor.

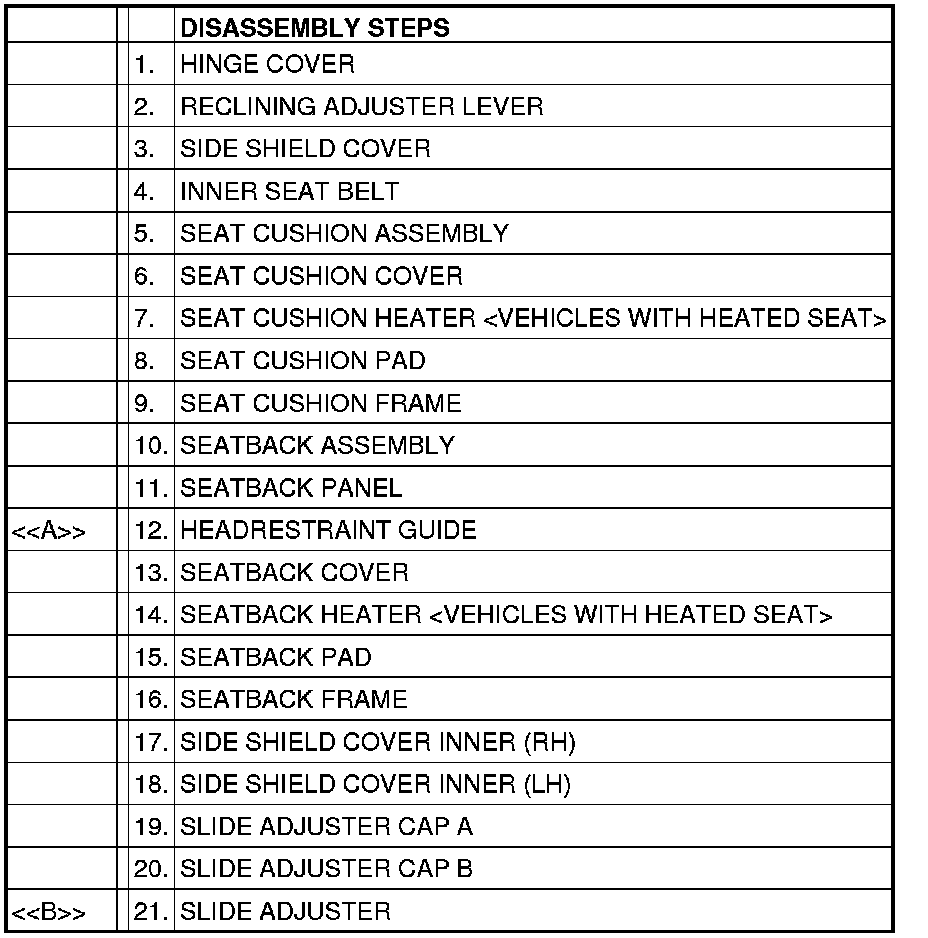

DISASSEMBLY SERVICE POINTS

[[A]] HEAD RESTRAINT GUIDE DISASSEMBLY





[[B]] SLIDE ADJUSTER DISASSEMBLY

WARNING:
Do not remove the occupant classification-ECU and the occupant classification sensor from the slide adjuster.
