Power Door Lock Actuator: Testing and Inspection

INSPECTION

FRONT DOOR LATCH CHECK

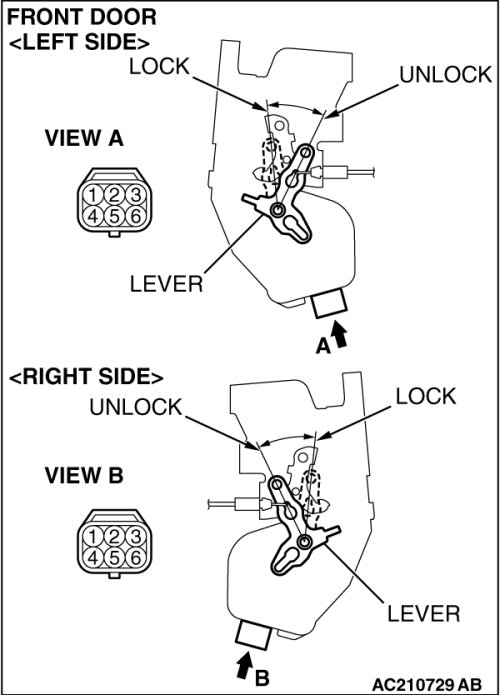

The illustration shows when the door lock actuator is viewed from inside the door.

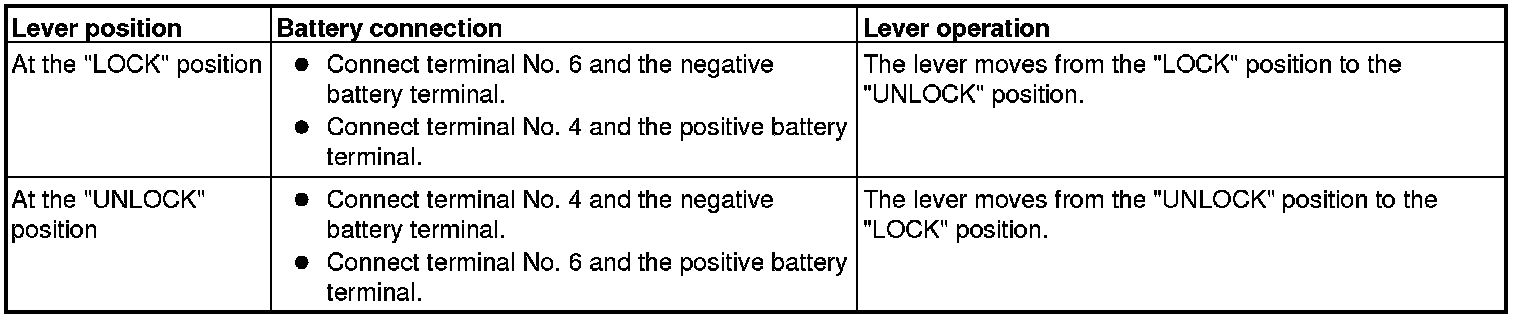

DOOR LOCK ACTUATOR CHECK[ LEFT SIDE]

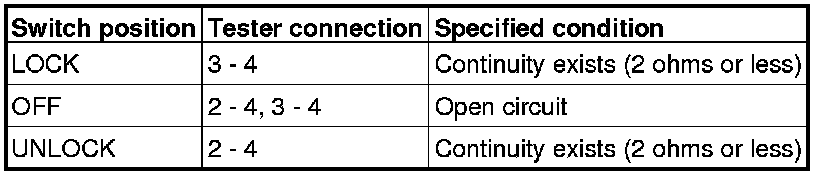

DOOR LOCK ACTUATOR SWITCH CHECK[ LEFT SIDE]

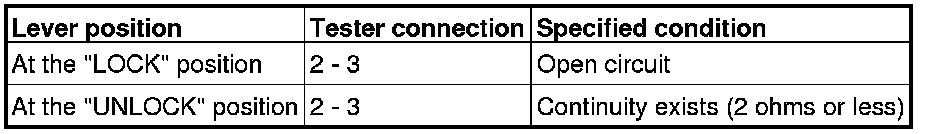

DOOR LOCK ACTUATOR CHECK[ RIGHT SIDE]






DOOR LOCK ACTUATOR SWITCH CHECK[ RIGHT SIDE]






REAR DOOR LOCK ACTUATOR CHECK

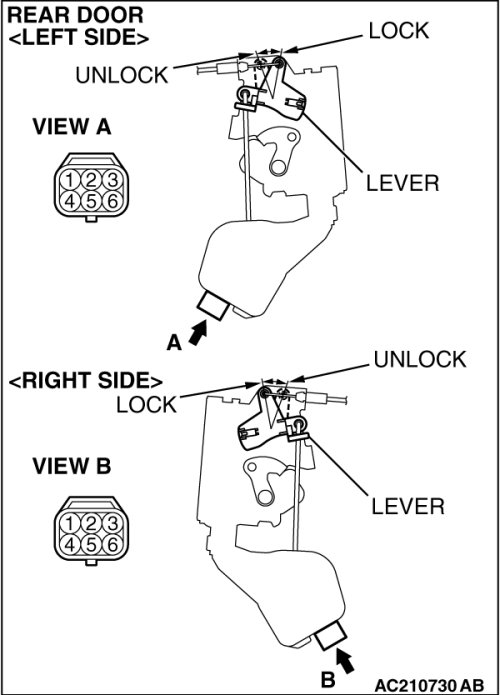

The illustration shows when the door lock actuator is viewed from outside the door.
DOOR LOCK ACTUATOR CHECK[ LEFT SIDE]





DOOR LOCK ACTUATOR CHECK[ RIGHT SIDE]

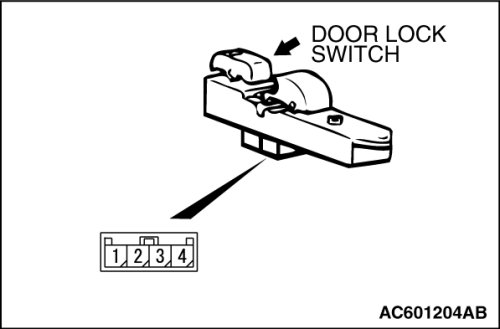

CENTRAL DOOR LOCK SWITCH CONTINUITY CHECK

Remove the power window switch (Refer to Service and Repair).

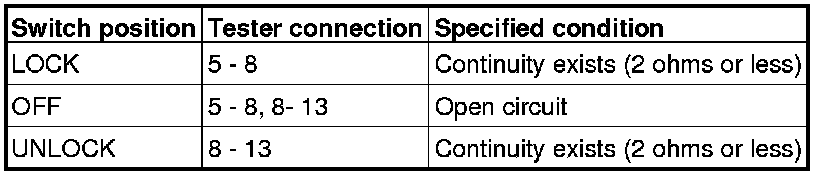

[DRIVER'S SIDE]










[PASSENGER'S SIDE]
