Inspection Procedure D-5

INSPECTION PROCEDURE D-5: Power Window: Front or rear passenger's power windows do not work at all by operating the power window main switch.

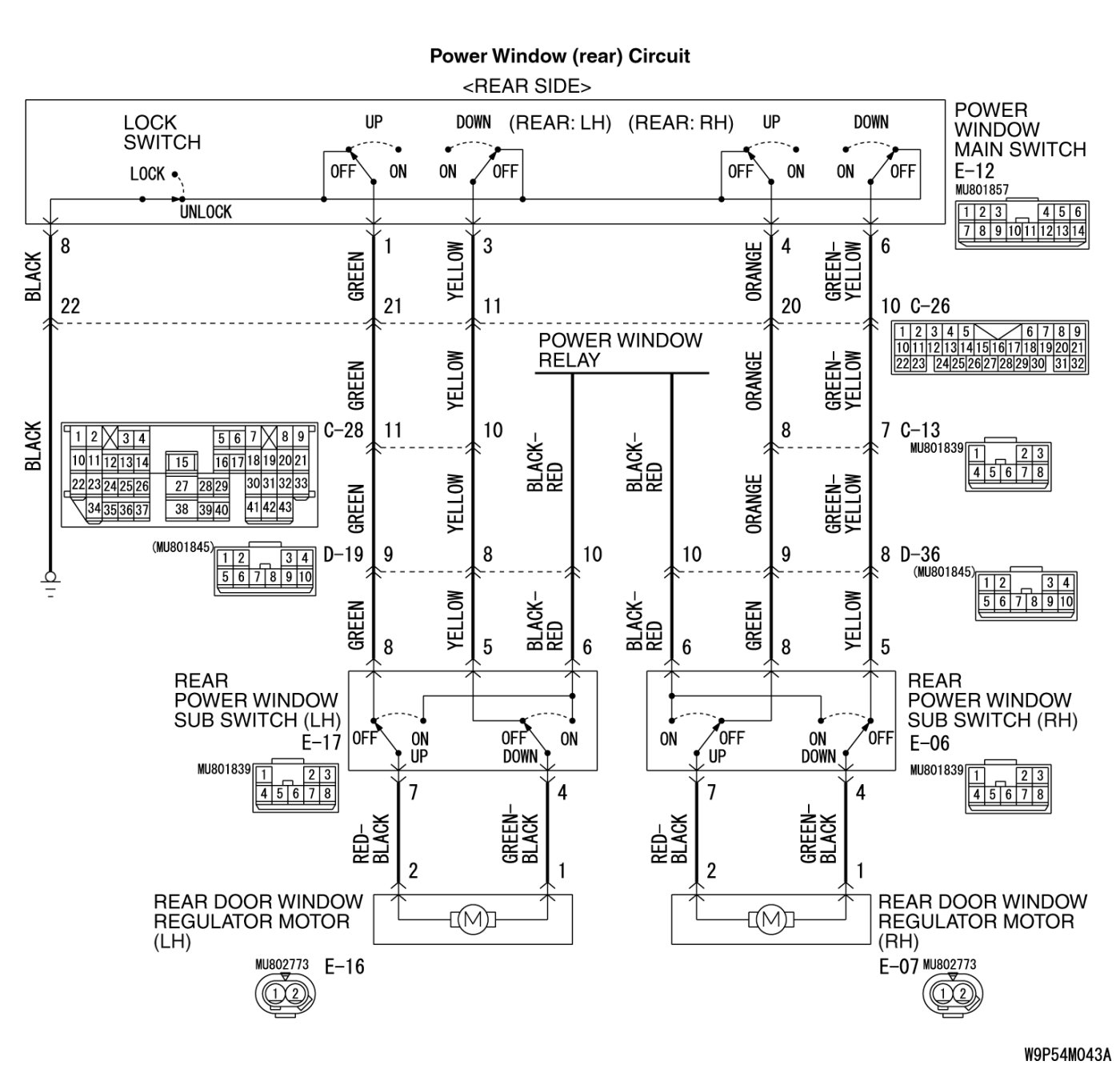

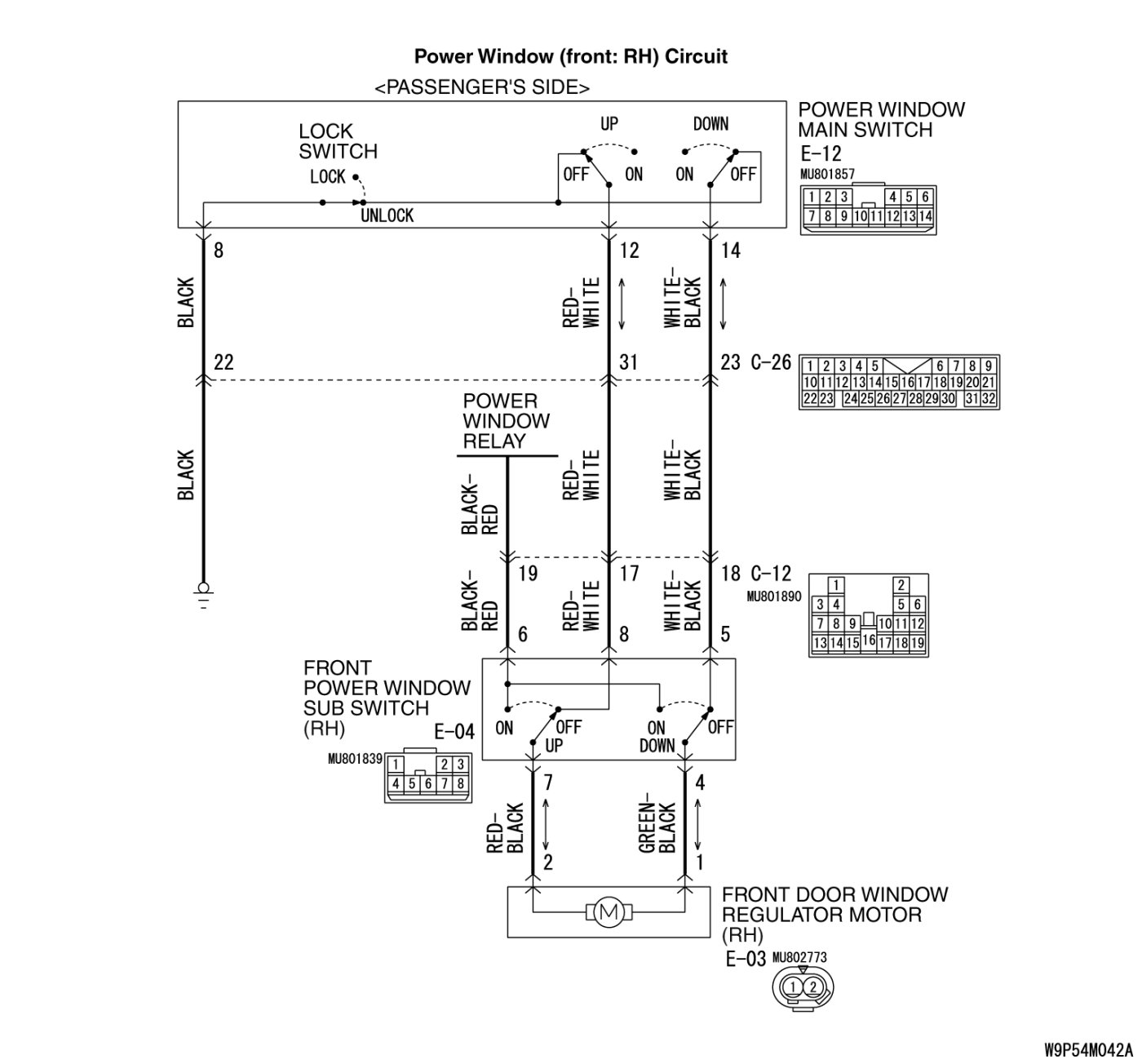

CIRCUIT OPERATION

When you operate each power window switch for front or rear passengers (incorporated in the power window main switch), the corresponding power window motor operates, opening or closing each power window.

TECHNICAL DESCRIPTION (COMMENT)

If the corresponding power window opens and closes normally when each power window sub-switch is operated, the power window main switch may be defective.

TROUBLESHOOTING HINT

The power window main switch may be defective

DIAGNOSIS

Check that power window sub switches operate normally.

Q. A power window cannot work by using the power window main switch. Can you operate the power window by using the corresponding power window sub switch?

YES Replace the power window main switch. Check that the front or rear passenger's power window can work normally by means of power window main switch.
NO Refer to Symptom Chart Symptom Chart before resolving this trouble.
