Crankshaft Main Bearing

Crankshaft Main Bearing

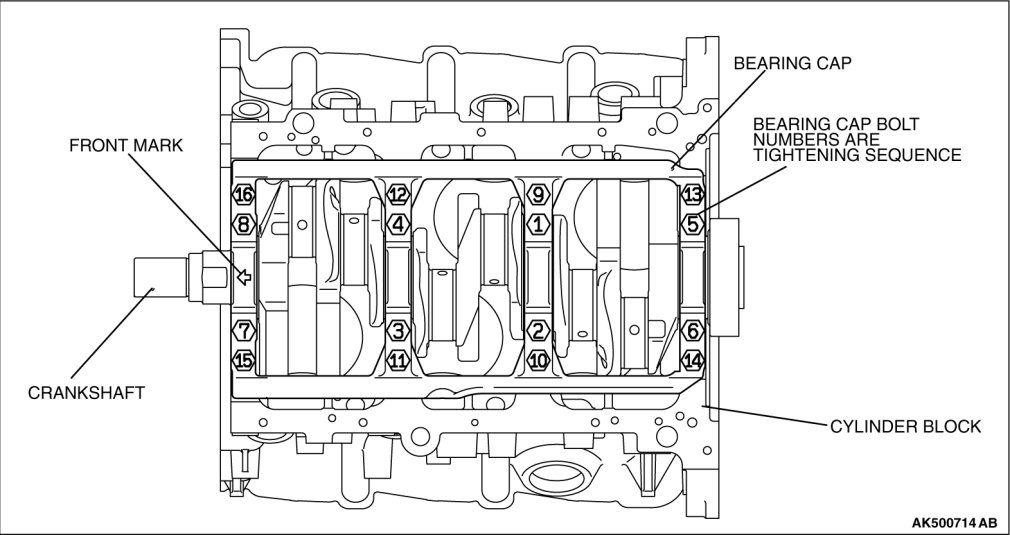

Tightening torque 74 ± 4 Nm (54 ± 3 ft-lb)

Crankshaft journal oil clearance mm (in)

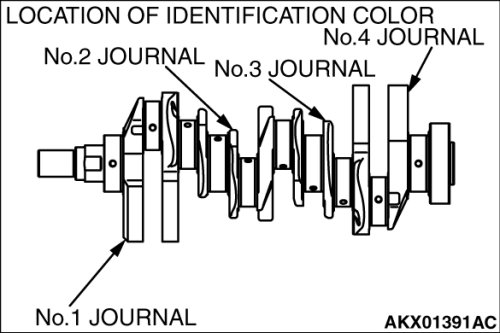

Number 1, 4
Standard Value 0.012 - 0.030 (0.0005 - 0.0012)
Limit 0.1 (0.003)

Number 2, 3
Standard Value 0.018 - 0.036 (0.0007 - 0.0014)
Limit 0.1 (0.003)
