Removal and Replacement

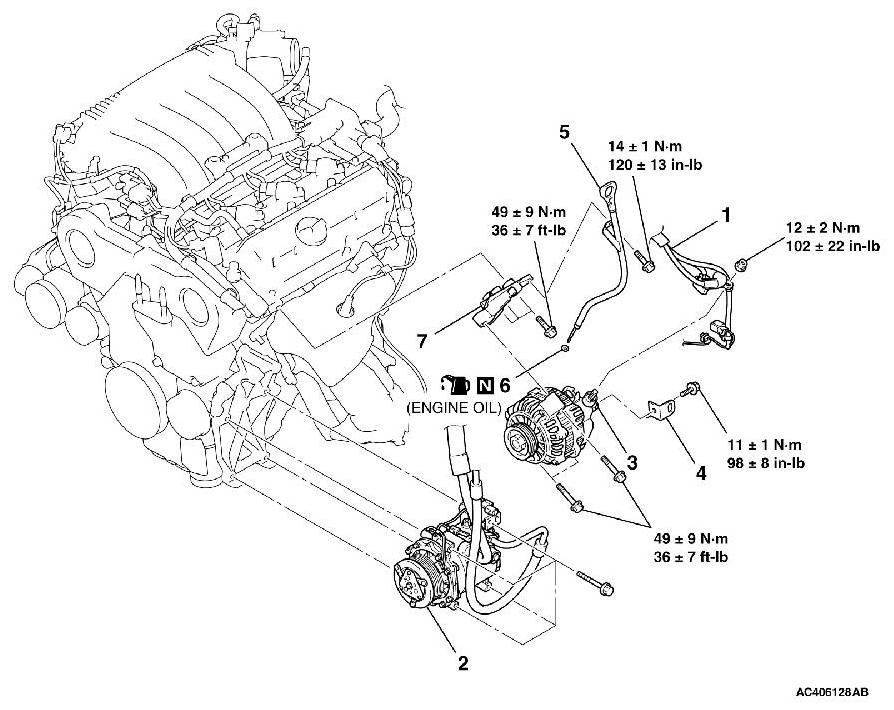

REMOVAL AND INSTALLATION [3.8L ENGINE]

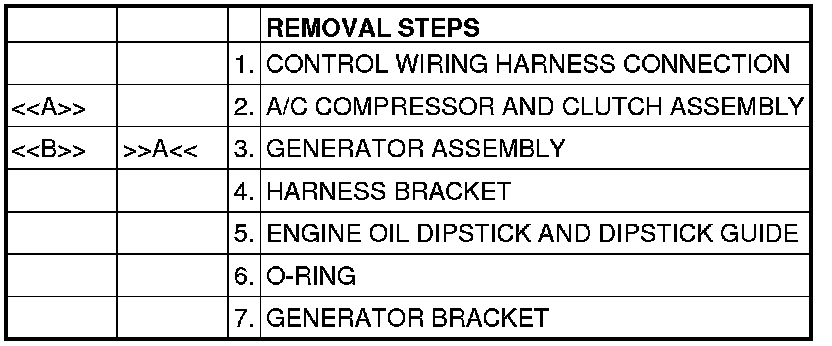

REMOVAL SERVICE POINTS

[[A]] A/C COMPRESSOR AND CLUTCH ASSEMBLY REMOVAL

1. With the hose installed, remove the A/C compressor and clutch assembly from the bracket.

2. After removing the A/C compressor and clutch assembly, secure it with a cord in a location where it does not interfere with generator assembly removal.

[[B]] GENERATOR ASSEMBLY REMOVAL

Move the A/C compressor assembly to one side, and then remove the generator assembly from under the vehicle.

INSTALLATION SERVICE POINT

]]A[[ GENERATOR ASSEMBLY INSTALLATION

1. Install the generator assembly to the generator bracket.

2. Tighten the generator assembly mounting bolts by hand.

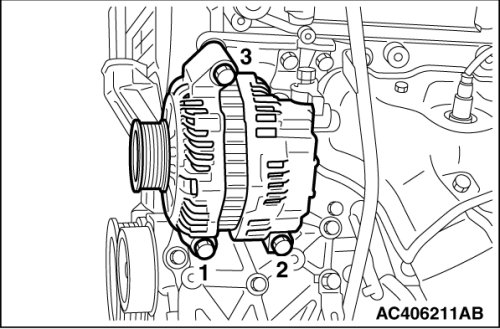

3. Tighten the generator assembly mounting bolts to the specified torque in the order shown.
Tightening torque: 49± 9Nm (36± 7 ft-lb)
