Fastener Tightening Specifications

Intake Manifold

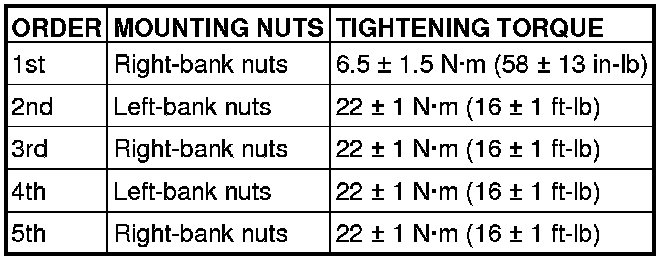

Tighten the intake manifold mounting nuts by the following procedure.





Intake Manifold Plenum Bolt 22 ± 1 Nm (16 ± 1 ft-lb)

Intake Manifold Plenum Stay Bolt
M8 22 ± 1 Nm (16 ± 1 ft-lb)
M10 48 ± 5 Nm (35 ± 4 ft-lb)
