Fuel Injector: Testing and Inspection

INJECTOR CHECK

[Right bank side (number 1, 3, 5 cylinders)]

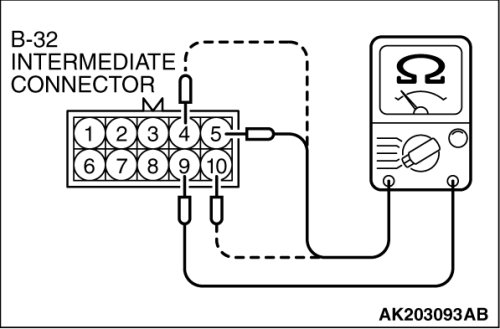

1. Disconnect the intermediate connector B-32.





2. Measure the resistance between the injector intermediate connector terminals.

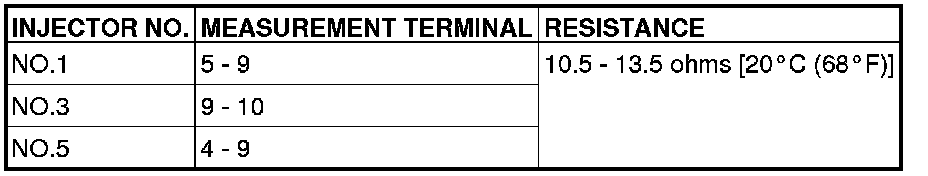

Standard value:

3. Connect the injector intermediate connector.

[Left bank side (number 2, 4, 6 cylinders)]

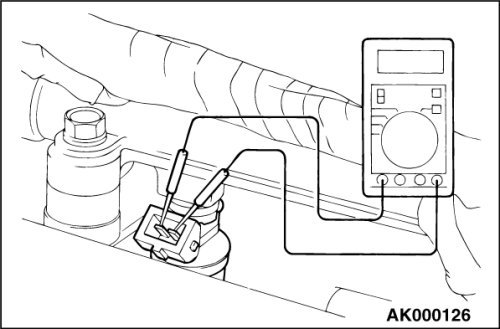

1. Disconnect the injector connector.
2. Measure the resistance between injector side connector terminals 1 and 2.
Standard value: 10.5 - 13.5 ohms [at 20°C (68°F)]
3. Connect the injector connector.
