Water Pump and Water Hose Removal and Installation

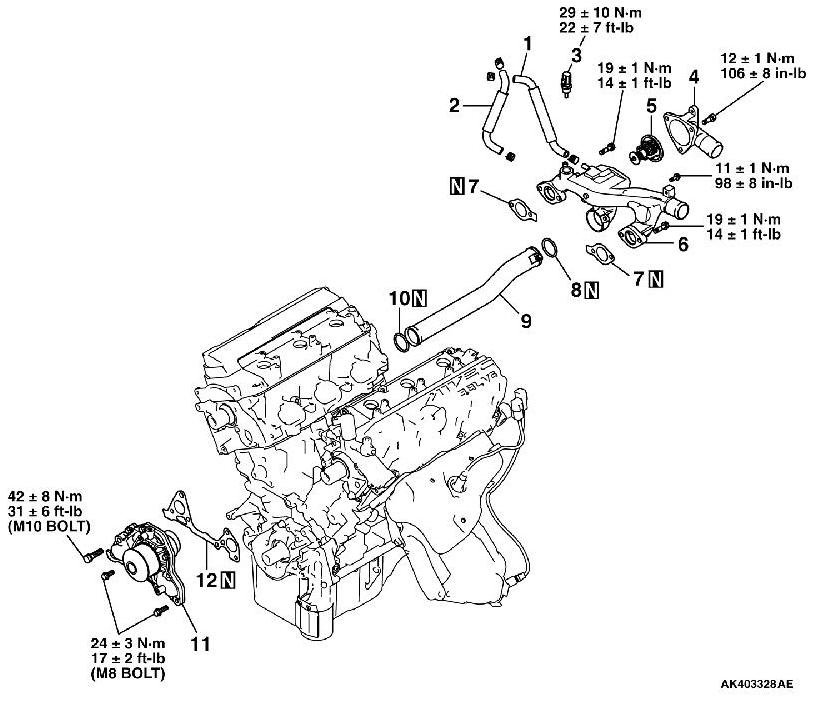

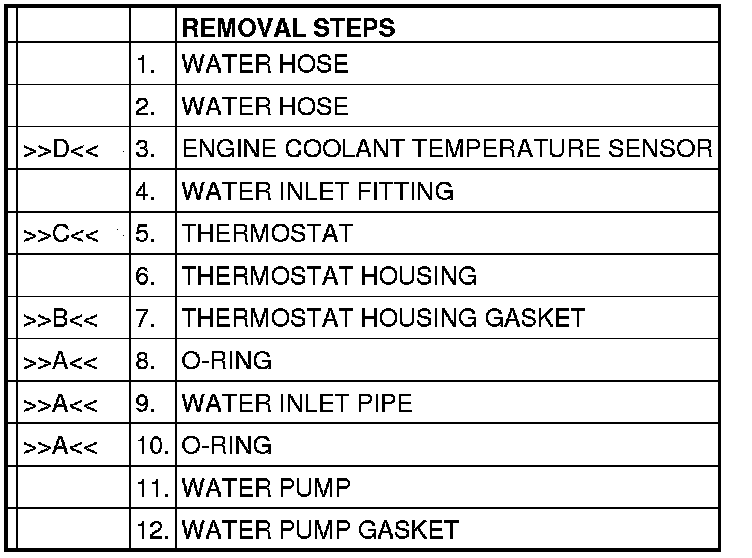

REMOVAL AND INSTALLATION









INSTALLATION SERVICE POINTS

]]A[[ O-RING AND WATER INLET PIPE INSTALLATION





CAUTION:
Keep the O-ring free of oil or grease.

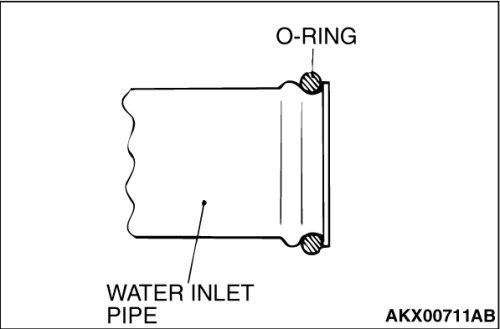

1. Attach a new O-ring to each end of the water inlet pipe.
2. Wet the O-ring with water.
3. Insert the front end of the pipe into the water pump.

]]B[[ THERMOSTAT HOUSING GASKET INSTALLATION

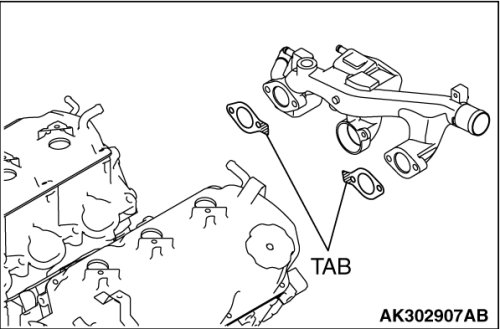

Install the thermostat housing gasket so that the tab is positioned as shown in the illustration.

]]C[[ THERMOSTAT INSTALLATION





1. Check that the rubber ring is free from damage and seated correctly in the thermostat flange.

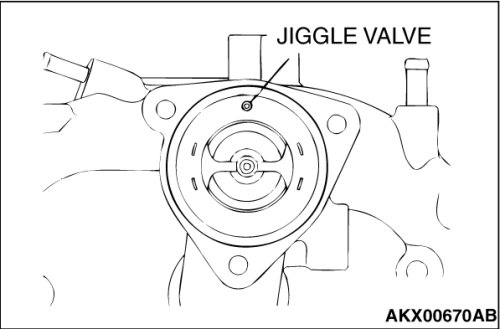

2. Install the thermostat as shown in the illustration. The jiggle valve must be at the top position.

]]D[[ SEALANT APPLICATION TO ENGINE COOLANT TEMPERATURE SENSOR

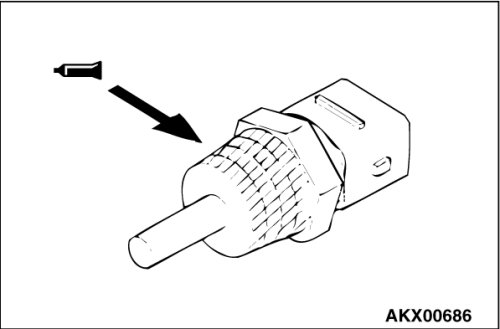

Apply sealant (3M(TM) AAD Part number 8731 or equivalent) to the engine coolant temperature sensor.
