Intake Manifold Plenum and Throttle Body Assembly

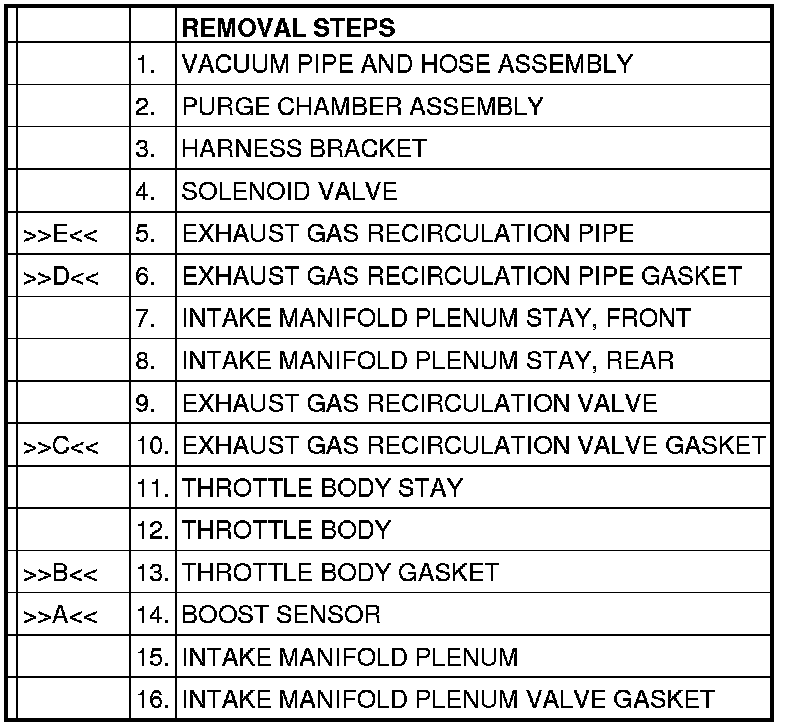

REMOVAL AND INSTALLATION









INSTALLATION SERVICE POINT

]]A[[
BOOST SENSOR INSTALLATION

CAUTION:

- Do not strike or drop the sensor.
- Never use a sensor that has been dropped.

]]B[[
THROTTLE BODY GASKET INSTALLATION

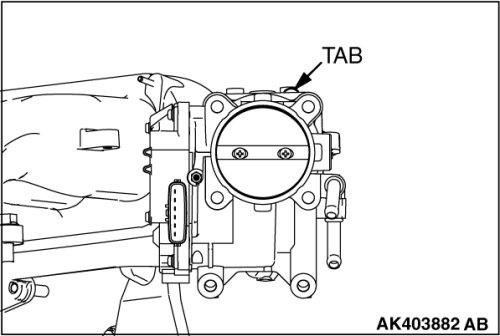

Install the throttle body gasket so that the tab is positioned as shown in the illustration.

]]C[[
EXHAUST GAS RECIRCULATION VALVE GASKET INSTALLATION

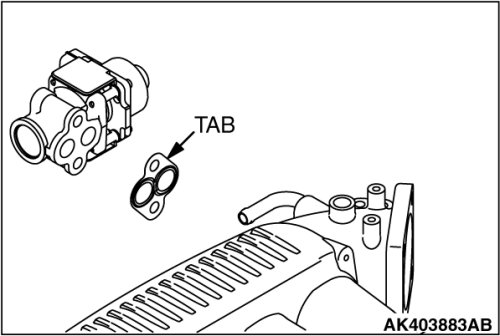

Install the exhaust gas recirculation valve gasket so that the tab is positioned as shown in the illustration.

]]D[[
EXHAUST GAS RECIRCULATION PIPE GASKET INSTALLATION

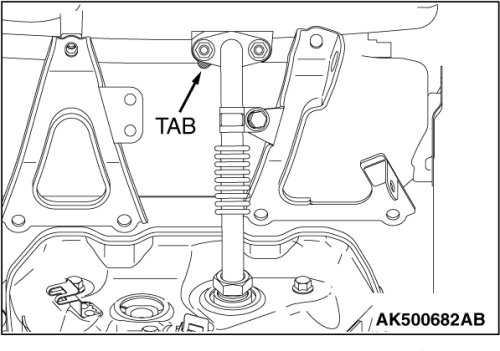

Install the exhaust gas recirculation pipe gasket so that the tab is positioned as shown in the illustration.

]]E[[

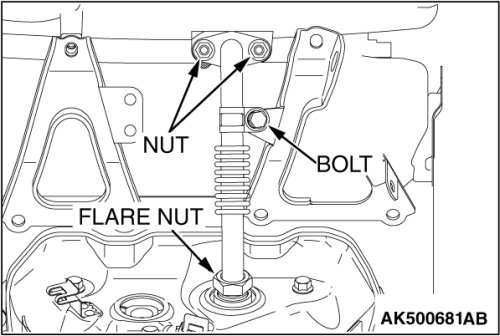

EXHAUST GAS RECIRCULATION PIPE INSTALLATION





1.
CAUTION:
Use care to prevent deforming the bellows of the exhaust gas recirculation pipe.

Tighten temporarily the flare nut of exhaust gas recirculation pipe and the nut as shown in the illustration.
2. Tighten each the flare nuts of exhaust gas recirculation pipe and the nut to the specified torque.
Tightening torque:

59± 10Nm (44± 7 ft-lb)[ FLARE NUT]
19± 3Nm (14± 2 ft-lb)[ NUT]
3. Tighten the bolt shown in the illustration to the specified torque.
Tightening torque: 19± 3Nm (14± 2 ft-lb)
