Ignition System Removal and Installation

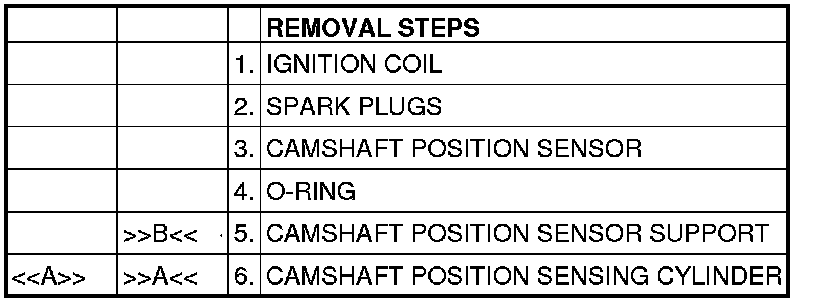

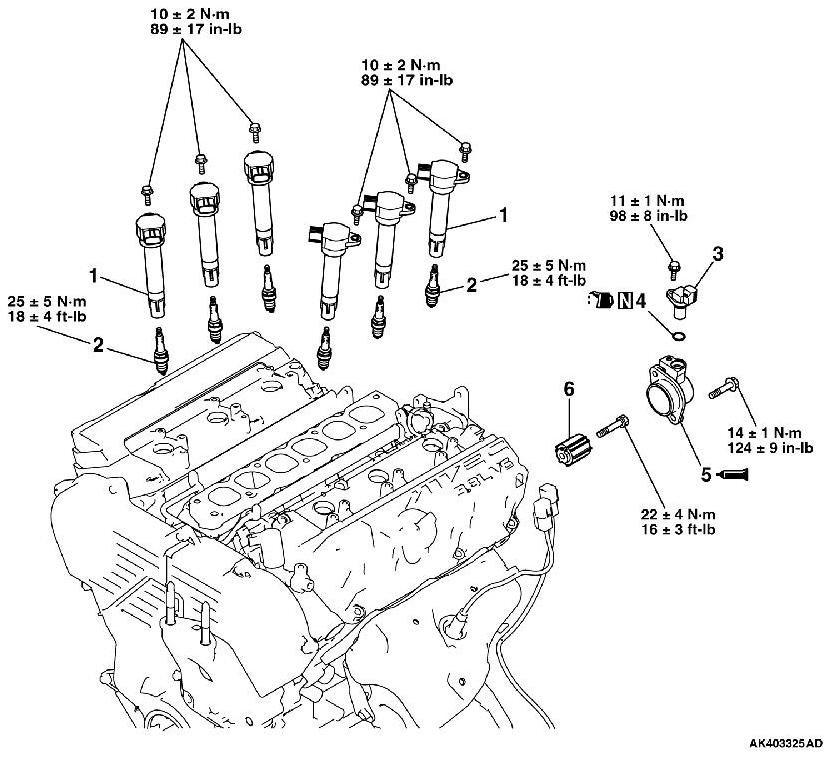

REMOVAL AND INSTALLATION

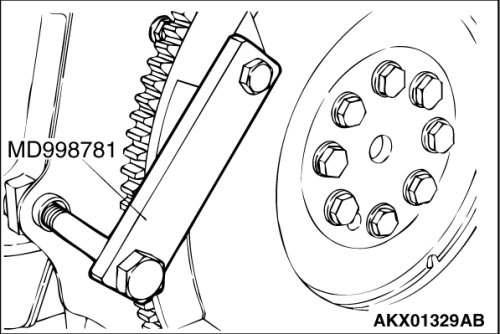

- MD998781: Flywheel Stopper

REMOVAL SERVICE POINT

[[A]]
CAMSHAFT POSITION SENSING CYLINDER REMOVAL





1. Using special tool MD998781, hold the drive plate.
2. Loosen the camshaft position sensing cylinder bolt.

INSTALLATION SERVICE POINT

]]A[[
CAMSHAFT POSITION SENSING CYLINDER INSTALLATION





1. Using special tool MD998781, hold the drive plate.
2. Tighten the camshaft position sensing cylinder bolt to the specified torque.
Tightening torque: 22± 4Nm (16± 3 ft-lb)


]]B[[
CAMSHAFT POSITION SENSOR SUPPORT INSTALLATION





Apply a 3 mm (0.12 inch) diameter bead of sealant (Three bond 1207F or equivalent) to the camshaft position sensor support.
