Generator and Drive Belt Removal and Installation

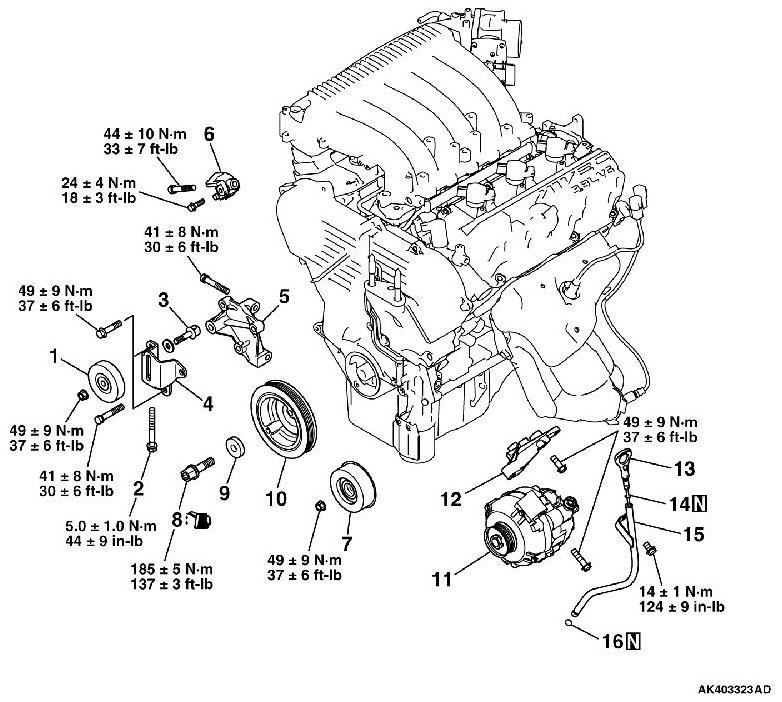

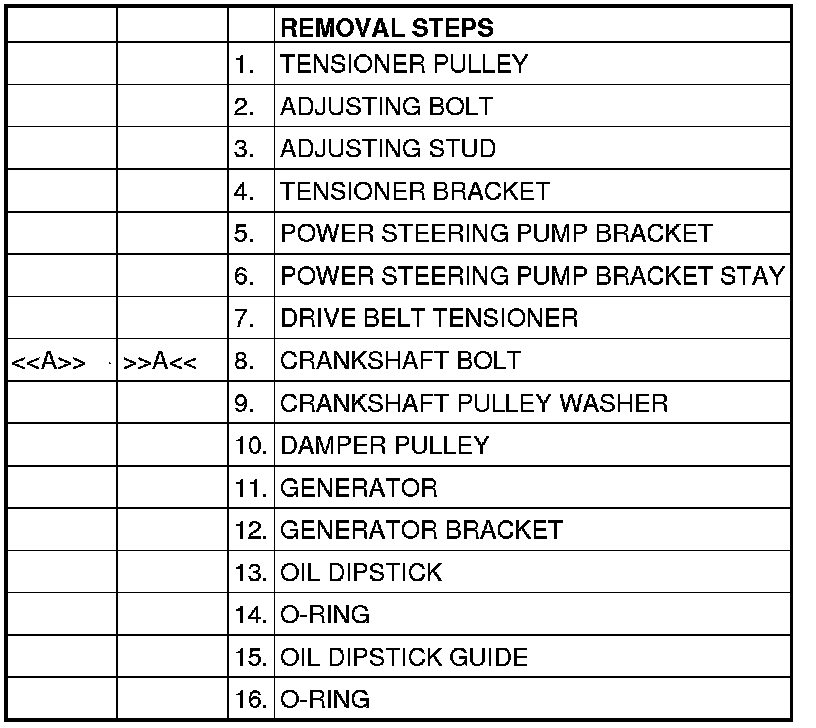

REMOVAL AND INSTALLATION









- MD998781: Flywheel Stopper

REMOVAL SERVICE POINT

[[A]]
CRANKSHAFT BOLT LOOSENING





1. Using special tool MD998781, hold the drive plate or flywheel.
2. Remove the crankshaft bolt.

INSTALLATION SERVICE POINT

]]A[[
CRANKSHAFT BOLT TIGHTENING





1. Using special tool MD998781, hold the drive plate or flywheel.





2. Using a rag, wipe dirt on the crankshaft thread hole and the crankshaft pulley washer.

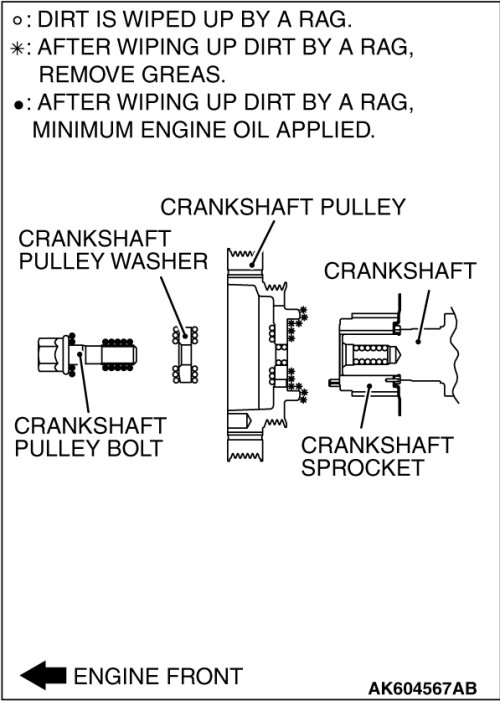

3. Using a rag, wipe dirt on the crankshaft pulley and then degrease the place specified in the illustration.
NOTE:
Perform degreasing to prevent the friction resistance from decreasing in the compressed area due to the residual oil.

4. Install the crankshaft pulley.
5. Apply the minimum amount of engine oil to the crankshaft bolt threads and the seating surface.
6. Turning the inside chamfer side of the crankshaft pulley washer toward the bolt head, install the crankshaft pulley washer to the crankshaft bolt.
7. Tighten the crankshaft bolt to the specified torque.
Tightening torque: 185± 5Nm (137± 3 ft-lb)
