Front Crankshaft Seal: Service and Repair

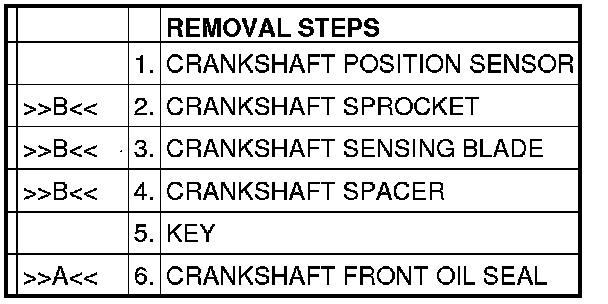

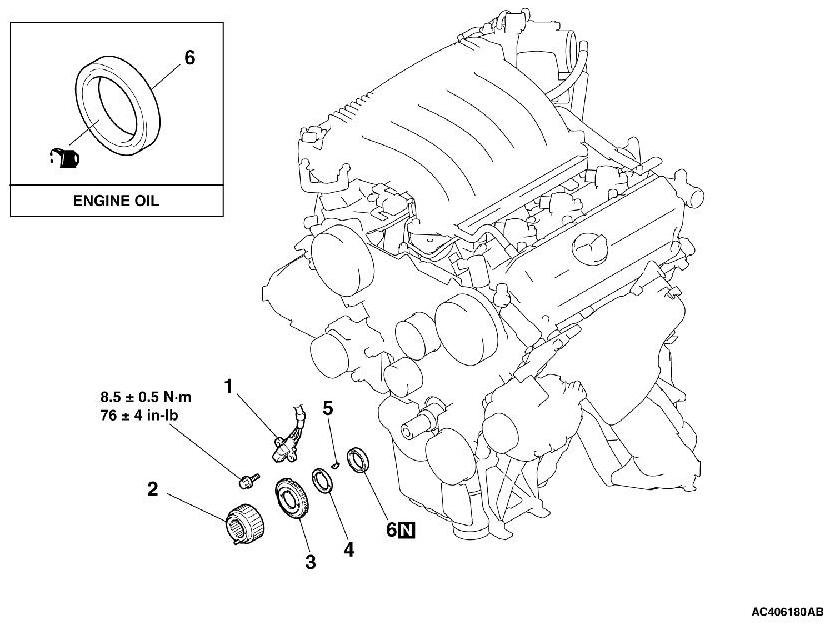

REMOVAL AND INSTALLATION [FRONT OIL SEAL]













- MD998717: Crankshaft Front Oil Seal Installer

INSTALLATION SERVICE POINTS

]]A[[ CRANKSHAFT FRONT OIL SEAL INSTALLATION

1. Apply a small amount of engine oil to the oil seal lip and then insert the o-ring.

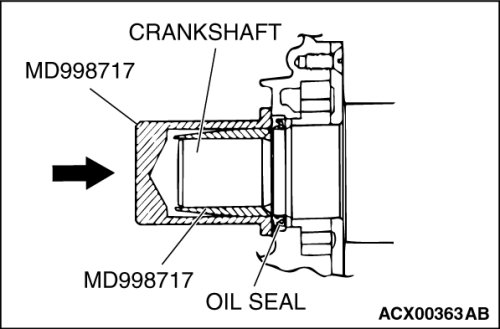

2. Using special tool MD998717, tap the oil seal into the front case.

]]B[[ CRANKSHAFT SPACER / CRANKSHAFT SENSING BLADE / CRANKSHAFT SPROCKET INSTALLATION

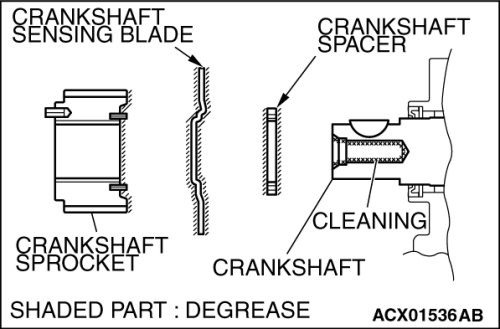

To prevent the crankshaft pulley mounting bolt from loosening, degrease or clean the crankshaft, the crankshaft spacer, the crankshaft sensing blade and the crankshaft at the shown positions.
