Intake Manifold Plenum Removal and Installation

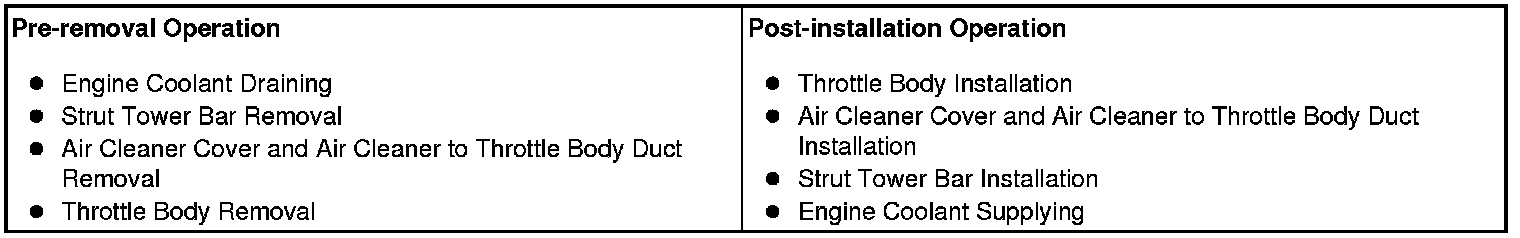

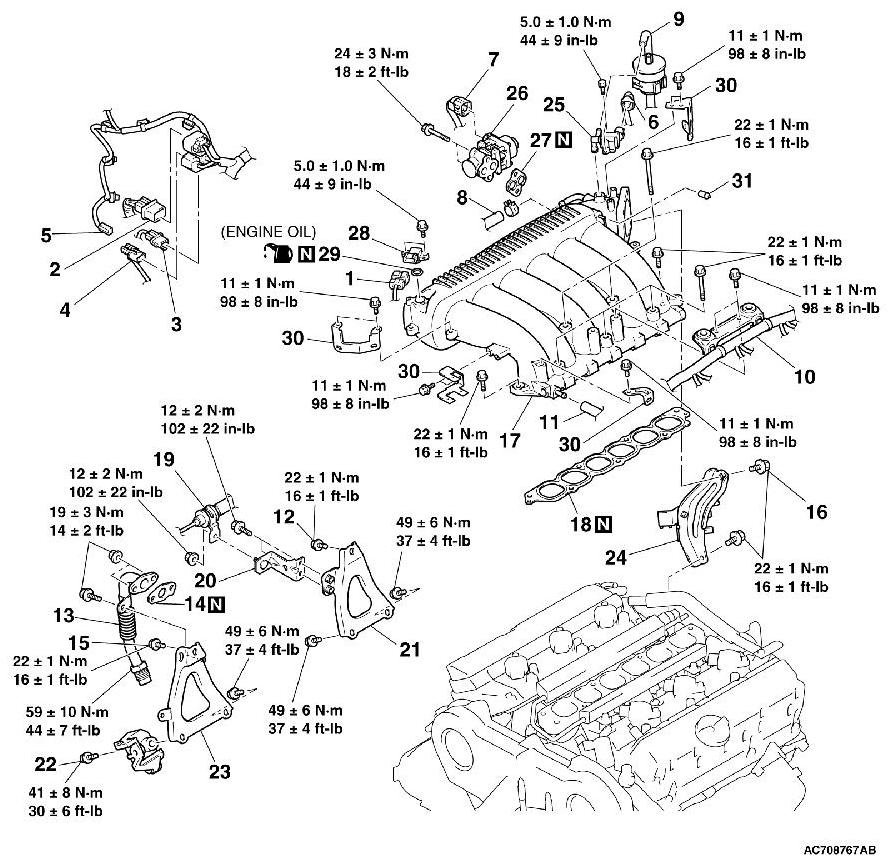

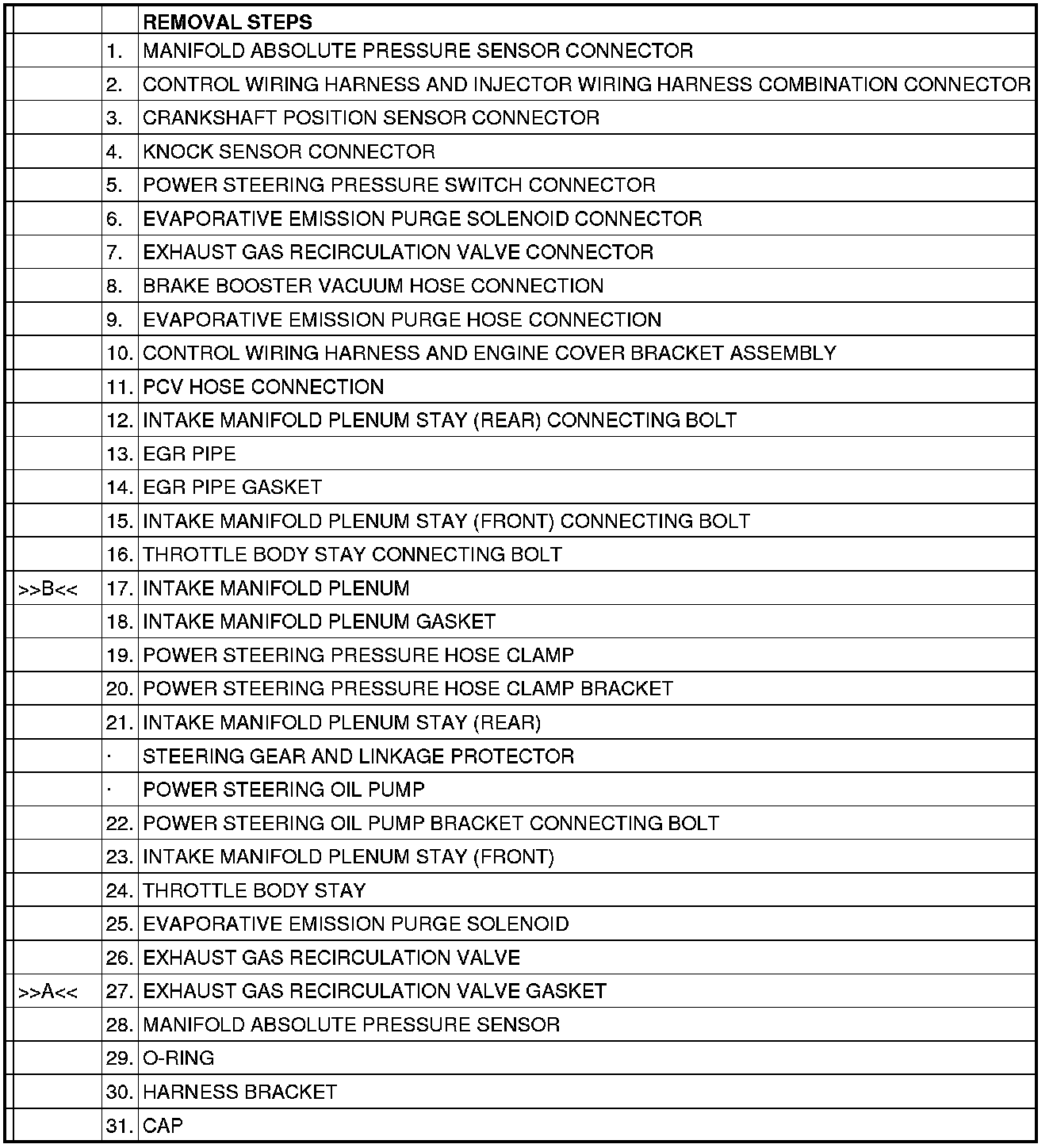

REMOVAL AND INSTALLATION [3.8L ENGINE]













- MD998412: Guide

INSTALLATION SERVICE POINTS

]]A[[ EXHAUST GAS RECIRCULATION VALVE GASKET INSTALLATION





Install the exhaust gas recirculation valve gasket as shown in the illustration.

]]B[[ INTAKE MANIFOLD PLENUM INSTALLATION

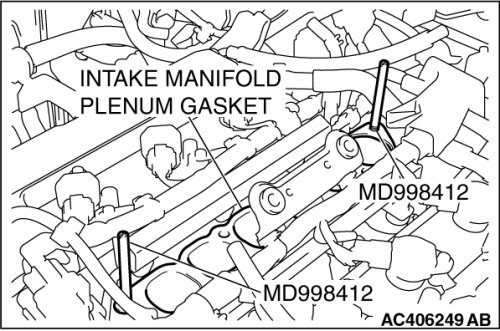

Use special tool MD998412 to install the intake manifold plenum.
