Home >> Mitsubishi >> 2012 >> Eclipse Spyder V6-3.8L (6G75) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> M/T

M/T

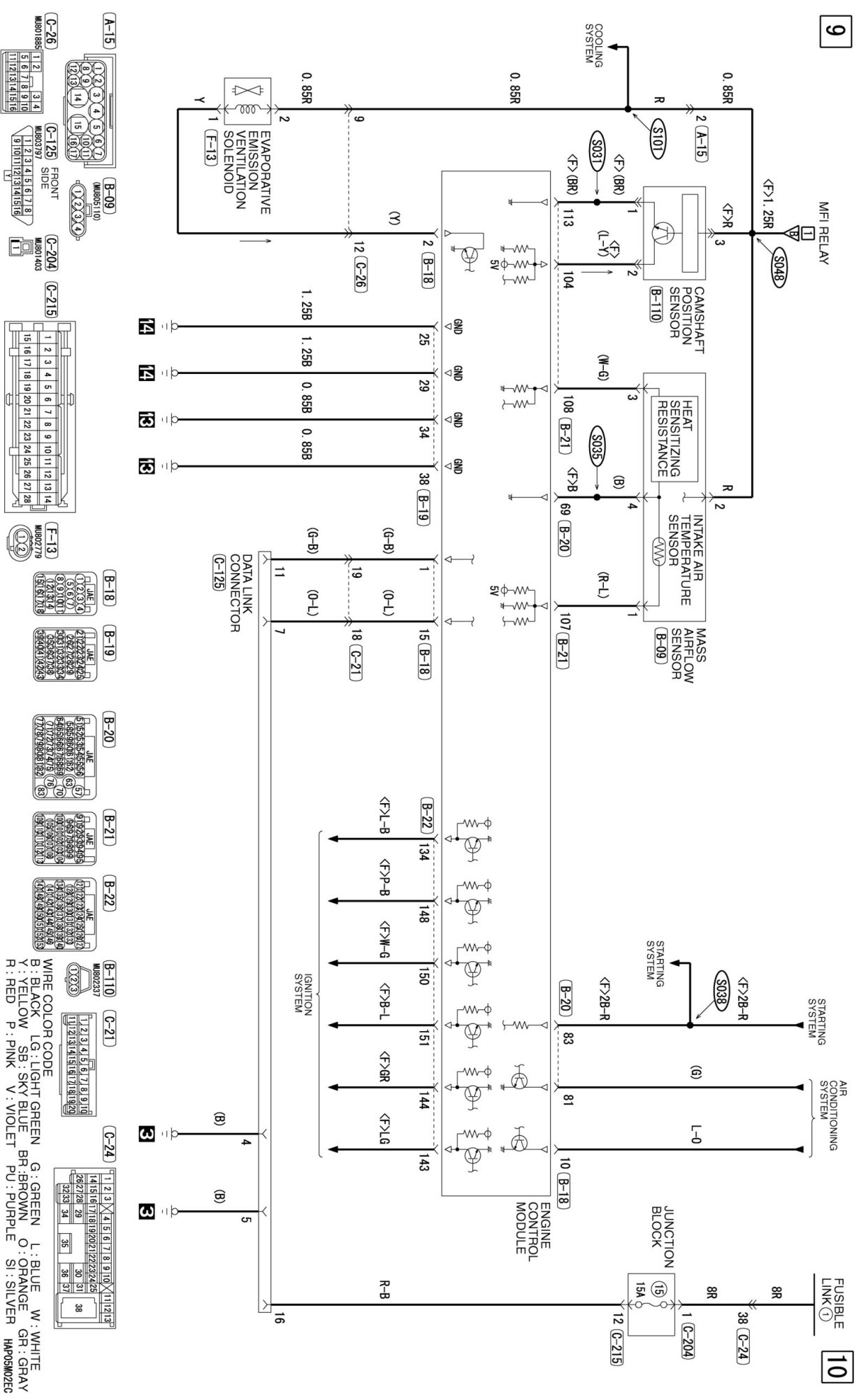

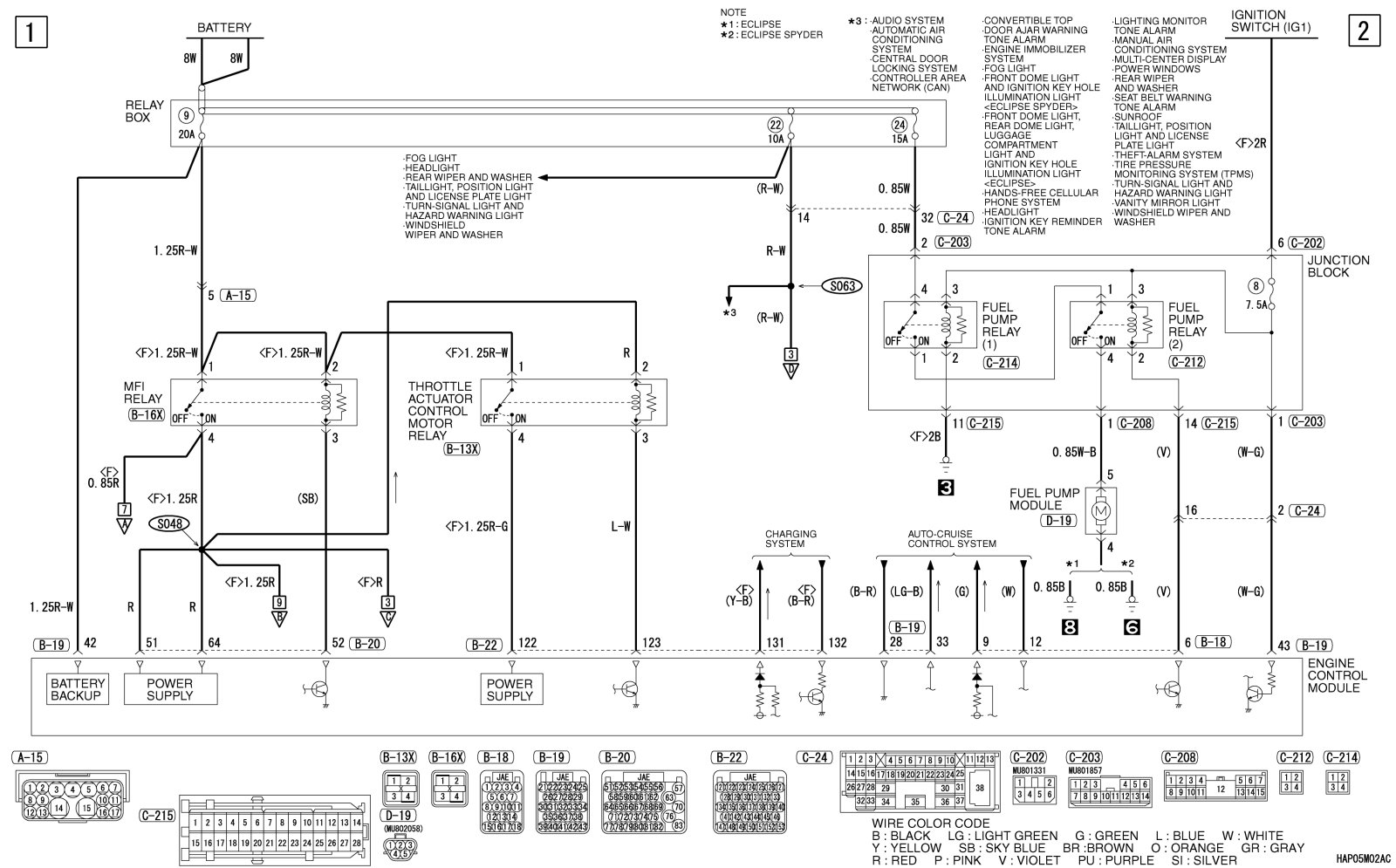

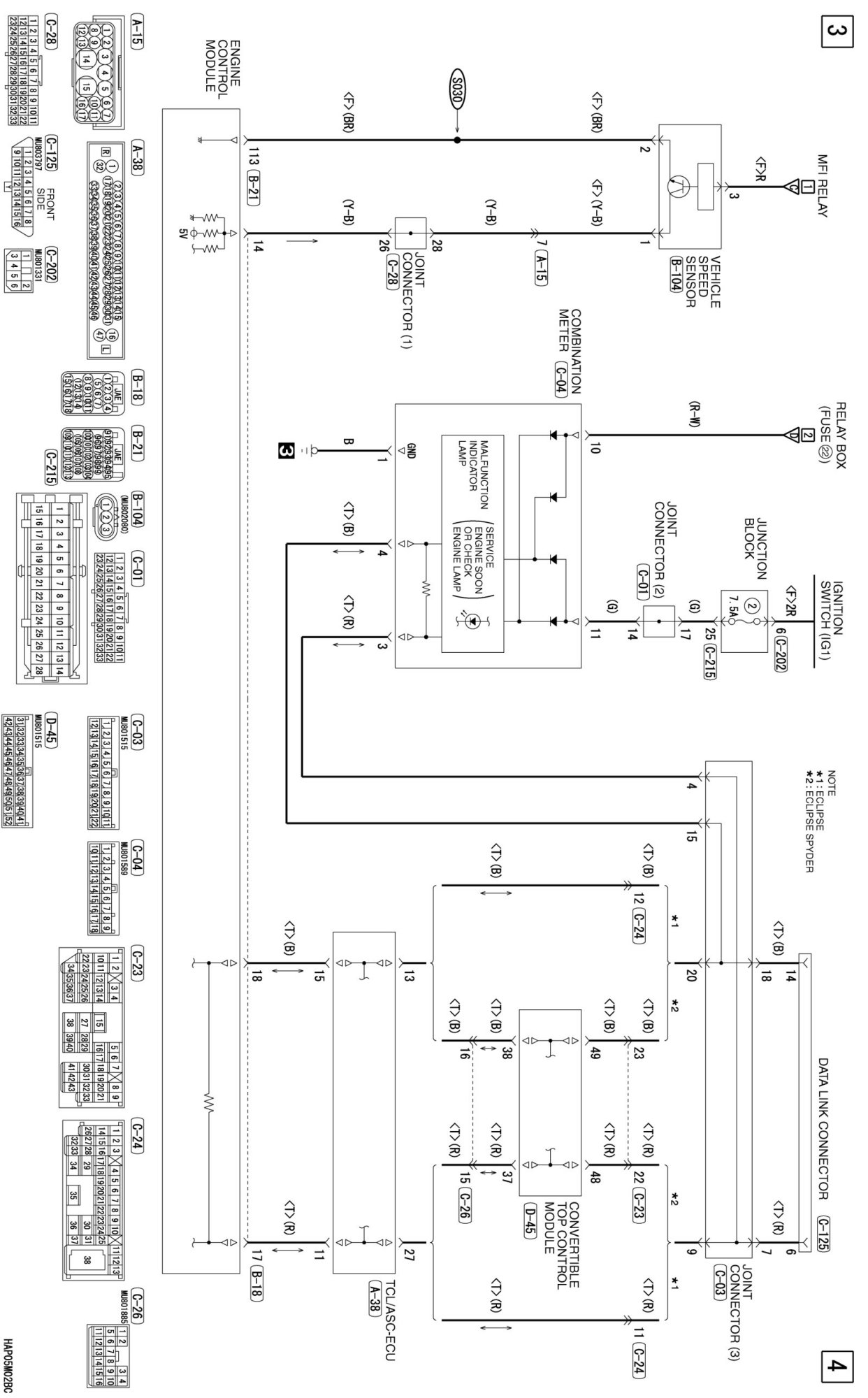

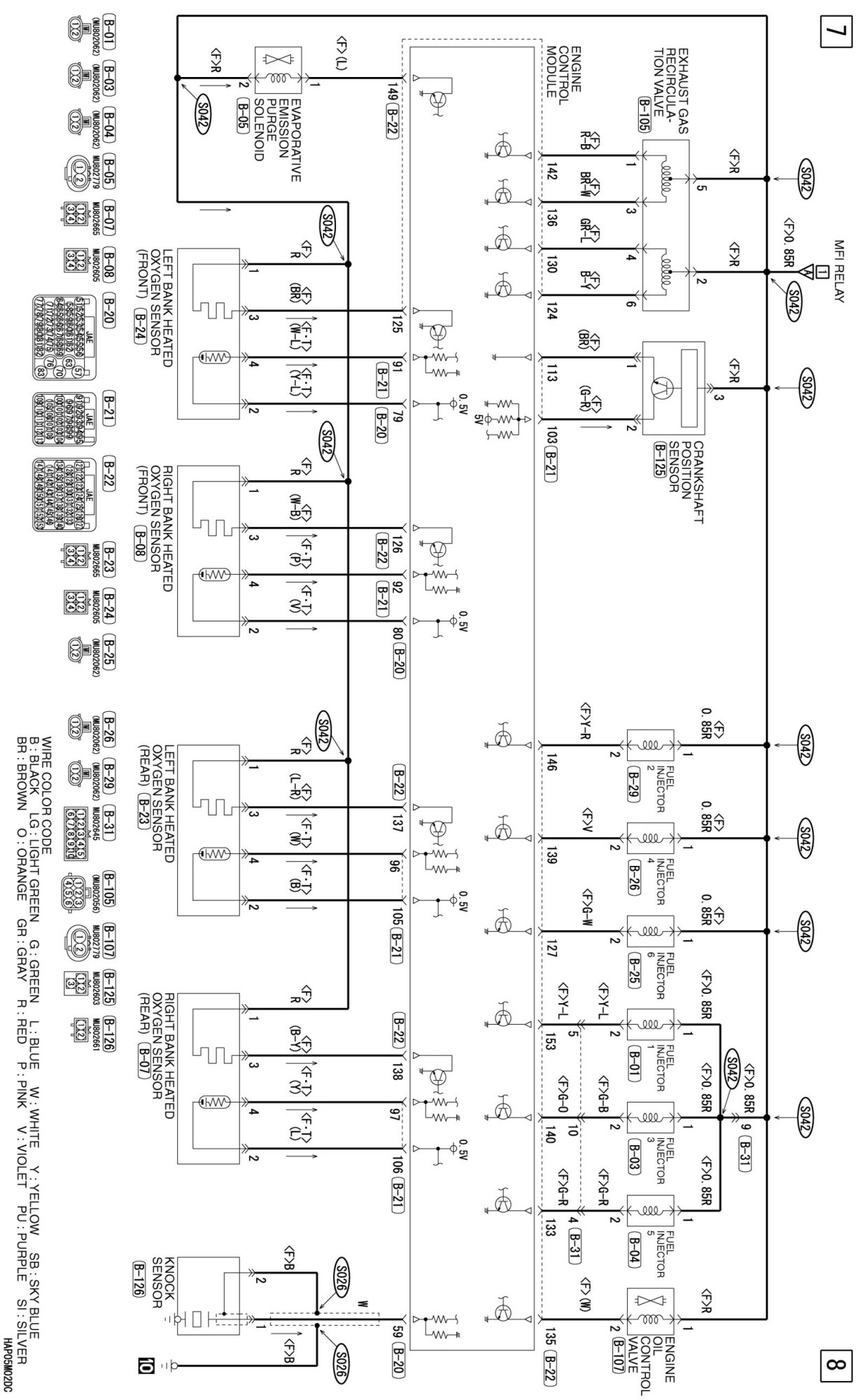

MULTIPORT FUEL INJECTION
(MFI) SYSTEM [3.8L ENGINE-M/T]
