Home >> Mitsubishi >> 2012 >> Eclipse Spyder V6-3.8L (6G75) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Immobilizer System >> Automatic Transmission

Automatic Transmission

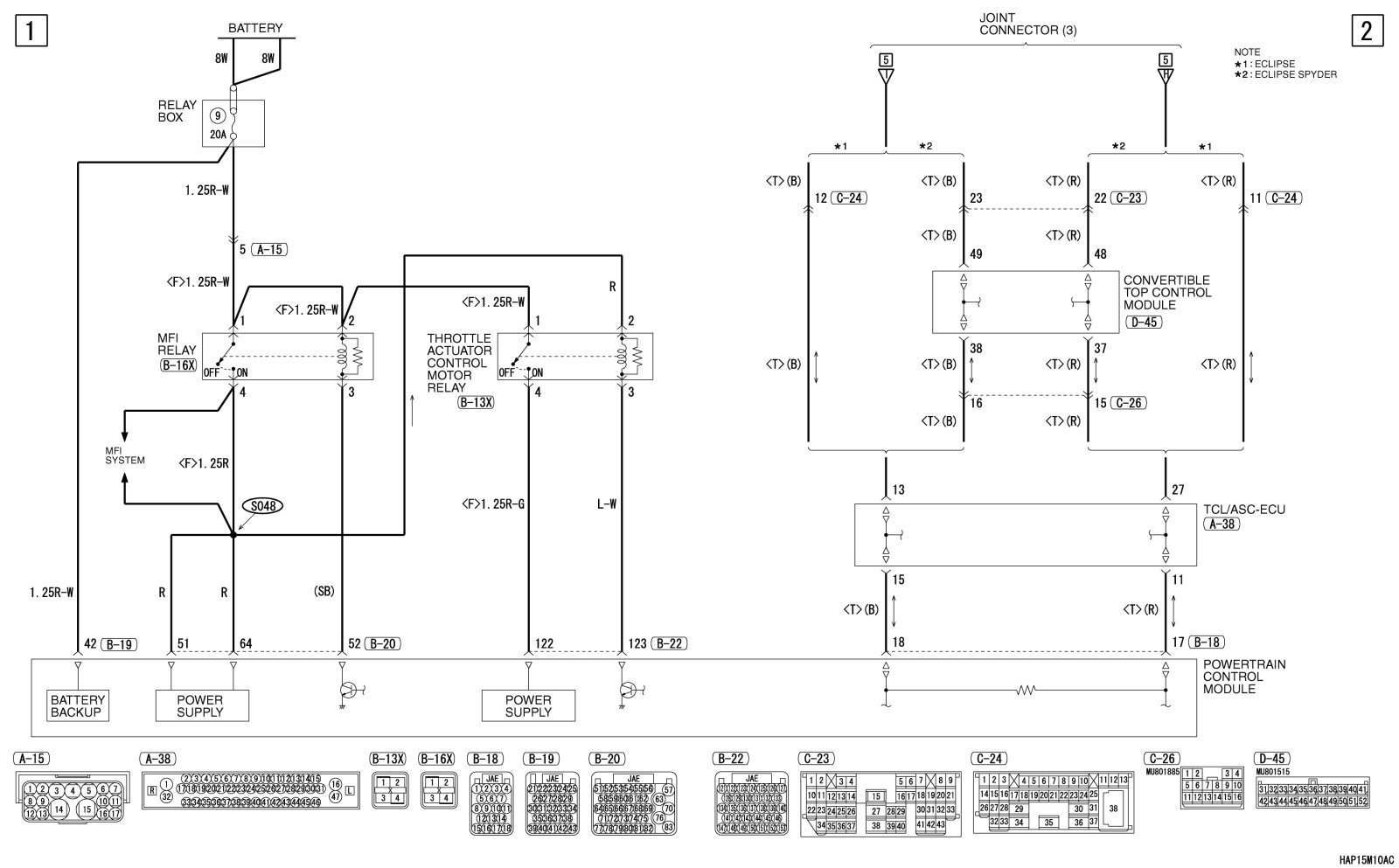

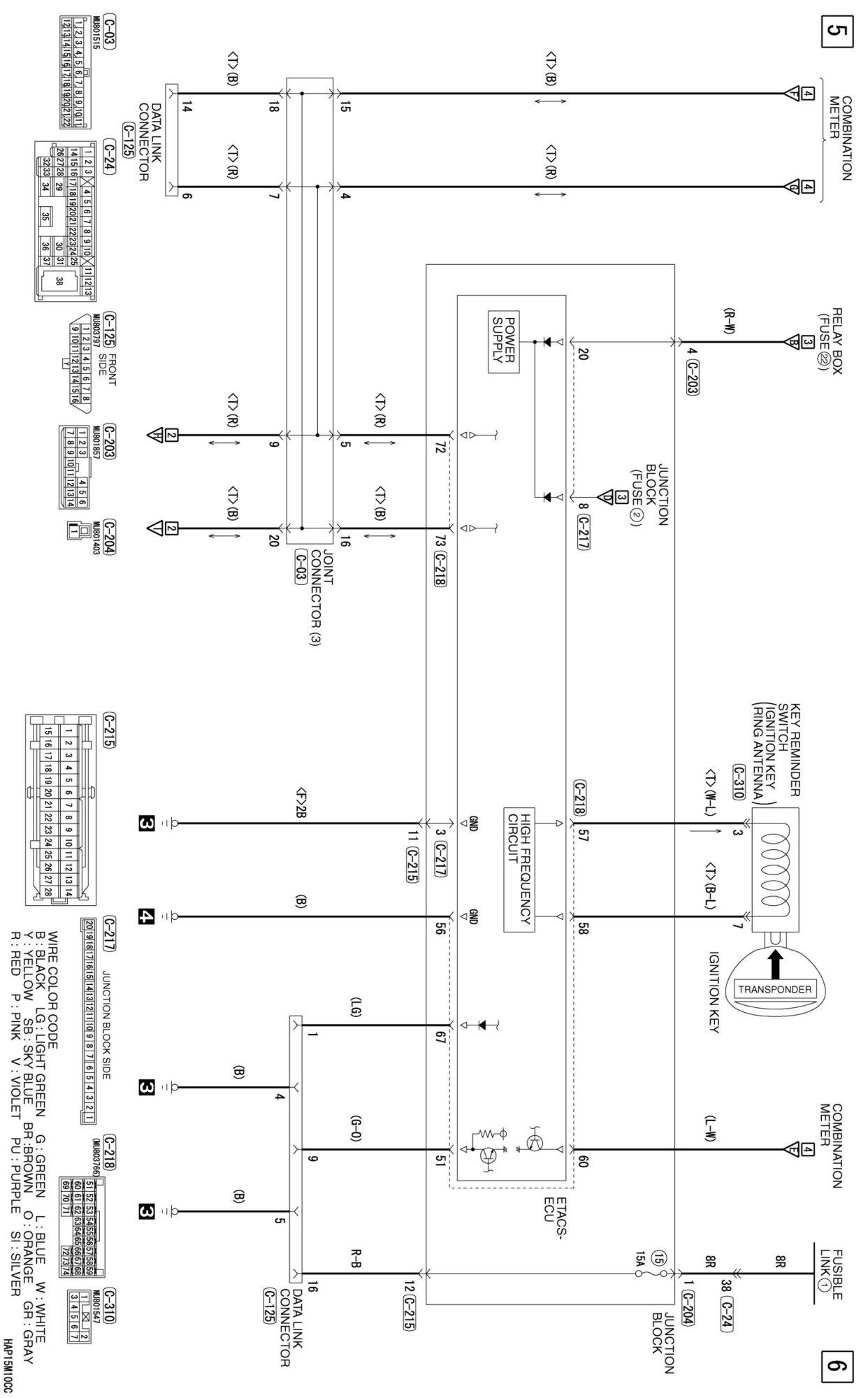

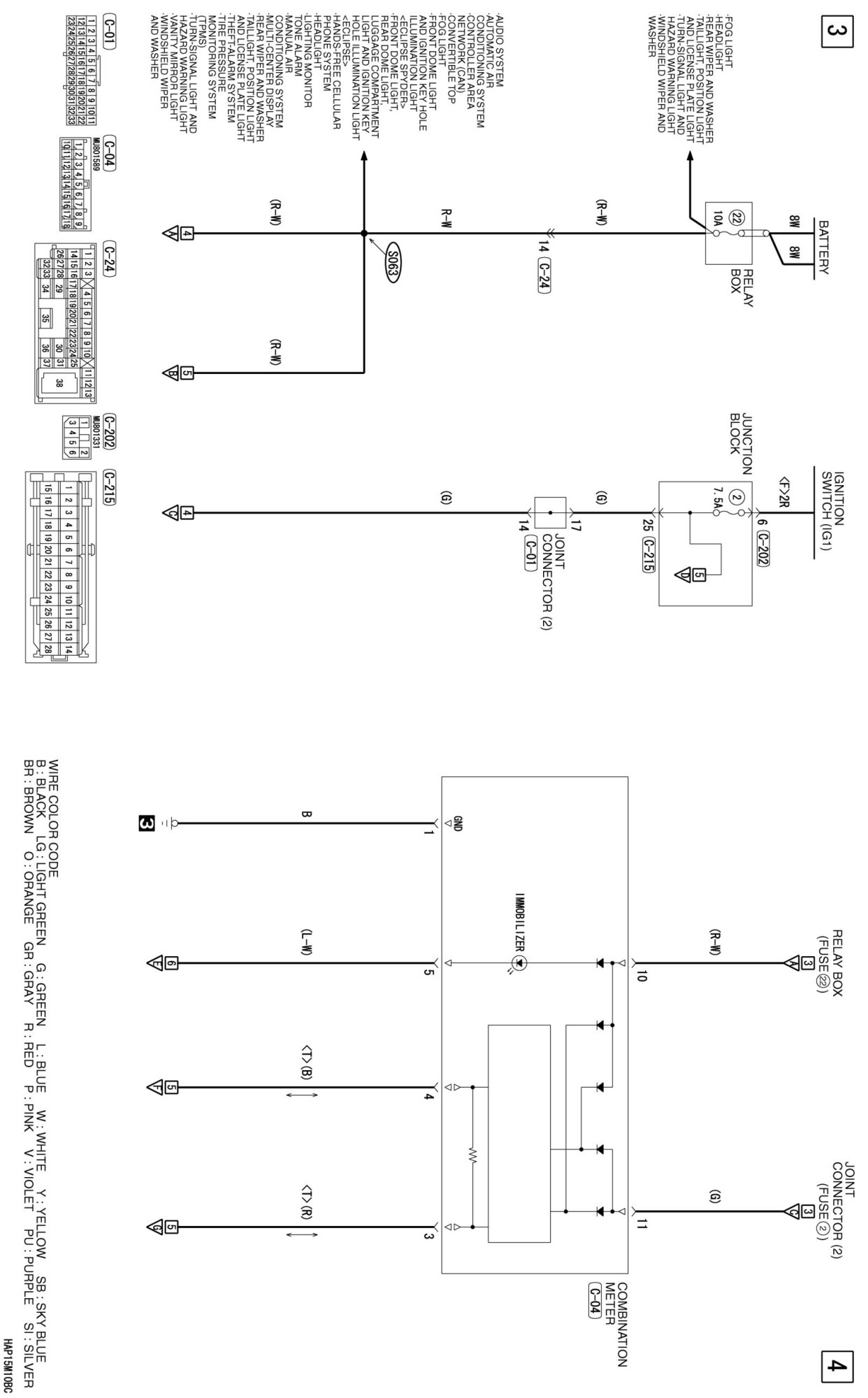

ENGINE IMMOBILIZER SYSTEM [3.8L ENGINE-A/T]
