Windshield Washer Fluid Ejection Check




WINDSHIELD WASHER FLUID EJECTION CHECK

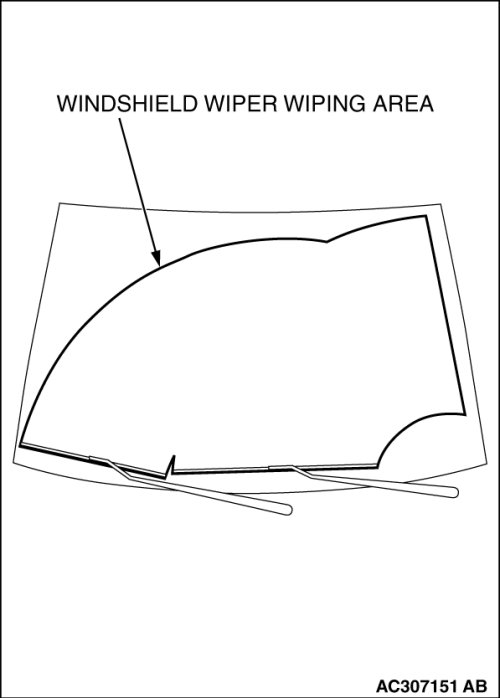

The windshield washer nozzle aiming cannot be adjusted. If the washer nozzles do not spray washer fluid within the windshield wiper wiping area, check the nozzles as follows:
1. Check that the windshield washer nozzles are fitted on the hood correctly, and reinstall them if necessary.
2. If the windshield washer nozzles are damaged, replace them (Refer to Windshield Washer Removal and Installation).
