Home >> Mitsubishi >> 2012 >> Eclipse Spyder L4-2.4L (4G69) >> Repair and Diagnosis >> Wiper and Washer Systems >> Diagrams >> Electrical Diagrams >> Rear Wiper and Washer

Rear Wiper and Washer

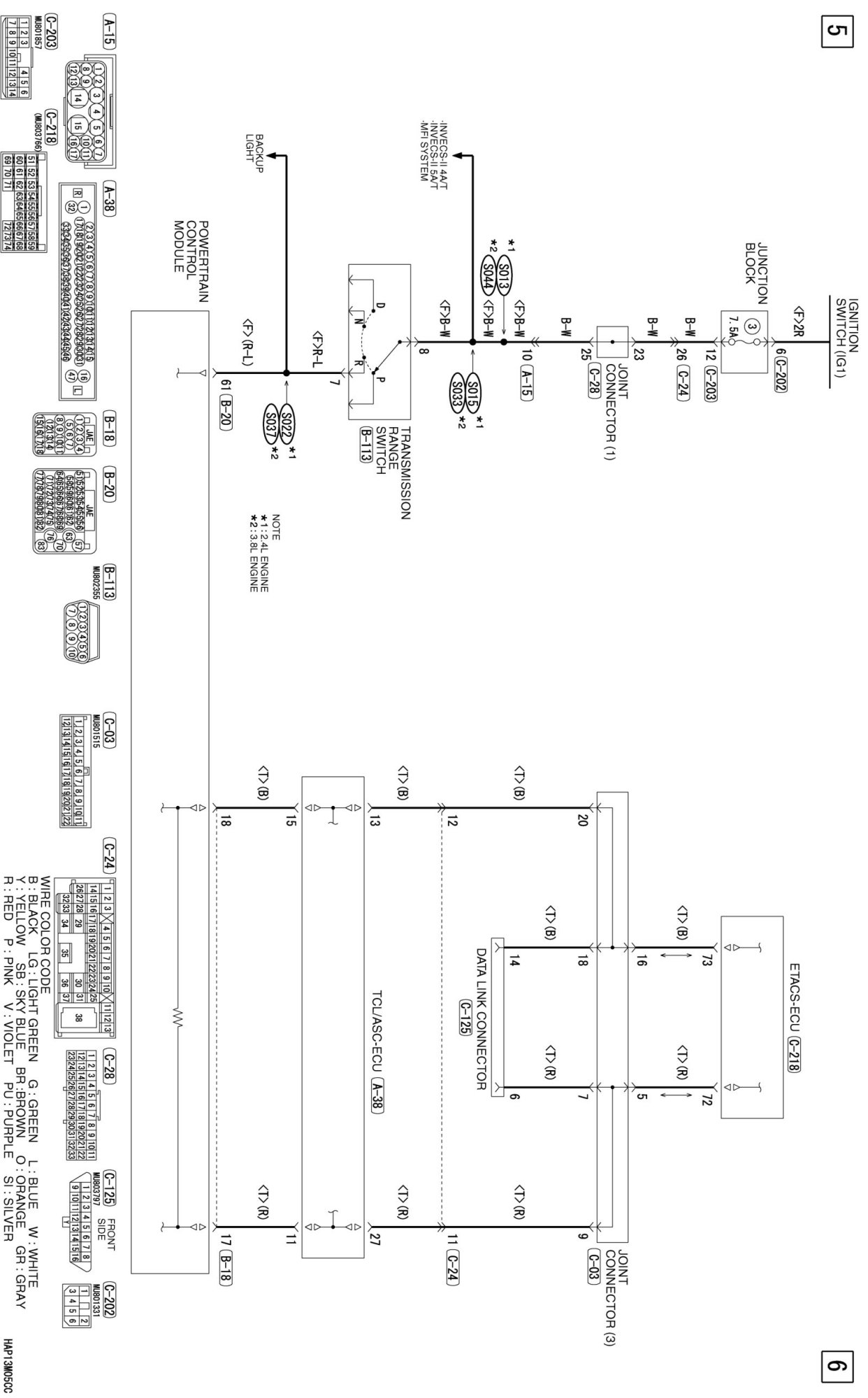

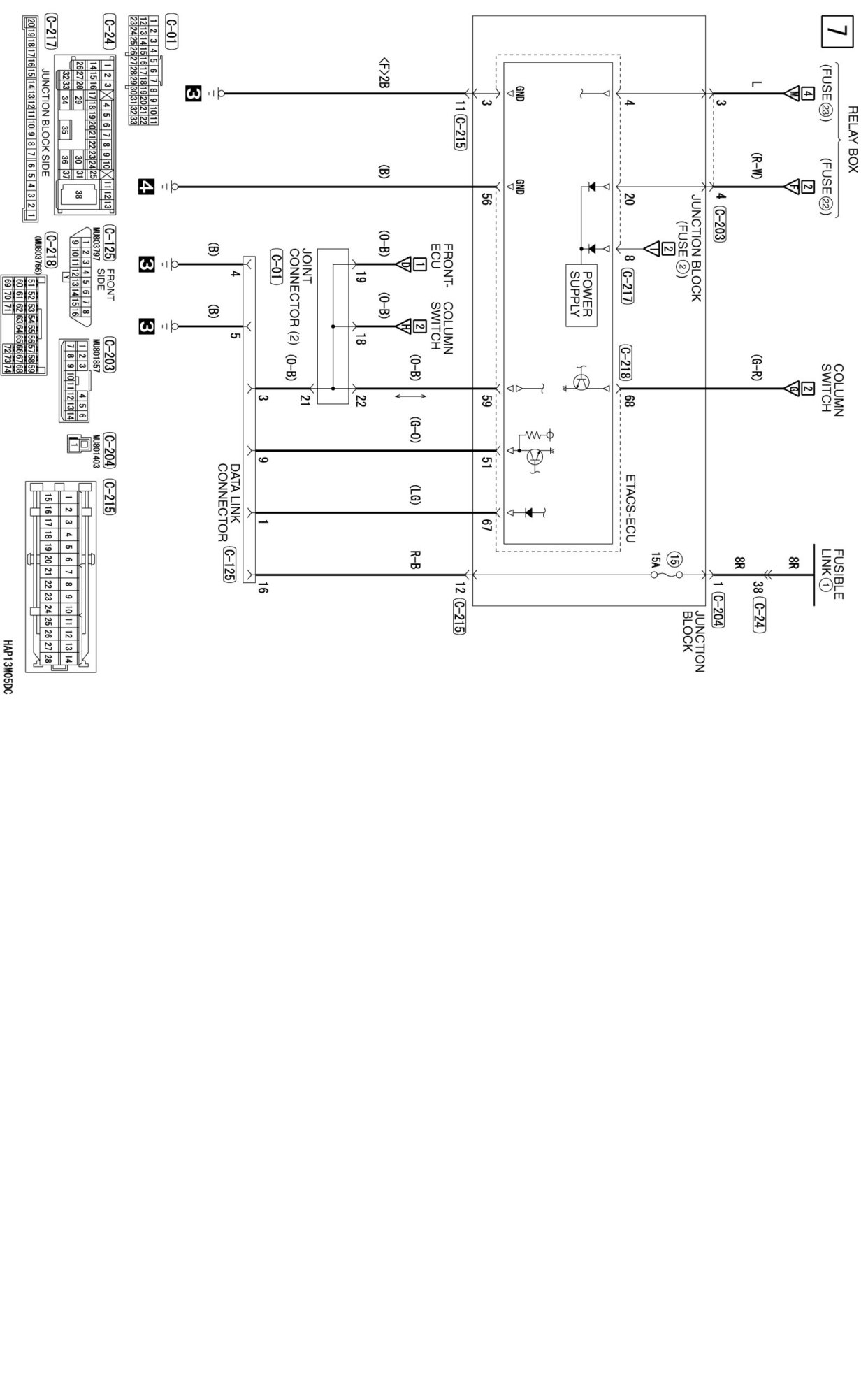

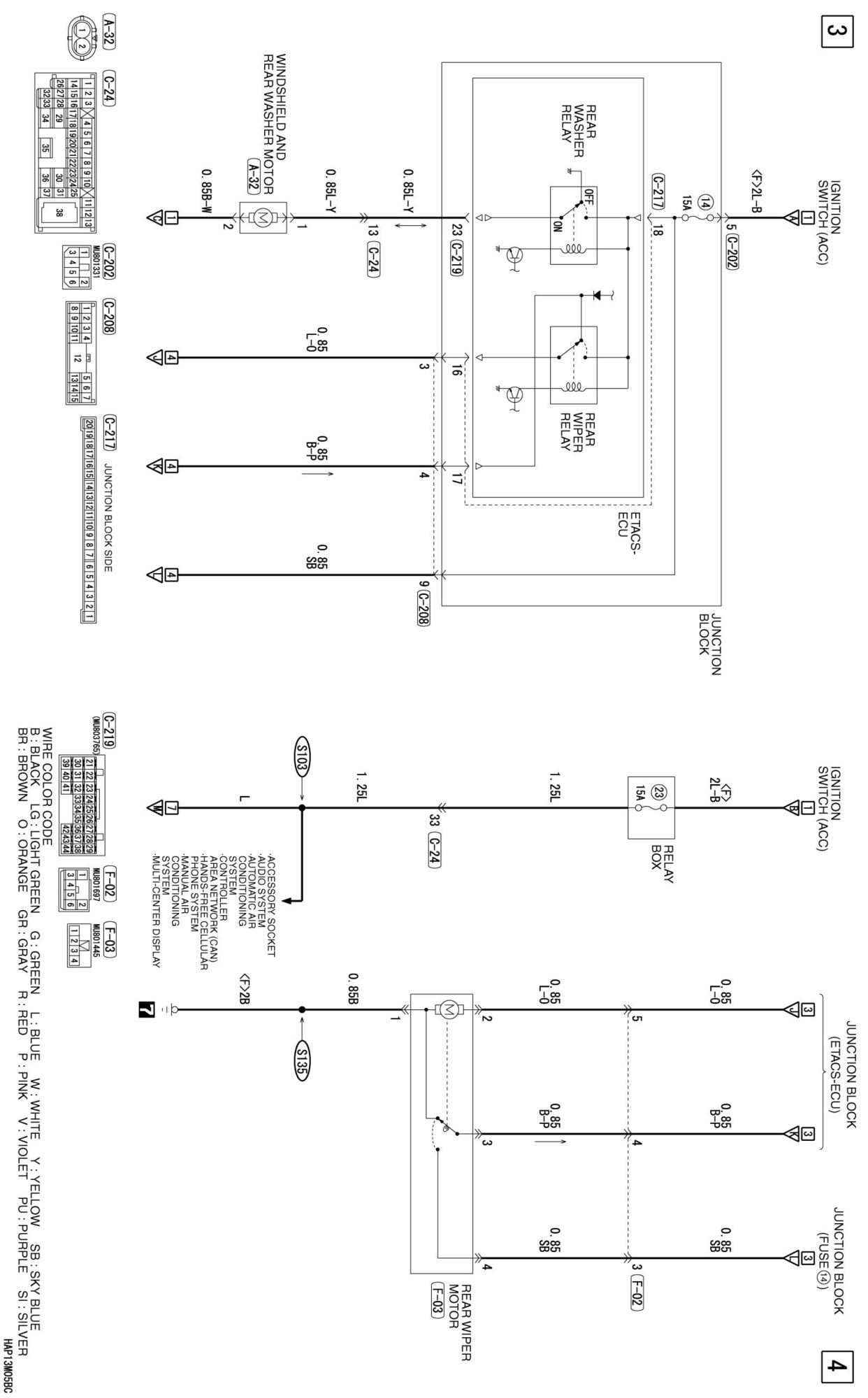

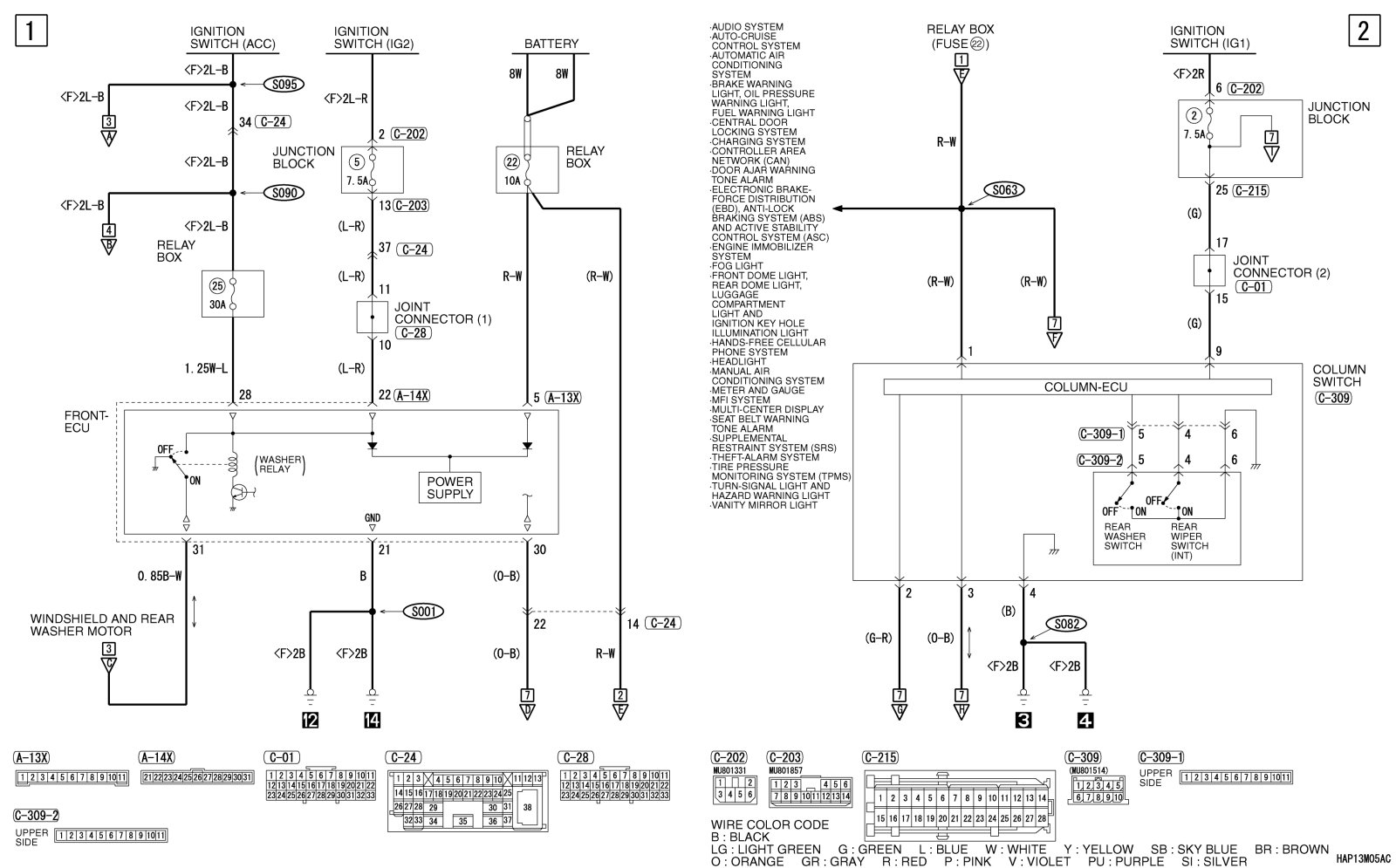

REAR WIPER AND WASHER [A/T]
